Front over-positioning cutting: The front over-positioning cutting process solves the problem of the last workpiece being unable to be cut due to the downward pressure on the material caused by single-chuck clamping, ensuring more stable cutting.
| Effective Cutting Length of Pipe | 374" | 9,499.6 mm |
| Wattage | 6,000 W | 6,000 W |
| Laser power (Optional) | 1500W-6000W | 1500W-6000W |
| Clamping Range | Round pipe Φ20-240mm; Square pipe 口20-240mm | Round pipe Φ20-240mm; Square pipe 口20-240mm |
| Max. Rotation Rate | 100 r/min. | 100 r/min. |
| Single Pipe Load-Bearing | 661.3 lb | 300 kg |
| Chuck Structure | 240 Pneumatic Chuck/280 Pneumatic Chuck | 240 Pneumatic Chuck/280 Pneumatic Chuck |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts

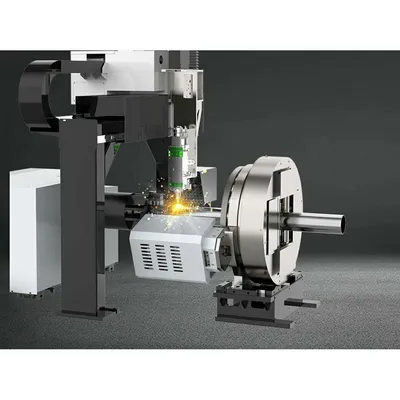

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
OPTIONAL ITEMS - CALL FOR PRICE:
Fully automatic loading machine
Semi-automatic loading machine
Unloading rack
Bevel cutting head
