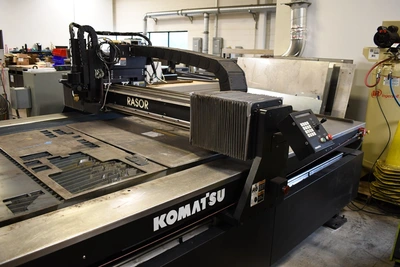

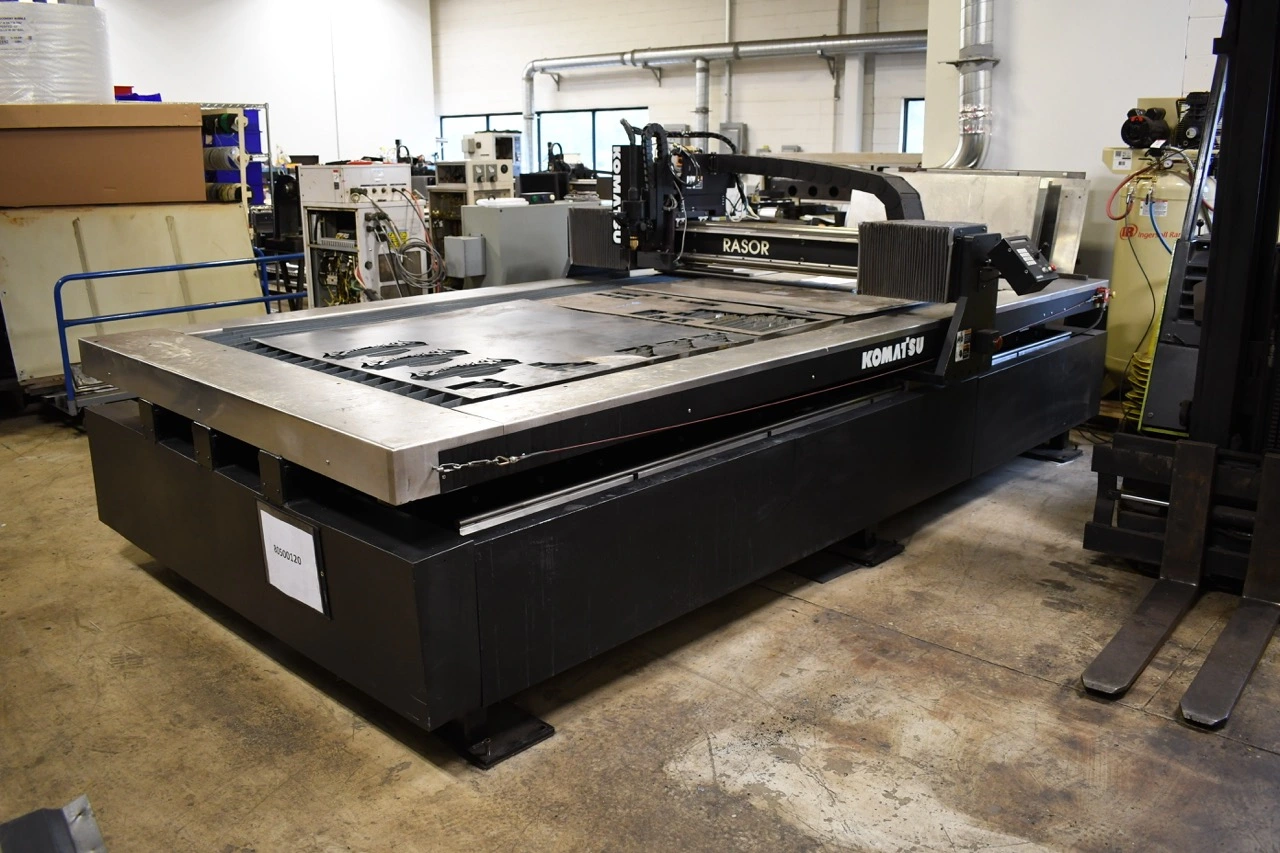

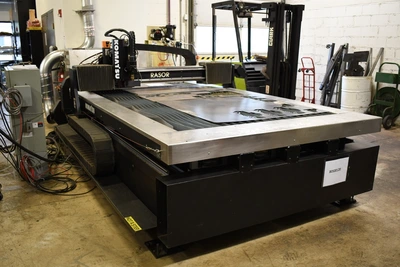

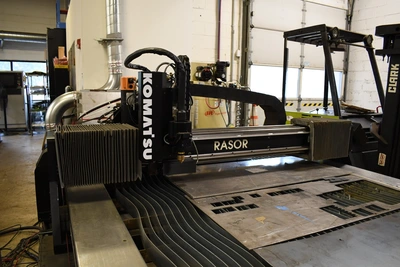

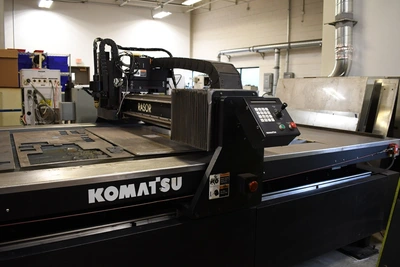

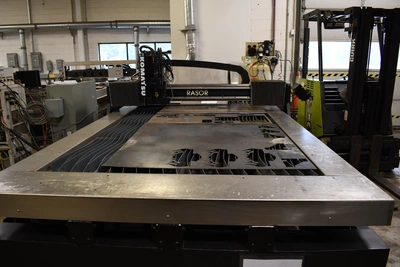

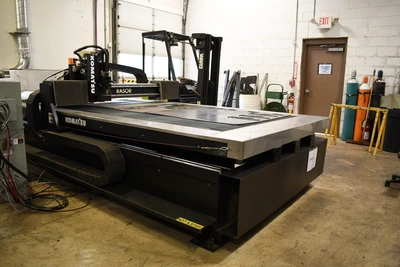

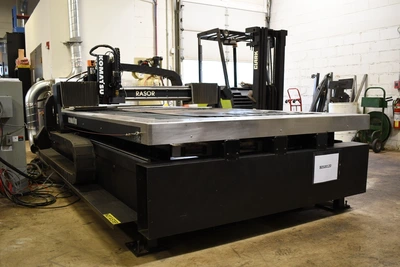

USED 1999 KOMATSU RASOR KCR1251

Capacity: 10‘ x 5‘

Maximum Cutting Width: 5′
Maximum Cutting Length: 10′
Mild Steel Capacity: 0.062′′-1.0′′
Aluminum Capacity: 0.062′′-0.5′′
Stainless Steel Capacity: 0.028′′-0.5′′
Minimum Kerf Width: 0.06′′
Cutting Speed Range: 30-300 IPM
Rapid Traverse Speed: 1000 IPM
Variable Cutting Current: 3-120 Amps.
Plasma Power Unit: Komatsu G9120-I
Plasma Power Poser Requirements: 230 volt/3 phase 50/60Hz –
27.0 KVA

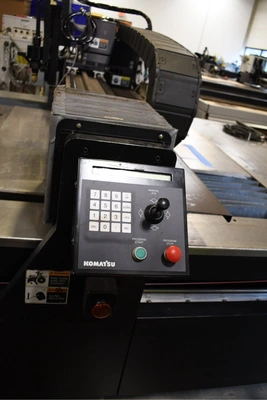

Control Unit: LCD Display, Alpha-Numeric, Keypad, Joystick
Machine (CNC) Power Requirements: 120 volt/single phase,
50/60 Hz – 2.4 KVA
Torch Height Control: Komatsu control with setup probe
Machine Weight: 4800 Lbs.
Floor Space Requirements: 16′ x 30′
Equipped With:
Komatsu G9120-I Plasma Power Unit
Rasor Server for Windows – DNC Software
PathMaster – part drawing software, DXF import
Nesting Software, with permanent key
Consumable starter Kit
Torch height control with setup probe
Hemispherical collision detection system
Bevel angle +/- 2 degrees
Installation and Training
Komatsu – 90 day warranty
