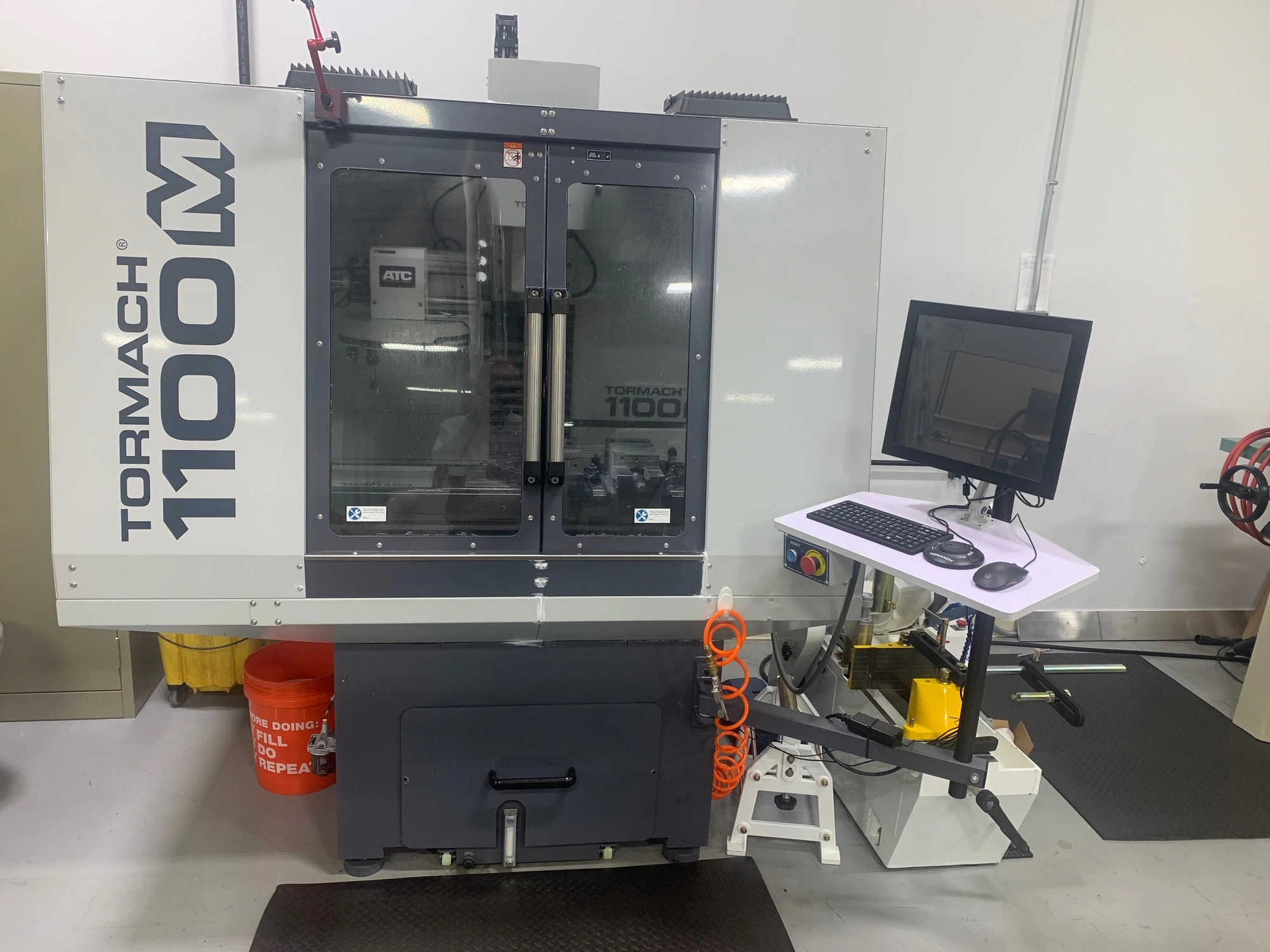

Tormach 1100M Vertical Machining Center, New in 2019
| X-Axis | 18" | 457.2 mm |
| Y-Axis | 11" | 279.4 mm |
| Z-Axis | 16.25" | 412.75 mm |
| Power | 2 hp | 1.5 kW |
| RPM | 7,500 RPM | 7,500 RPM |
| # ATC | 12 | 12 |
| Taper | R8 | R8 |
| Table-W | 9.5" | 241.3 mm |
| Table-L | 34" | 863.6 mm |
| # Axis | 3 | 3 |
| Control | CNC (PathPilot) | CNC (PathPilot) |
| Dimensions | 69" x 56.5" x 96" | 69" x 56.5" x 96" |
| Weight | 1,600 lbs | 1,600 lbs |
General Specifications:
X-Axis Travel: 18" (457 mm)
Y-Axis Travel: 11" (279 mm)
Z-Axis Travel: 16.25" (413 mm)
Table Size: 34" x 9.5"
Table Weight: 500 lbs
Spindle Speed: 7,500 RPM
Spindle Power: 2HP
Spindle Taper: R8
Tool Positions: 12
Feedrates (X,Y / Z): 110 IPM / 90 IPM
Spindle Nose to Table: 18"
Spindle Centerline to Machine Column: 11"
Machine Dimensions: 69" x 56.5" x 96"
Machine Weight: 1,600 lbs
Pathfinder CNC Control
