Equipped With

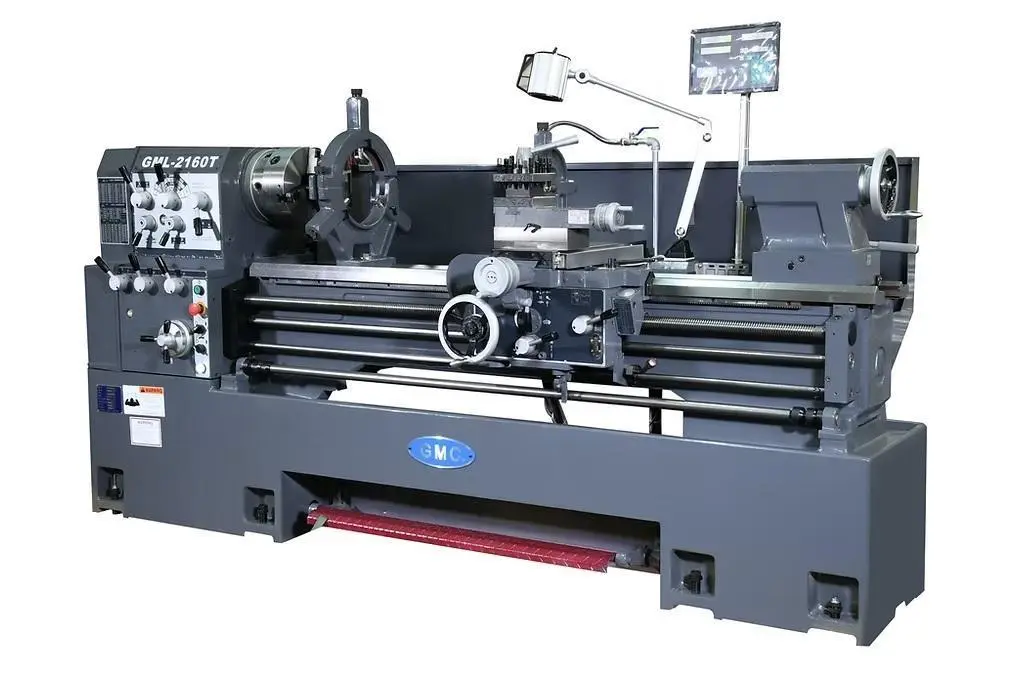

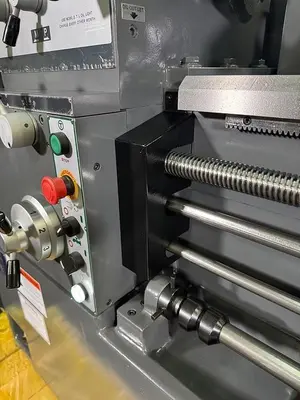

NEW 21" x 60" GMC MODEL GML-2160T PRECISION ENGINE LATHE
Made in Taiwan-100% made in Taiwan, by top manufacturer with very high level of quality
1 year industrial warranty for parts for all Taiwan lathes
One piece solid casting base, Meehanite high performance cast iron
Machine bed is made of Meehanite casting – high performance cast iron
ISO 9001 certified
Large spindle bore 3-1/8”
Heavy Duty spindle D1-8
Heavy Duty guideway width 12”

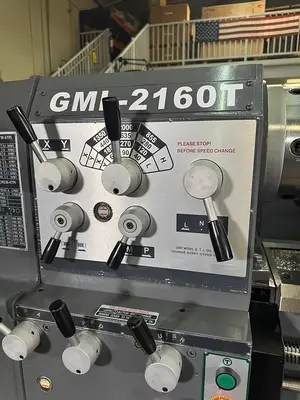

Spindle speeds from 40-2,000 rpm, 12 speeds
Threading and feeding rate change without changing gears
Spindle is balanced, hardened and precision ground
Spindle is supported at 3-point by high precision bearings
All gears and shafts are hardened and precision ground
Guideways induction hardened and precision ground
Automatic lubrication system in headstock and feed box

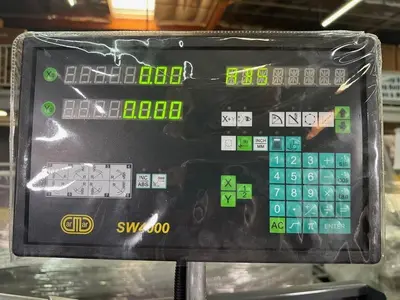

Free CARMAR DRO, installed
Automatic kick-out longitudinal carriage stop system
10” 3-jaw chuck with top reversible jaws, direct mount
16” Face plate

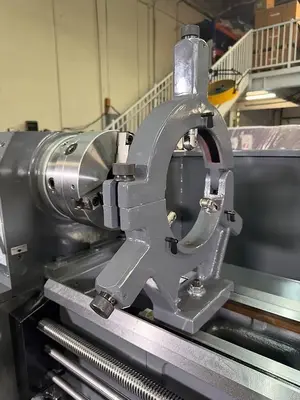

9” steady rest with roller jaws
4” follow rest with roller jaws
Removeable gap
4-way tools post
Foot brake
LED Work light
coolant system

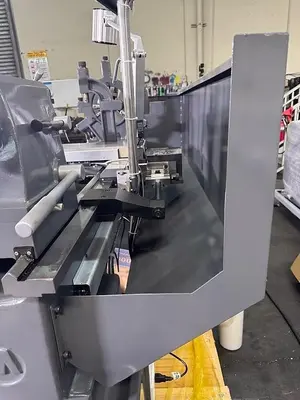

full length rear splash guard
Dead centers
Thread chasing dial
Reducing sleeve MT6/MT5 for spindle
Tool box and leveling pads
Max. swing over bed
20-1/2” 20-1/2”
Max. length of workpiece
60"
Max. swing over cross slide
13” 13”
Max. Swing in gap
29-1/8” 29-1/8”
Width of Bed
12”
Effective length in gap to spindle
6”
Effective length in gap to chuck jaws
3-1/2”
Spindle bore
3-1/8” , D1-8
Taper of spindle center
M.T.# 6 w/ reducing sleeve MT6/MT5
Spindle speeds
40-2,000 rpm / 12 steps
Longitudinal feeds
0.002-0.03 IPR, 35 kinds
Cross feeds
0.0008-0.011 IPR, 35 kinds
Inch threads
4-56 TPI, 36 kinds
Metric threads
0.5-7.0 mm ,17 kinds
Max. travel of top slide
5”
Max. travel of cross slide
11”
Spindle length w/o chuck
17”
Leadscrew length X TPI
1-1/4” x 4 TPI

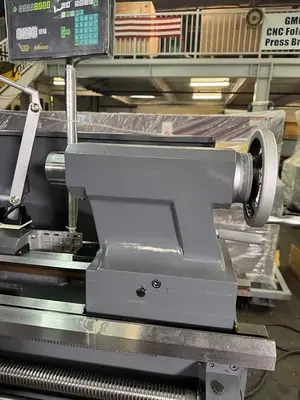

Diameter of tailstock quill
2-3/4”
Max. travel of tailstock quill
5-7/8”
Taper of tailstock quill center
M.T. #4
Main motor
7-1/2HP, 220V or 440V, 3 phase
Amperage Draw
220V/ 35A , 440V/20A
Coolant pump motor
1/8 HP, 220V, or 440V, 3 phase, 2Gal coolant
Machine Oil
# 30 weight Machine oil, 5 Gallons
Machine weight, approx. LBS
4,150 LBS
Overall dimensions, LxWxH
Shipping dimensions: LxWxH
105” x 41” x 59”
110” x 38” x 66”
