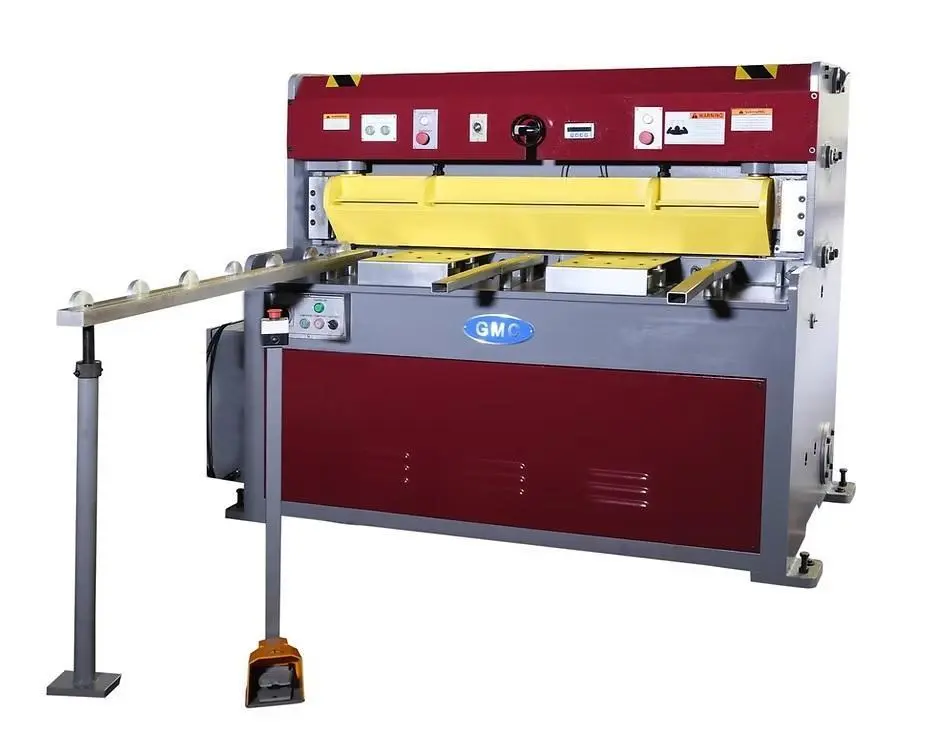

NEW GMC HS-0425M

Equipped With
NEW 4' X 1/4" GMC MODEL HS-0425M HYDRAULIC SHEAR WITH MECHANICAL BACKGAUGE
ISO 9001 certified
Taiwan machines
24” manual back gauge with inch/mm scale
Quick Change Blade Gap Adjustment (BGA), with gap dial
CE standard “OMERO” electric control system
Meet OSHA safety standard code
Shadow line for accurate straight cutting
Adjustable cutting length and stroke
Ball transfer plates on worktable for easy loading workpiece
Well balanced and sturdy all steel machine frame
German made Hydraulic logic system centrally located and quiet
Hydraulic hold-downs with anti-mar neoprene
Shear blades are high grade carbon/chrome alloy steel and hardenedvto 60 HRC, 2-edge indexable upper blade and 2-edge indexable bottom blade
Full length viewable safety finger guard to protect operator from cutting hazard
Removable safety foot pedal, automatic blade raise up on removal of foot from pedal
Hydraulic, electrical overload protection
Compact operator control panel
All motors are overload protected & low voltage control system
Jog or continuous auto cycle cutting operation modes
One year industrial warranty for parts
24” manual back gauge with micro adjustment , accuracy 0.004” inch/metric digital display
1 each 60” squaring arm with inlaid inch/metric dual scale
Quick change blade gap adjustment (BGA) with gap dial
Shadow line for accurate straight cutting
Material support and drop back chuter
Upper and bottom blade set with 2-edge on bottom & 2-edge on upper
2 each 24” front support arms
Cutting capacity:
Mild Steel:
Stainless Steel:
soft aluminum:
min. thickness:

4' x 1/4”
4' x 10 Ga.
4' x 3/8"
20Ga
Blade Length:
4'4"
Strokes Per Minute:
12-20


Worktable Height:
34 1/2"
Front Support Arm:
24"
Backgauge:
24" manual back gauge
Blade Rake Angle:
2 degree
Oil Tank Capacity:
17 Gallons
Main Motor:



Backgauge Motor:
7.5 HP (3 Ph.)
220V/30A
440V/15A (optional)

1 HP 220V/440V (3 Ph.)
Machine Weight:
5,350 LBS
Machine Dimensions:
74" x 86" x 63"
Hydraulic hold-downs with anti-mar neoprene
Full length viewable finger guard
Removable safety foot pedal
Tool box
