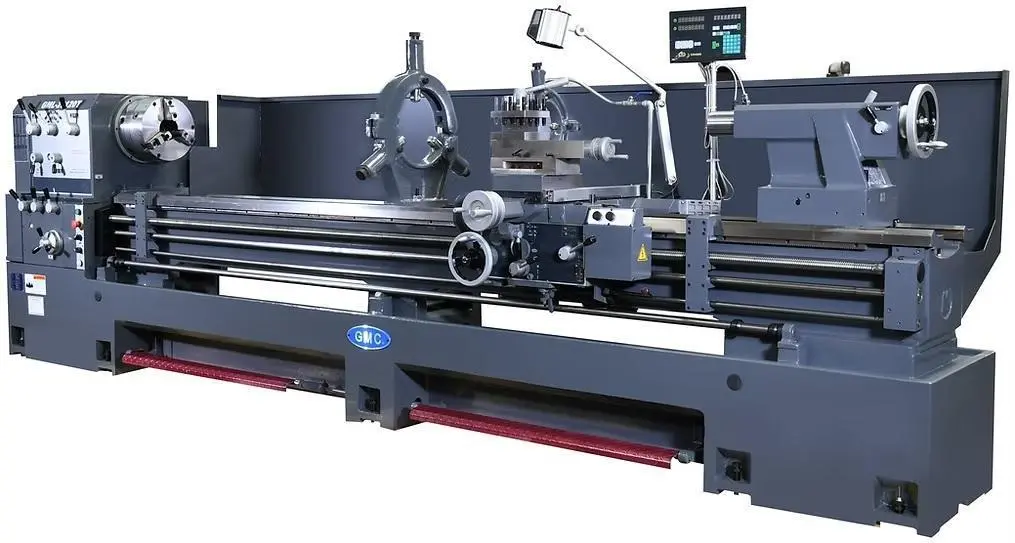

NEW GMC GML-33160T

Equipped With
NEW 33" x 160" GMC MODEL GML-33160T PRECISION ENGINE LATHE
Made in Taiwan-100% made in Taiwan, by top manufacturer with very high level of quality
1 year industrial warranty for parts for all Taiwan lathes
One piece solid casting base, Meehanite high performance cast iron
Machine bed is made of Meehanite casting – high performance cast iron
ISO 9001 certified
Large spindle bore 4-3/4” (120mm)
Heavy Duty spindle D1-11
Heavy Duty main motor 15HP

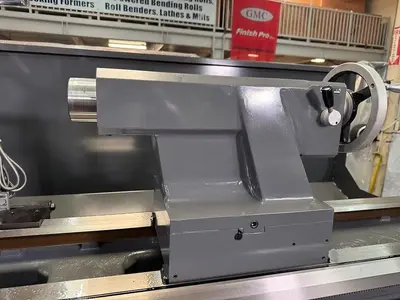

2-speed tailstock

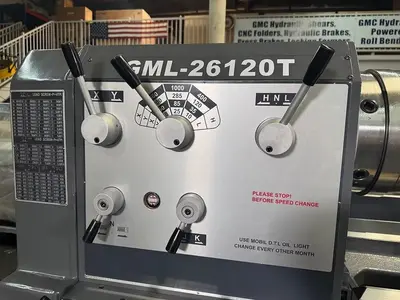

Spindle speeds from 10-1,000 rpm, 12 speeds
54 kinds of inch threads, and 54 kinds of metric threads
Threading and feeding rate change without changing gears
Spindle is balanced, hardened and precision ground
Spindle is supported at 3-point by high precision bearings
All gears and shafts are hardened and precision ground
Guideways induction hardened and precision ground
Automatic lubrication system in headstock and feed box
Free CARMAR DRO, installed

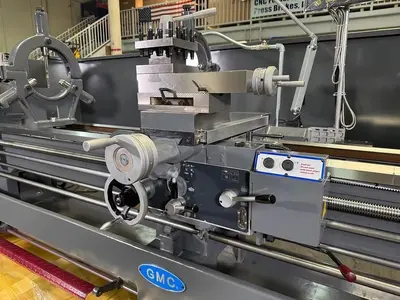

Rapid traverse on carriage on Longitudinal way
Automatic kick-out longitudinal carriage stop system
2-speed tailstock
12” 3-jaw chuck with top reversible jaws, direct mount
20” Face plate
12” steady rest with roller jaws
 5” follow rest with roller jaws
Removeable gap

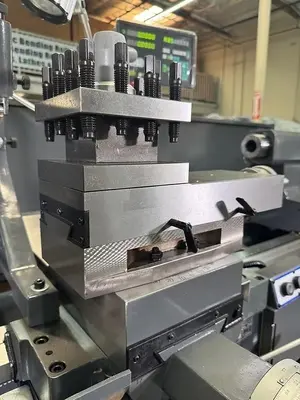

4-way tools post
Foot brake
Halogen Work light and coolant system
Full length Splash guard
Dead center
Thread chasing dial
Reducing sleeve MT7/MT5 for spindle
Tool box and leveling pads
Max. swing over bed
              33”
Max. length of workpiece
              169”

Max. swing over cross slide
              24”
Max. Swing in gap
              42”
Width of Bed
             15-3/4”
Effective length in gap to spindle
              9”
Effective length in gap to chuck jaws
              4-1/2”
Spindle bore/
Spindle nose
              4-3/4” (120mm), D1-11
Taper of spindle center
            MT# 7/MT5 with reducing sleeve
Spindle speeds
            10-1,000 rpm / 12 steps
Longitudinal feeds
             0.002-0.032 IPR,  35 kinds
Cross feeds
             0.001-0.0094IPR, 35 kinds
Inch threads
             2-56 TPI,  44 kinds
Metric threads
            0.5-14mm , 24 kinds




Max. travel of top slide
            8”
Max. travel of cross slide
          13-1/2”


Leadscrew length X TPI
         1-1/2” x 4 TPI
Diameter of tailstock quill
         3-1/2”
Max. travel of tailstock quill
         7-1/2”


Taper of tailstock quill center
       M.T. # 5


Main motor
Amperage draw
     15HP, 220V or 440V, 3 phase
     55Amp on 220V /   30Amp on 440V
Rapid traverse motor
     1HP, 220V or 440V, 3 phase
Coolant pump motor
     1/8 HP, 220V, or 440V, 3 phase, 3 Gal            coolant fluid
Machine Oil
     #30 weight machine oil, 8 Gallons
Machine weight, approx. LBS
     11,230 LBS

Overall dimensions, LxWxH, inch
Shipping dimensions, LxWxH, inch
    219x50x76
    232x44x79
