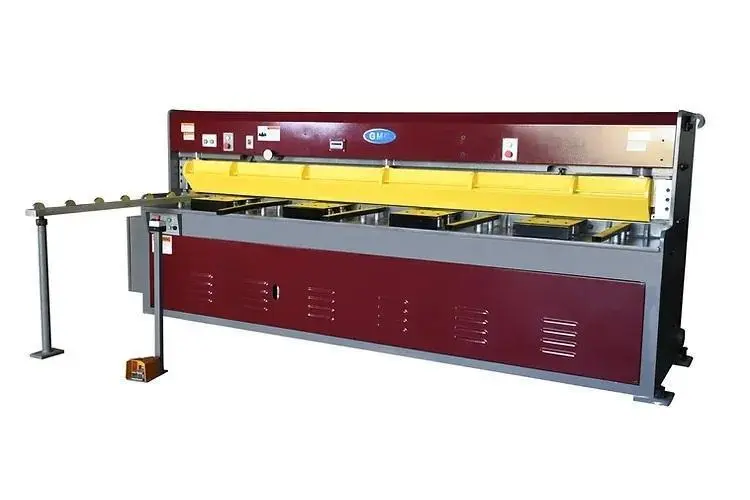

NEW GMC HS-1010M

Equipped With
NEW 10' X 10GA GMC MODEL HS-1010M HYDRAULIC SHEAR
ISO 9001 certified
Taiwan machines
HS-1010M comes with 24” manual back gauge, one side handwheel operate )
adjustment 0.004” , inch/mm digital display
Quick Change Blade Gap Adjustment (BGA), with gap dial
Shadow line for accurate straight cutting
60” squaring arm with inlaid inch/metric dual scale
CE standard “OMERO” electric control system
Meet OSHA safety standard code
Adjustable cutting length and stroke
Ball transfer plates on worktable for easy loading workpiece
Well balanced and sturdy all steel machine frame
German made Hydraulic logic system centrally located and quiet
Hydraulic hold-downs with anti-mar neoprene
Shear blades are high grade carbon/chrome alloy steel and hardened
to 60 HRC, 2-edge indexable upper blade and 2-edge indexable bottom blade
Full length viewable safety finger guard to protect operator from cutting hazard
Removable safety foot pedal, automatic blade raise up on removal of foot from  pedal
Hydraulic, electrical overload protection
Compact operator control panel
All motors are overload protected & low voltage control system
Jog or continuous auto cycle cutting operation modes
One year industrial warranty for parts
HS-1010M comes with 24” manual back gauge, one side handwheel operate )
adjustment 0.004” , inch/mm digital display
1 each 60” squaring arm with inlaid inch/metric dual scale
Quick change blade gap adjustment (BGA)
Shadow line for accurate straight cutting
Material support and drop back chuter
Upper and bottom blade set with 2-edge on bottom & 2-edge on upper
2 each 24” front support arms
Hydraulic hold-downs with anti-mar neoprene
Full length viewable finger guard
Removable safety foot pedal
Tool box
Cutting capacity:
Mild steel
Stainless steel
soft alumnium
min. thickness

10’ x 10 Ga.
10’ x 14 Ga.
10'x 1/4"
24 Ga
Blade length
10' 1" = 121"
Strokes per minute
10-15


Worktable height
34 1/2"
Front support arm
24"
Back gauge
24" Manual B.G.
Blade rake angle
2 degree
Oil tank cap.
26 Gal
Main Motor
 7 1/2 HP 3 Phase
Prewired: 220V/35A
Optional: 440V/20A
Machine weight
8,850 LBS
Machine dimensions
178" x 67" x 65"
