NEW SMC CS1N180A-PS
Overview
Description

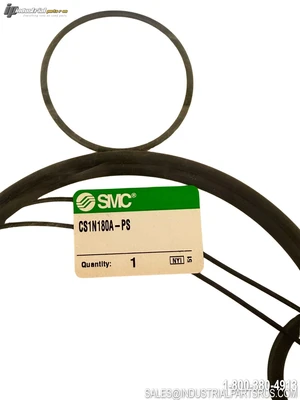

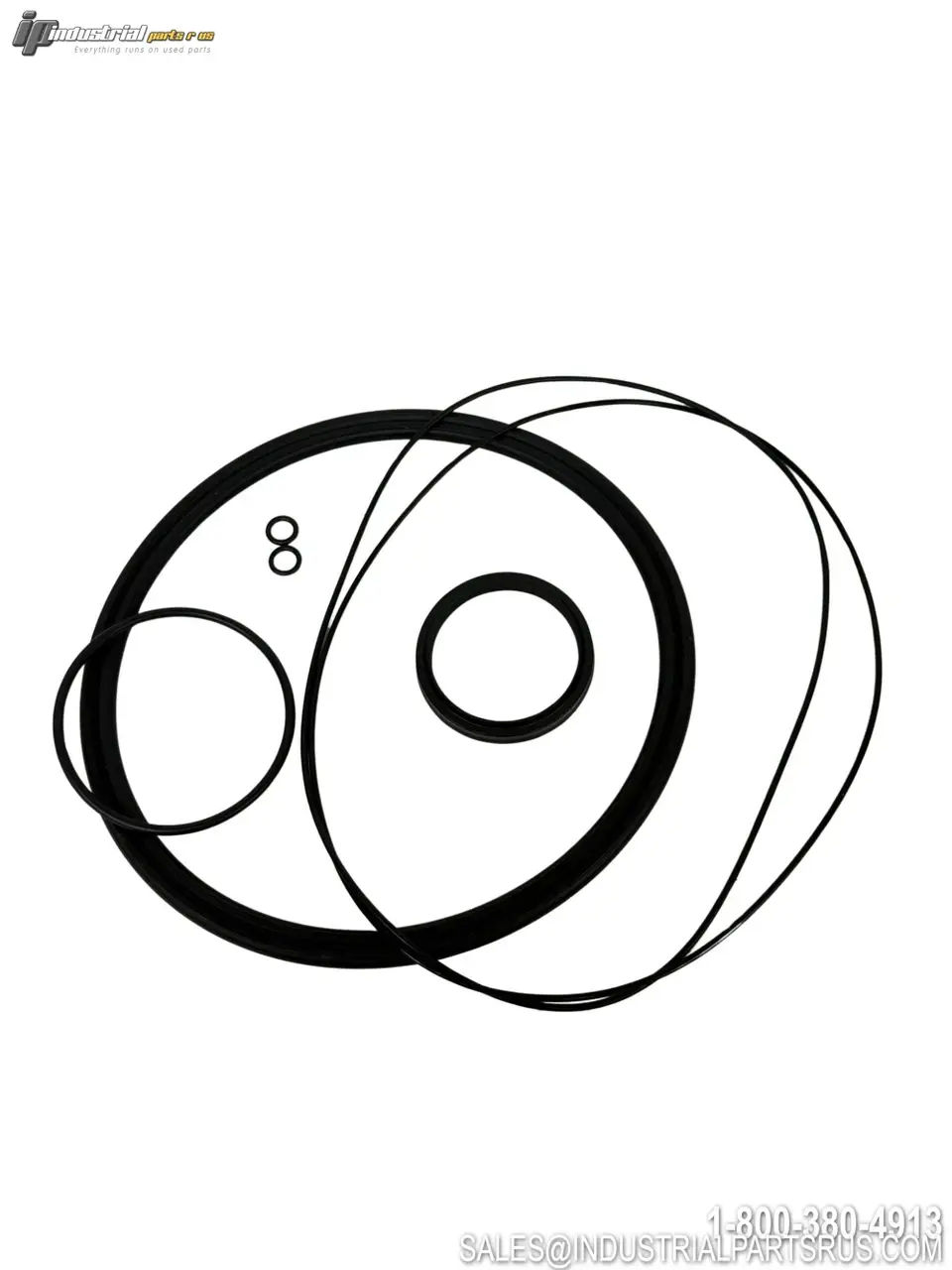

This SMC CS1N180A-PS is a complete seal kit designed for SMC CS1 series pneumatic cylinders with 180mm bore diameter. The CS1 series is SMC's largest bore cylinder series, featuring double-acting operation and designed for heavy-duty industrial applications. This seal kit includes all necessary seals and gaskets for complete cylinder maintenance.
Specification
Value
Brand
SMC
Model/Part Number
Cs1n180a-ps
Product Type
Pneumatic Cylinder Seal Kit
Series
CS1
Bore Diameter
180mm
Cylinder Type
Double-acting, Single Rod
Application
Large Bore Pneumatic Cylinder
Maximum Operating Pressure
0.97 MPa (140 PSI)
Proof Pressure
1.57 MPa (228 PSI)
Minimum Operating Pressure
0.05 MPa (7.3 PSI)
Grease Pack Included
50g
Piston Seal Type
NLP-180A
Rod Seal Type
PNY-40
Wiper Ring Type
SDR-40
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 2.00 LBS | 2.00 LBS |
|---|
SKU: AI1295
UPC: 679523686185
Condition: New
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686185
Manufacturer: SMC
Part Number: CS1N180A-PS
Shelf: K-65 Tub 1
Bore Diameter: 180 mm
Model: CS1N180A-PS
MPN: CS1N180A-PS
Type: Pneumatic Cylinder
