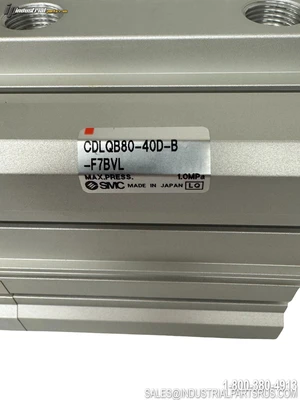

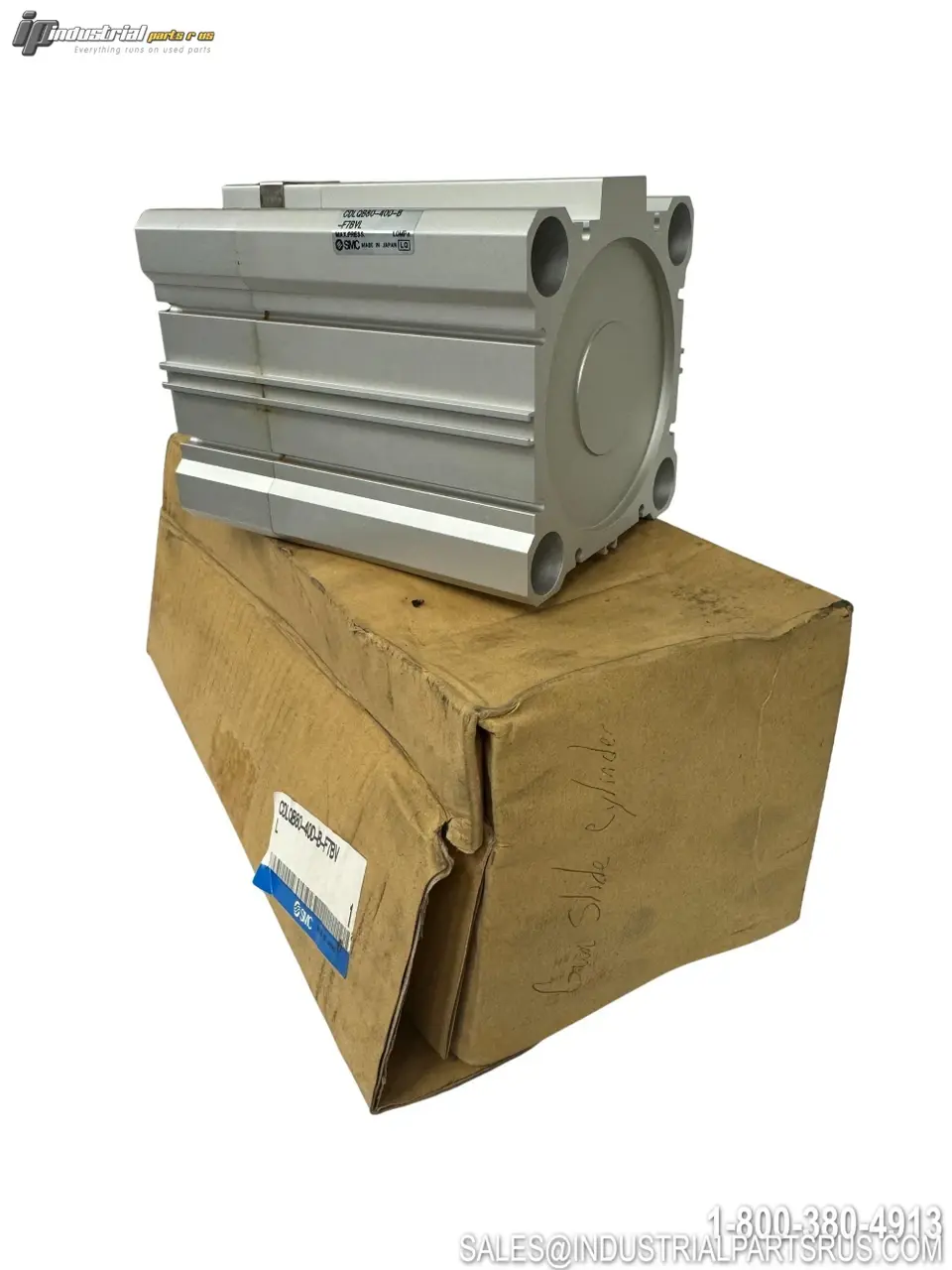

NEW SMC CDLQB80-40D-B-F7BVL
Overview
Description
The SMC CLQ Series Compact Cylinder with Lock offers drop prevention when the pressure of air source is decreased or residual pressure is released, enabling locking at any position within the entire stroke. The CLQ has a low profile design with a compact lock unit. This 80mm bore pneumatic cylinder is designed for industrial automation applications requiring precise positioning control.
Specification
Value
Brand
SMC
Model/Part Number
CDLQB80-40D-B-F7BVL
Series
CLQ Compact Cylinder With Lock
Cylinder Type
Compact Cylinder with Lock
Bore Diameter
80mm
Stroke Length
40mm (estimated from part number)
Action
Double Acting Single Rod
Mounting Type
Through Hole Type
Auto Switch
F7BVL Configuration
Maximum Operating Pressure
1.0 MPa
Minimum Operating Pressure
0.2 MPa
Proof Pressure
1.5 MPa
Operating Temperature
-10 to 60°C (with auto switch)
Piston Speed
50 to 500mm/s
Port Size
Rc 1/4
Locking Function
Extension and Retraction Locking
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 4.00 LBS | 4.00 LBS |
|---|
SKU: AI1330
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 4.00 LBS
Width: 7.00
(in)
Height: 5.00
(in)
Depth: 10.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: SMC
Part Number: CDLQB80-40D-B-F7BVL
Shelf: B-2
Bore Diameter: 80 mm
Model: CDLQB80-40D-B-F7BVL
MPN: CDLQB80-40D-B-F7BVL
Type: Pneumatic Cylinder
