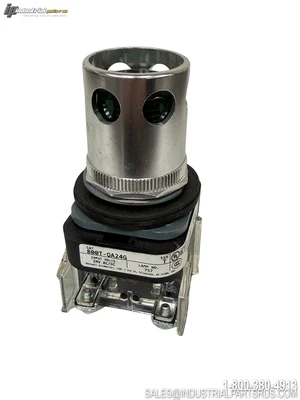

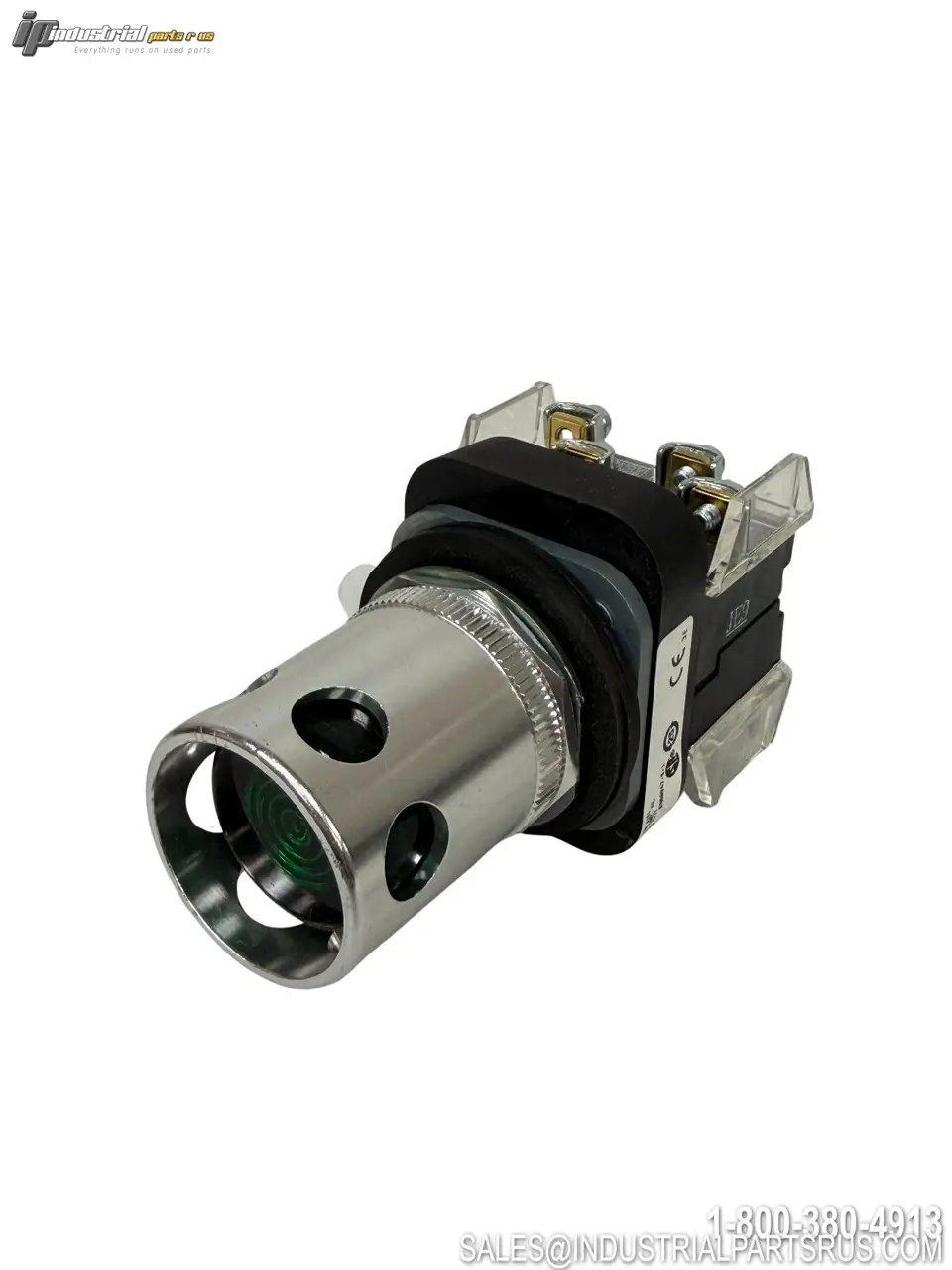

USED ALAN BRADLEY 800T-QA24G
Overview
Description
The Allen-Bradley 800T-QA24G is a 30mm momentary contact illuminated push button designed for demanding industrial applications. This Type 4/13 rated device features an extended head with guard, green lens, incandescent illumination, and full voltage operation at 24V AC/DC.
Specification
Value
Brand
Allen-Bradley
Model/Part Number
800T-QA24G
Product Type
30mm Illuminated Push Button
Series
800T
Button Size
30mm (30.5mm)
Action
Momentary
Voltage
24V AC/DC
Current Rating
10 Amp
Contact Configuration
1 Normally Open + 1 Normally Closed
Head Type
Extended Head with Guard
Lens Color
Green
Lens Type
Rectangular
Illumination Type
Incandescent
Power Module Type
Full Voltage
Protection Rating
Type 4/13
Mounting Type
1-Hole, Screw
Terminal Guards
No Guards
Weight
0.35 lbs
UPC
781180189272
Certifications
C-TICK, CCC, CE, CSA, CUL, KC, MARINE, UL
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 1.00 LBS | 1.00 LBS |
|---|
SKU: AI1300
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: Alan Bradley
Part Number: 800T-QA24G
Shelf: J-43
Model: 800T-QA24G
MPN: 800T-QA24G
Type: Push Button
