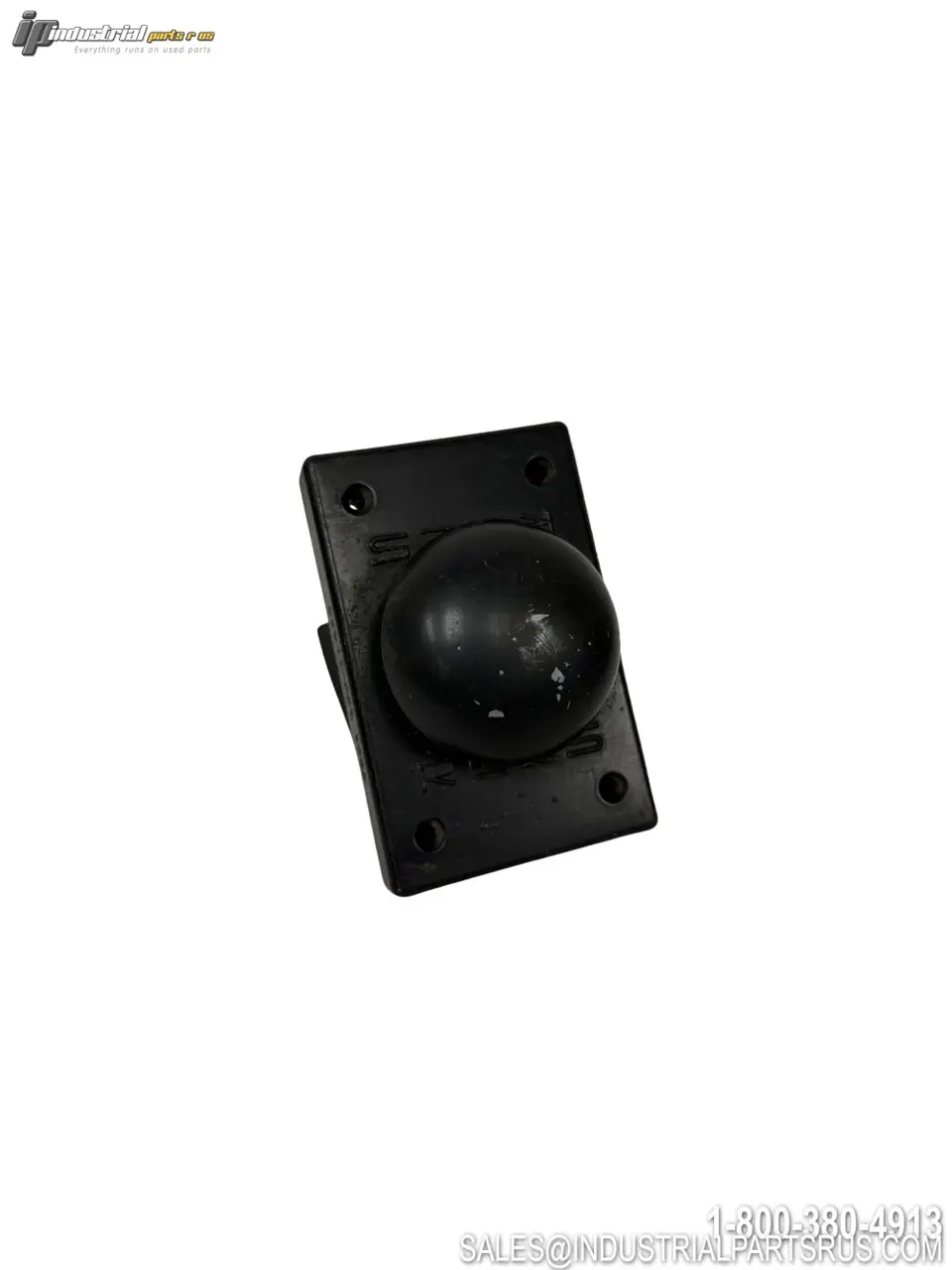

USED REES 02911-001

The Rees 02911-001 is a heavy duty metal mushroom pushbutton switch designed for industrial control applications. This hand-operated control circuit device features a 2-1/4 inch black metal plunger head with robust zinc die-cast construction and gold plated contacts for reliable performance.
Specification
Value
Brand
Rees
Model/Part Number
02911-001
Product Type
Heavy Duty Pushbutton Switch
Plunger Diameter
2-1/4 inches
Plunger Type
Mushroom
Plunger Color
Black
Voltage Rating AC
600VAC
Voltage Rating DC
250VDC
Current Rating AC
1.2 Amp
Current Rating DC
1.1 Amp
Construction Material
Zinc Die-Cast
Contact Material
Gold Plated
Enclosure Rating
NEMA 12/13, IP65
Mounting Style
Panel Mount
Termination Type
Screw Terminals
Wire Size
(2) #14 AWG Stranded per Terminal
Mechanical Life
1,000,000 Operations
Overall Length
4-1/4 inches
Gasket Material
Santoprene Rubber
We warranty all items for 30 days from date of purchase.
