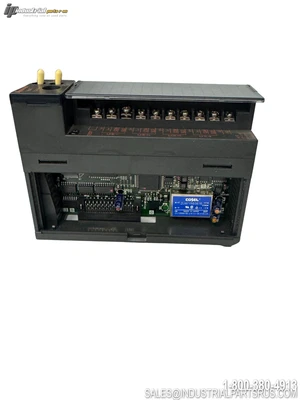

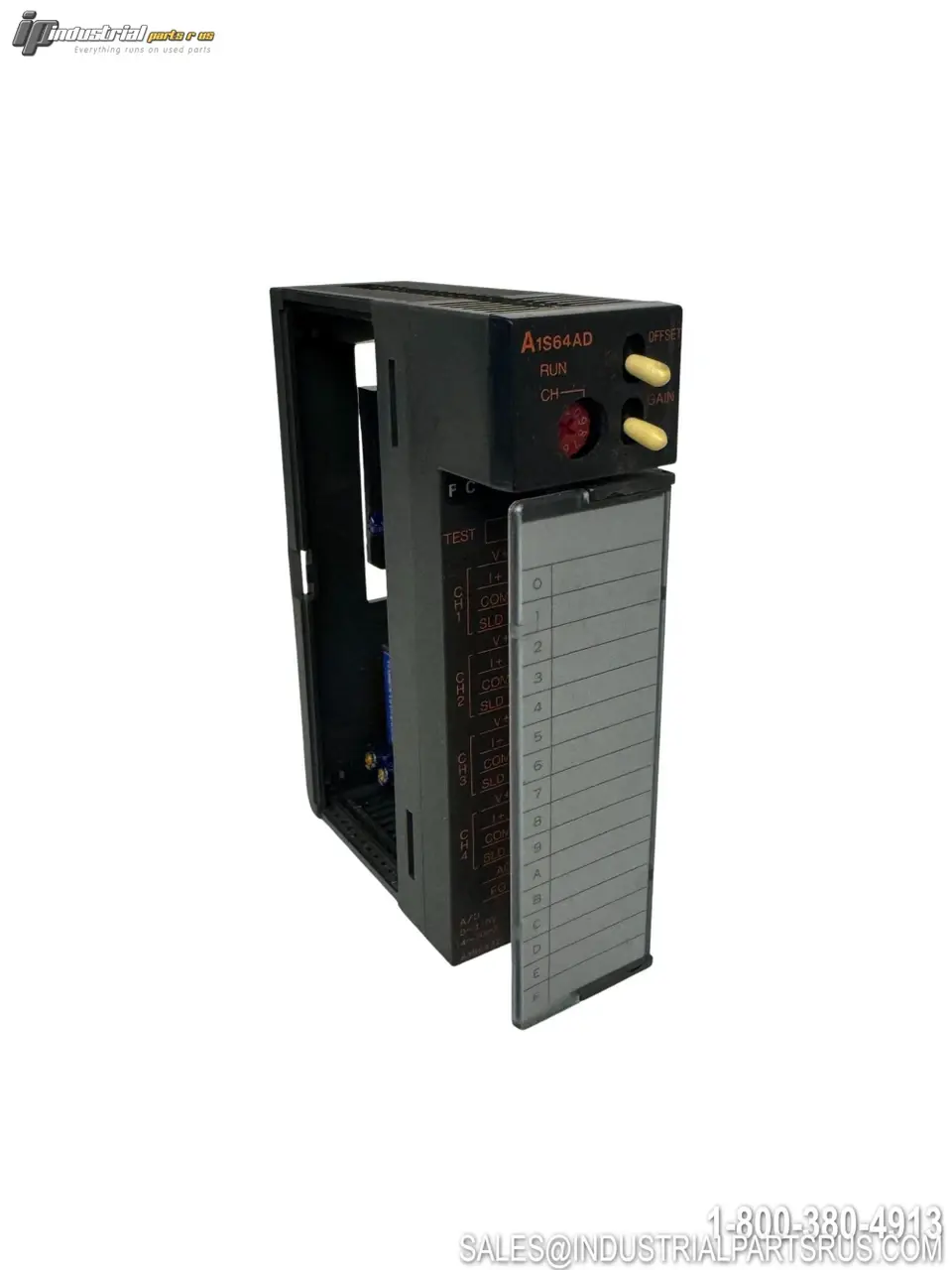

USED MITSUBISHI A1S64AD

The Mitsubishi A1S64AD is an analog-to-digital converter module designed for the MELSEC-A series PLC systems. This module converts analog input signals (voltage or current) to 16-bit digital values for the CPU unit. It features 4 independent input channels, each configurable for either voltage or current input, with high resolution and reliable photocoupler isolation.
Specification
Value
Brand
Mitsubishi
Model/Part Number
A1S64AD
Product Series
MELSEC-A
Module Type
Analog Input
Number of Channels
4
Voltage Input Range
-10V to +10VDC
Current Input Range
-20mA to +20mA
Resolution
16-bit
Conversion Speed
20ms/channel
Voltage Input Resistance
1MΩ
Current Input Resistance
250Ω
Voltage Resolution
0.83mV
Current Resolution
3.33µA
Maximum Absolute Voltage
±15VDC
Maximum Absolute Current
±30mA
I/O Points Occupied
32 Special I/O
Connection Type
20-point Terminal Block
Wire Size
0.75-1.5mm²
Internal Current Consumption
0.4A at 5VDC
Weight
0.25kg
Dimensions
130 x 34.5 x 93.6mm
Operating Temperature
0°C to 50°C
Isolation
Photocoupler
External Power Supply
Not Required
We warranty all items for 30 days from date of purchase.

SKU: AI1322
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Full Load Amps: -20mA to +20mA
Manufacturer: Mitsubishi
Part Number: A1S64AD
Controller Platform: MELSEC-A
Shelf: E-6
Model: A1S64AD
MPN: A1S64AD
Type: I/O Module
