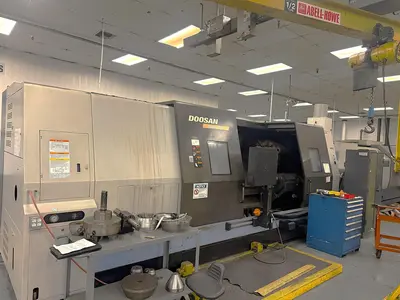

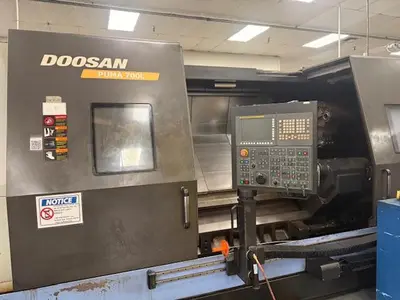

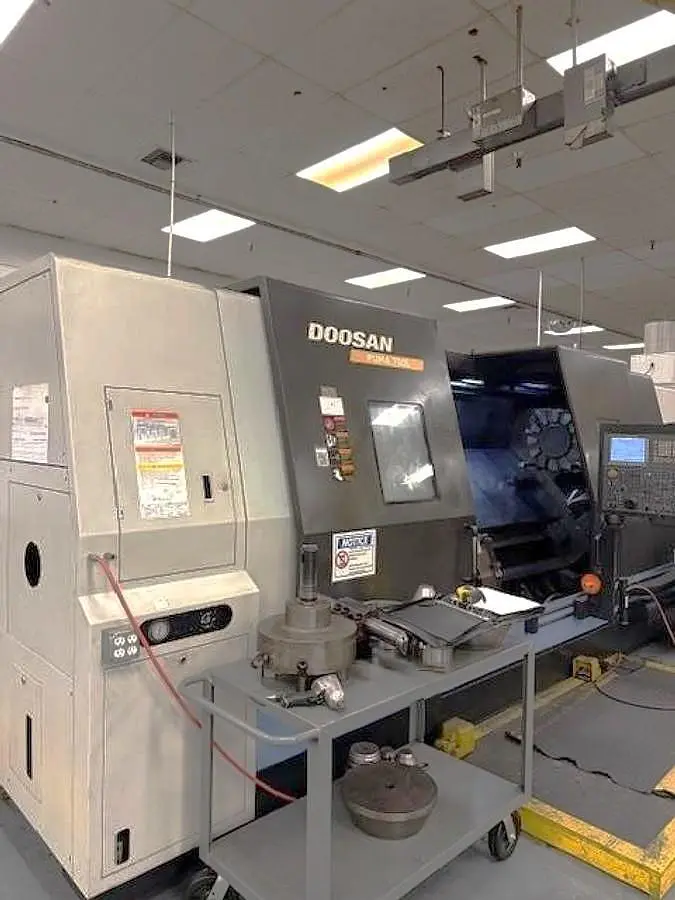

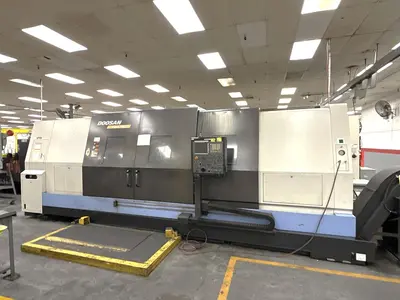

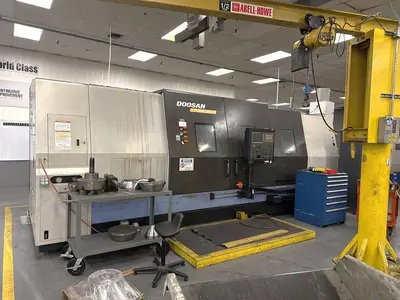

USED 2012 DOOSAN PUMA 700L

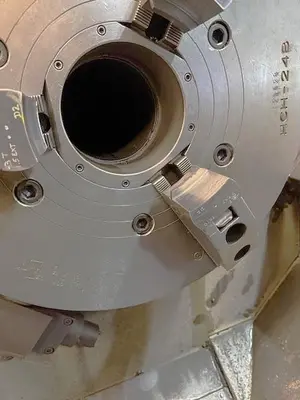

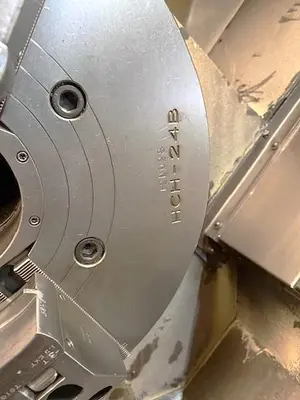

24" Samchully HCH-24 3 Jaw Hydraulic Chuck
6.5" Bar Capacity

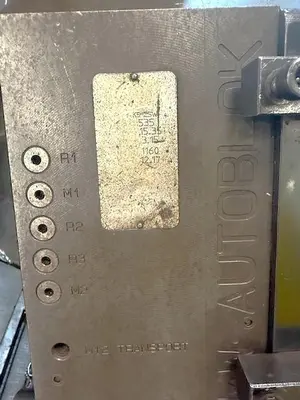

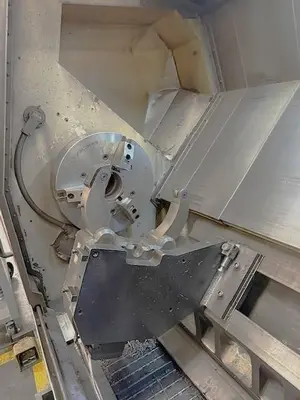

SMW Autoblok Hydraulic Steady Rest with 16" Capacity
Tailstock
Chip Conveyor
Tool Presetter

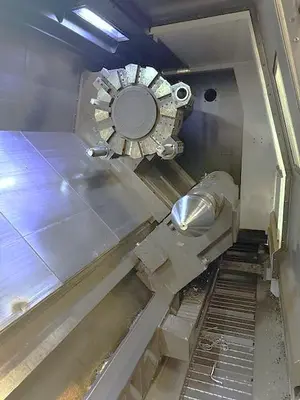

12 Station Bolt On Style Turret
Coolant System with Tank & Pump
RS 232 Port Interface
Card Interface
Wired 200/220V Electrics
All Available Manuals
All Available Tooling

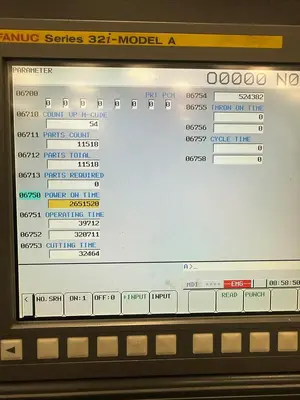

**Power On Hours 44,192**
**Operating Hours 6,007**
**Machine Cutting Hours 9,280**

The 2012 Doosan Puma 700L is a robust CNC lathe, ideal for heavy-duty turning operations. It features a Fanuc Series 32i-Model A control system and includes a 24" hydraulic chuck, allowing for efficient handling of large workpieces. With a maximum swing over bed of 40.6" and a turning diameter of 35.4", it can accommodate sizeable components. The turning length extends up to 126", supported by an SMW steady rest and a tailstock to ensure precision and stability.

This model has a significant bar capacity of 6.5", suitable for heavy-duty applications, and operates with a spindle speed range of 3 to 1500 RPM, powered by a 60/50 HP motor. The machine's spindle system includes an A1-15" nose and a 7.12" bore, further enhancing its versatility. The X and Z axis travels are 18.5" and 133.8" respectively, with rapid traverse rates of 472 IPM (X-axis) and 397 IPM (Z-axis), ensuring swift maneuverability.

The equipment also includes a 12-position bolt-on style turret, providing flexibility for various tooling setups. A chip conveyor system is in place for efficient waste management. The machine measurements are notably 290" x 104" x 102", extending to 355" in length when the chip conveyor is attached. With a substantial weight of 48,400 lbs., the Doosan Puma 700L is a heavy-duty machine designed for demanding industrial settings.

Machine Control: Fanuc Series 32i-Model A Control
Chuck size: 24" Hydraulic Chuck
Maximum Swing over Bed: 40.6"
Maximum turning diameter: 35.4"
Maximum Distance Between Centers: 126"
Maximum Bar Capacity: 6.5"
X axis travel: 18.5"
Z axis travel: 133.8"
Spindle Nose / Spindle Bore / Bar Capacity: A1-15" / 7.12" / 6.5"
Spindle speed: 3 - 1500 RPM (3 Ranges)
Spindle motor (30 min / cont): 60 / 50 HP
Turret type: 12 Position Bolt on Style Turret
Rapid traverse rates x, z: 472 IPM / 397 IPM
Tailstock Quill Diameter / Quill Travel / Taper: 6.3" / 5.9" / #5 MT
Machine dimensions: 290" x 104" x 102" (355" length with chip conveyor in place)
Machine weight: 48,400 lbs.
