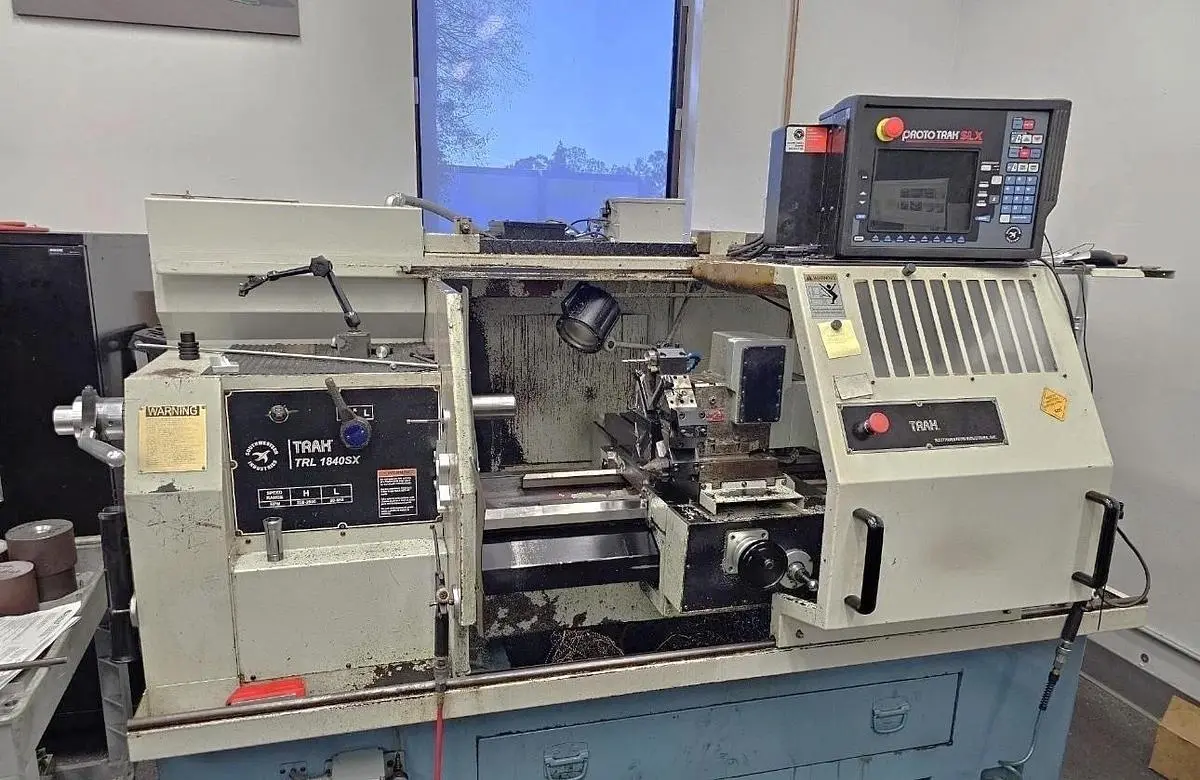

USED 2009 SOUTHWESTERN INDUSTRIES TRAK TRL 1840SX
Overview
Description
Dorian Smartdex 8 Station Indexable Turret
Tailstock
Electronic Handwheels and Joystick
3 Speed Geared
5C Collet Nose
Collet Closer
Work Light
10.4" Color Active Matrix Screen
USB Port Interface
RS232 Port Interface
Coolant System with Pump
The 2009 Southwestern Industries TRAK TRL 1840SX is a versatile CNC lathe with a 3-axis configuration designed for precise machining tasks. Equipped with the Prototrak SLX Control, it offers user-friendly operations suitable for various applications. This machine features a maximum swing over the bed of 18.5 inches and a distance between centers of 40.25 inches, allowing for significant maneuverability for larger workpieces.
The lathe is powered by a robust 10 HP spindle motor capable of spindle speeds ranging from 50 to 2,500 RPM across three ranges, providing flexibility and efficiency for different machining requirements. An 8-position indexable turret enhances tool change efficiency, while the 5C collet nose accommodates diverse tooling needs. For added versatility, the tailstock has a quill diameter of 2.96 inches and a travel of 7.125 inches with a #5MT taper.
Compact yet powerful, the machine maintains dimensions of 91"x53"x70" and weighs 4,500 lbs, suitable for workshops with limited space. It operates on a 220V, 3-phase power supply, ensuring consistent performance. This used model is equipped with a geared setup and a collet chuck, making it a practical choice for small to medium-sized production environments.
Specifications
Machine Control: Prototrak SLX Control
Chuck Size: 5C Collet Nose
Maximum Swing over Bed: 18.5"
Maximum Swing Over Cross Slide: 9"
Distance Between Centers: 40.25"
Spindle Nose / Spindle Bore: D1-6" / 2.36"
Spindle Speeds: 50 - 2,500 RPM - 3 Ranges 50-270 / 150-850 / 450-2500
Number of Tool Positions: 8 Station Indexable Turret
Spindle Motor: 10 HP
Rapid Traverse Rates X/Z: 100 IPM / 150 IPM
Tailstock Quill Diameter / Quill Travel / Taper: 2.96" / 7.125" / #5MT
Power Requirements: 220V / 3 Phase / 60Hz
Machine Dimensions LxWxH: 91"x53"x70"
Machine Weight: 4,500 lbs
