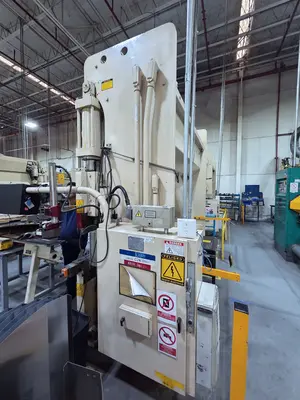

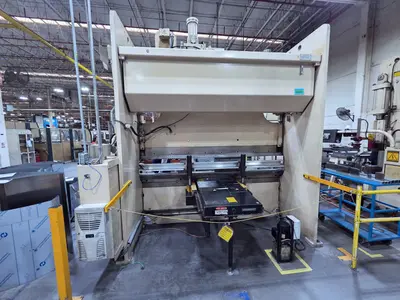

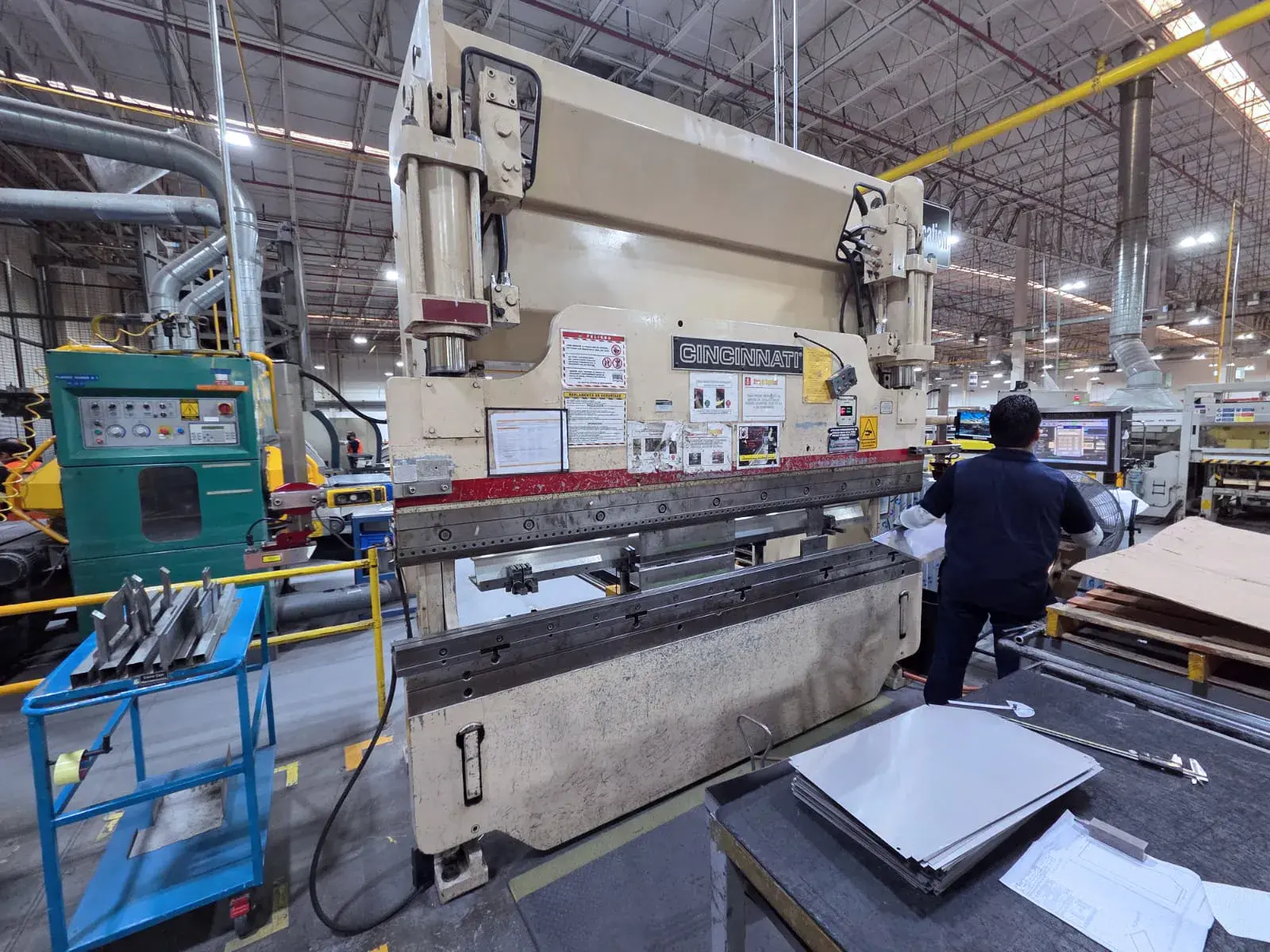

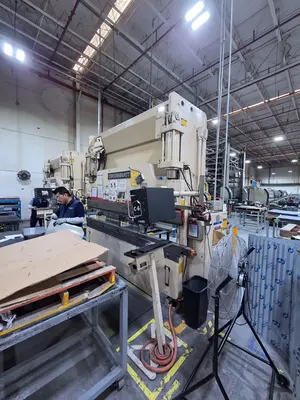

USED 2005 CINCINNATI PROFORM 90 PF X 8 FT

90 Ton| 8 FT| 14" Stroke
Increase fabrication efficiency with this Cincinnati Proform 90 PF 8 FT Hydraulic Press Brake. Designed for precision sheet metal forming, it handles complex bends and high-volume production with ease. Featuring a user-friendly touchscreen interface, it is capable of forming up to 12-gauge or 1/4-inch material, it delivers consistent accuracy and reliable industrial performance.

Tonnage Capacity: 90 Tons (81.6 Metric Tons)
Overall Bending Length: 8' (96") (2,438 mm)
Distance Between Housings: 6' 6" (78.5") (1,994 mm)
Maximum Stroke: 14" (355.6 mm)
Open Height: 15" (381 mm)
Closed Height: 7" (177.8 mm)
Throat Depth: 7" (177.8 mm)
Approach Speed: 260 IPM (6,604 mm/min)
Pressing Speed: 1 to 80 IPM (25.4 to 2,032 mm/min)
Return Speed: 280 IPM (7,112 mm/min)

Cincinnati PC-Based CNC Control
CNC Backgauge - 2 Axis
LazerSafe LZS‑003 Safety System
Wila Manual Crowning
