HNK NT-10/12 F VTL – 2019
Overview
Description

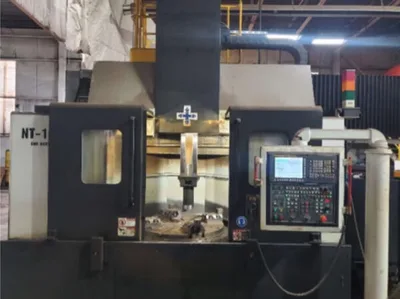

HNK NT10/12 F Vertical Turret Lathe
Table size: 39.4″ (1,000 mm)
Max swing / max turning diameter: 49.2″ (1,250 mm)
Max turning height: 31.5″ (800 mm)
Max load: 9,920 lbs (4,500 kg)
X/Z travel: approximately -200 to 795 mm / 750 mm on comparable NT-10/12F configuration
Table speed: up to 450 RPM
Table motor: 40/50 HP class; comparable used listing shows 30/37 kW table motor
Machine weight: 37,478 lbs
Tool changer: 12-station ATC commonly found on listed machines
Chuck / table size: 39.4″
Max spindle / table speed: 450 RPM
Z travel: 29.5″
Spindle / main motor horsepower: 50 HP
X travel: 39.1″
Control: Fanuc 31i-B
High-rigidity 2019 HNK NT-10/12F CNC vertical turret lathe built for accurate, high-speed turning of large-diameter parts, with a compact footprint and strong specs for heavy industrial machining.
