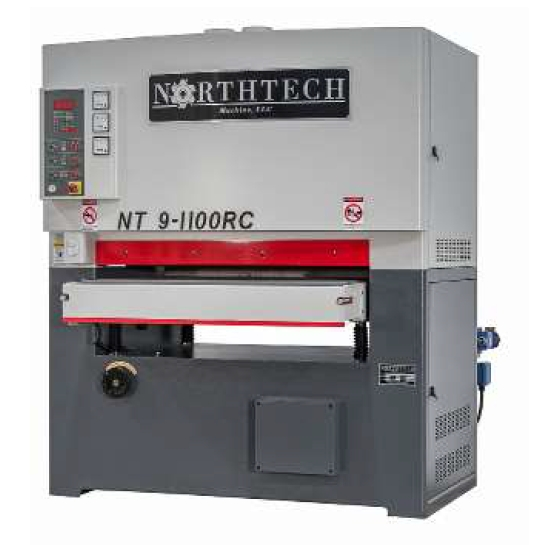

NEW NORTHTECH NT-9-1100RC

Working Width: 43"
Sanding Heads: (2)
(1) 9" 70 durometer spiral fluted roller
(1) 65 durometer heavy duty combination head with platen
Belt Motors: 20HP / 15HP
Digital positioning elevation control
Confi guration: Rubber Roller - Combination Head
Size Of Sanding Belt: 43" x 75"
Double spring loaded holddown rollers before and after each head
8 ~ 35 FPM 2HP feed control via inverter
(8) 5" dust ports for requiring 681 CFM at points of extraction
Table Height 32-38" / Table Lift 6" by PLC Touch Screen
Machine/Packing weight: 3,642lbs / 3,812lbs
Machine/Packing dimensions (LxWxH): 66" x 64" x 75" / 70" x 70" x 83"
