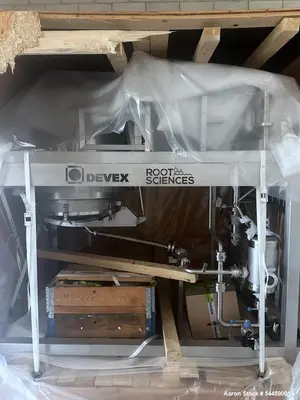

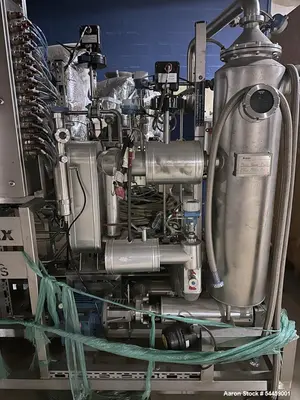

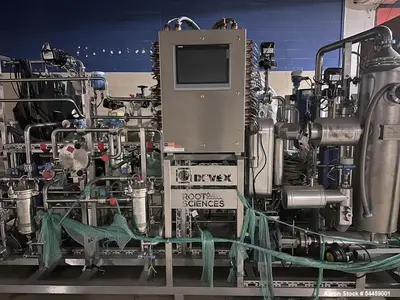

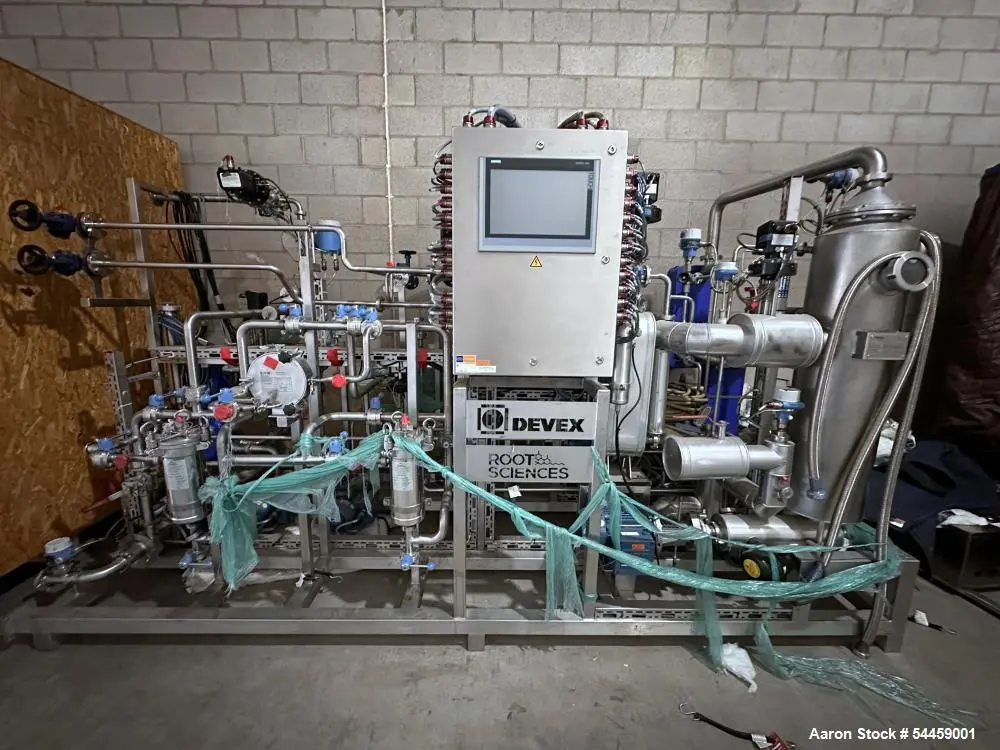

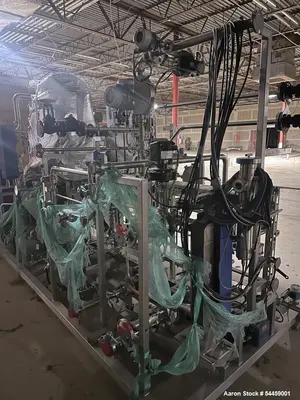

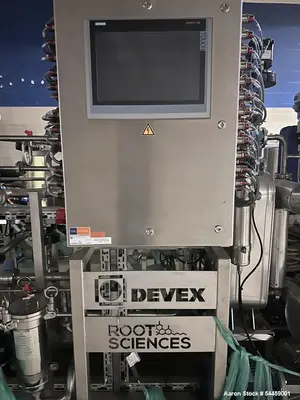

Used DEVEX CryoEXS 400 Cryogenic Ethanol Extraction System | 400 lb/Shift Turnkey Plant

Manufacturer: DEVEX GmbH
Model: CryoEXS 400
Equipment Type: Cryogenic Ethanol Extraction System
Condition: Used
Year Built: 2019
Electrical: 3 Phase / 60 Hz / 480V
Configuration: Dual Skid Mounted System

Description
Used DEVEX CryoEXS 400 cryogenic ethanol extraction system designed for efficient, low-temperature extraction of botanical compounds at commercial scale. This turnkey system offers a throughput capacity of up to 400 lbs per 8-hour shift and features a 300-liter extraction vessel for high-volume processing.
The system includes a high-capacity solvent recovery unit capable of reclaiming up to 350 liters per hour, significantly improving operational efficiency and reducing solvent loss. Mounted on two skids for streamlined installation and transport, this system is engineered for flexibility and industrial performance.
Included is a Fluid Chillers Inc. water-cooled chiller capable of achieving -40°C for precise cryogenic conditions, as well as a Columbia Boiler system providing process heat. Two stainless steel 265-gallon tanks are also included for solvent storage or process integration, making this a complete, ready-to-run extraction solution.

Specifications

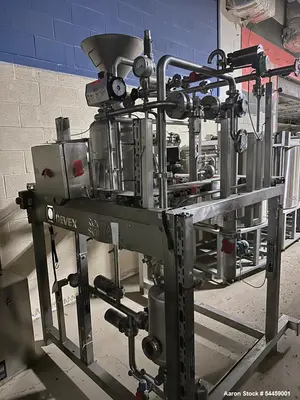

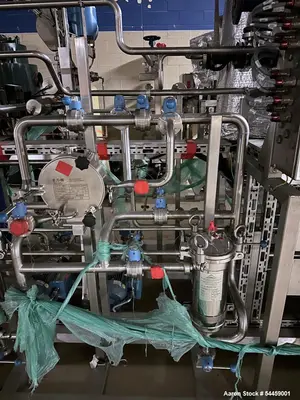

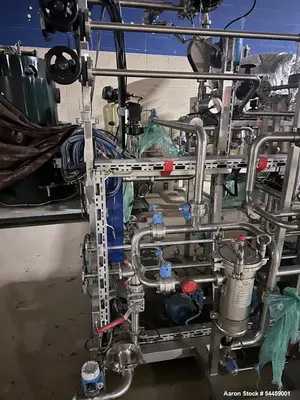

Extraction System

Manufacturer: DEVEX GmbH
Model: CryoEXS 400
Throughput: 400 lbs per 8-hour shift

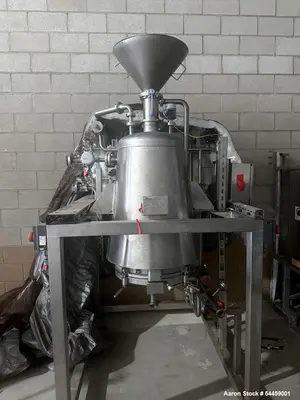

Extraction Vessel: 300 liters
Solvent Recovery Rate: 350 liters/hour
Mounting: Dual skid configuration
Electrical: 3 Phase / 60 Hz / 480V

Chiller System

Manufacturer: Fluid Chillers Inc.
Model: WAT50,000-DC-ULT-RS
Cooling Capacity: 42.4 kW
Temperature Capability: Down to -40°C
Pump Capacity: 40 GPM at 40 PSI
Electrical: 3 Phase / 60 Hz / 460V

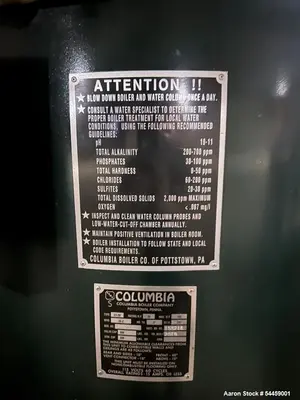

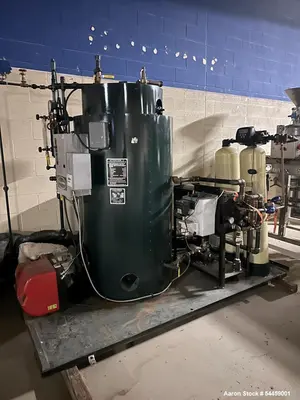

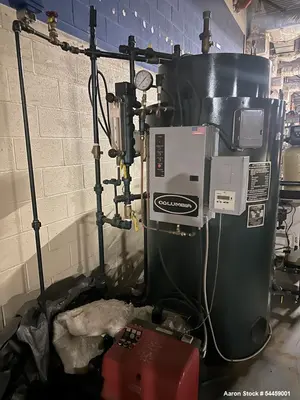

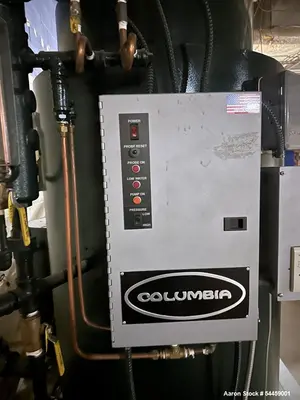

Boiler System

Manufacturer: Columbia Boiler Company
Model: CT20-C-LN
Output: Approx. 672,000 BTU/hr
Max Pressure: 135 PSI
Electrical: 1 Phase / 60 Hz / 115V

Additional Equipment

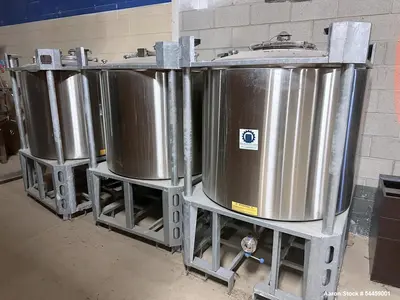

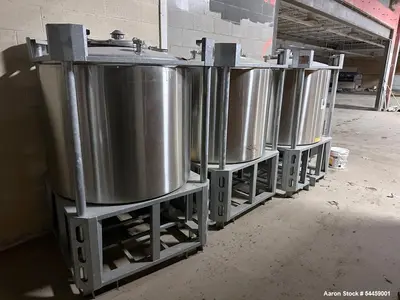

(2) Stainless steel tanks

Capacity: 265 gallons each (1,000 liters)

Integrated system components for extraction, heating, and cooling

Applications
Ideal for cryogenic ethanol extraction processes requiring high throughput, efficient solvent recovery, and precise temperature control.

Products This Equipment Would Be Used For

Botanical extracts
Essential oils
Hemp extracts
Herbal extracts
Plant-based oils
Flavor concentrates
Fragrance compounds
Nutraceutical extracts
Food-grade extracts
Specialty chemical extracts
