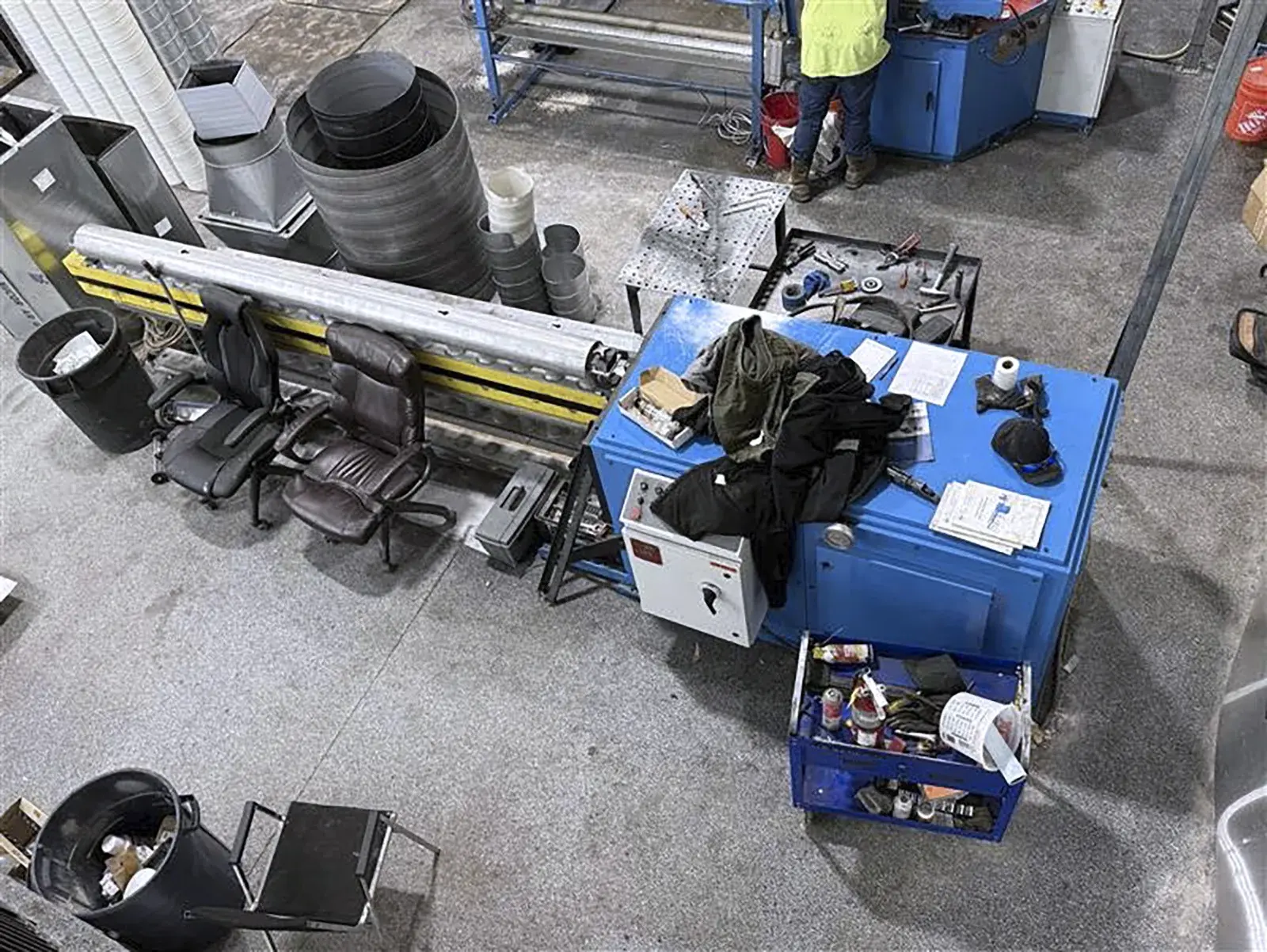

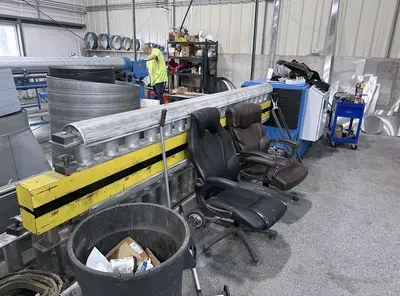

USED 2023 Spiral Helix Ovalizer 36/10
Overview
Description
Maximize HVAC duct production with this Spiral Helix Ovalizer 36/10 Multiform Bender (2023). Designed to convert round spiral ducts into precise flat-oval shapes, it handles smooth or corrugated materials with ease. Ideal for efficient, high-quality duct fabrication, it ensures consistent results for heating, ventilation, and air conditioning applications.
Specifications
Minimum Oval Size: 6" × 17"
Maximum Oval Size: 36" × 106"
Minimum Round Diameter: 13"
Maximum Round Diameter: 80"
Maximum Tube Length: 20 ft
Minimum Material Thickness: 0.237" (5 ga)
Maximum Material Thickness: 0.492" (0000 ga)
Equipped With
Die package: New Cost Approx $115.000
Forming Head Package: New Cost Approx $40.000
Spacer Kit
PLC Control Panel

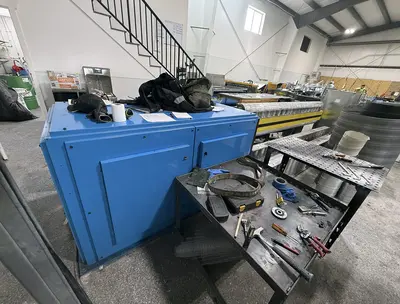

Hydraulic Power System: 25HP motor
Boom Assembly

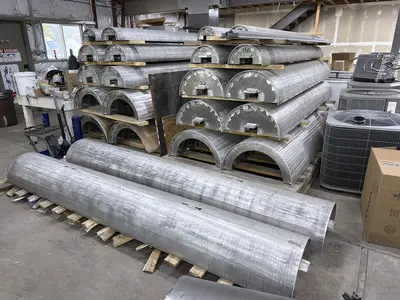

Die Package: 8" – 10" – 12" – 14" – 16" – 18" – 20" – 22" – 24" – 26" – 28"
Forming Head Package: Head Package 34" – 42" – 44" – 48" – 50" – 58" – 70" – 78"
