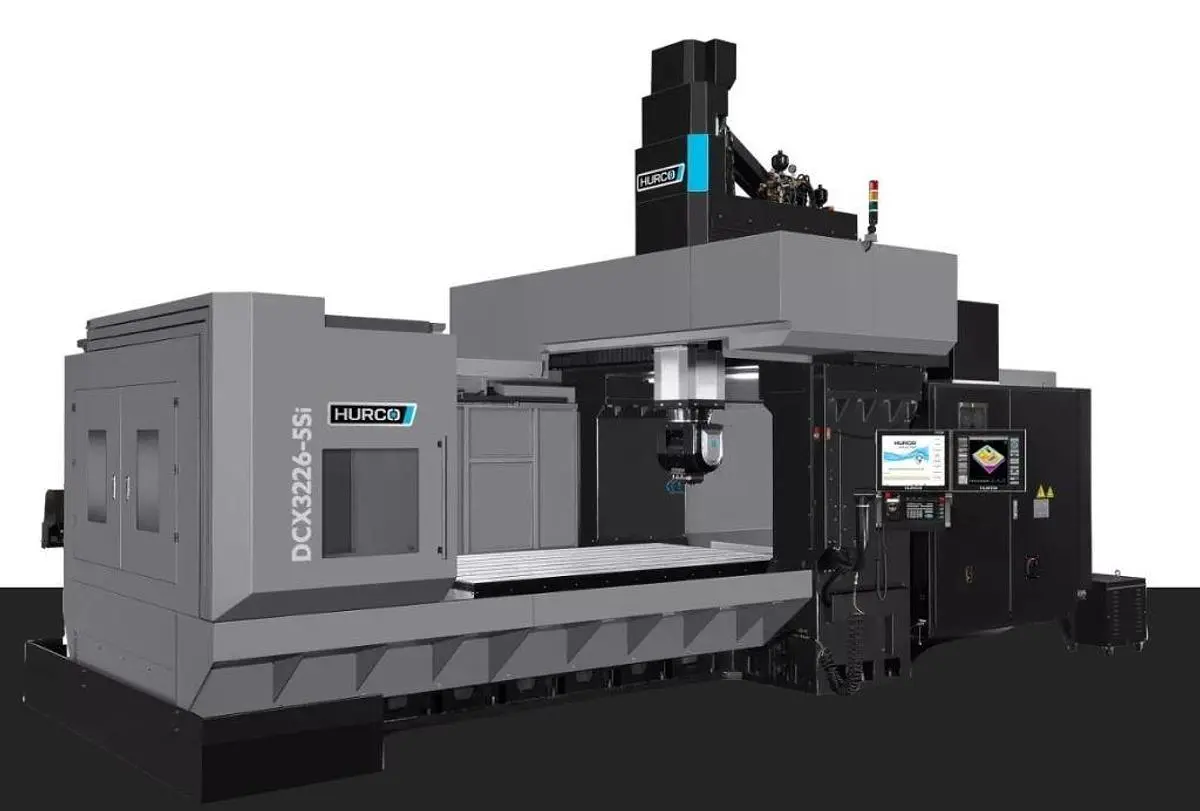

USED 2025 HURCO DCX32-5SI
Overview
NEW Machine - No Operating Hours
5-axis simultaneous machining, enables simultaneous movement of 4 or 5 axes in NC mode
Max 5 CNC Control
5-Axis Fork Head:
Tool holder HSK 63 A
C-axis (4th axis) +/- 360°
B-axis (5th axis) +100° /-110°
AXS control with removable electronic handwheel
Pentium technology, SSD (solid-state drive) storage medium, 2 GB RAM, Ethernet interface, USB interface, internal system self-diagnosis, WINDOWS platform
Synchronous thread cutting (thread cutting without compensating chuck)
60 Position Tool Changer
Motor Spindle
Spindle Cooler
Chip Conveyor
Specs
Manufacturer: Hurco
Model: DCX 32-5 Si
Year: 2025
Condition: Used
Stock Number: 5654356
Spindle speeds: 18,000 rpm
Spindle nose to table: 66 - 966 mm
X axis travel: 3,200 mm
Y axis travel: 2,100 mm
Z axis travel: 900 mm
Table size: 3,000 x 1,700 mm
Table capacity: 11,000 kg
Spindle power: 63 kW
Spindle torque: 106 Nm
Rapid traverse X/Y: 15,000 mm/min
Spindle taper: HSK 63A
Machine weight: 37,700 kg
