| Spindle Hole Dia | 12 mm | 0.4724" |
| Power | 2.2 kW | 3 hp |
| RPM | 12,000 RPM | 12,000 RPM |

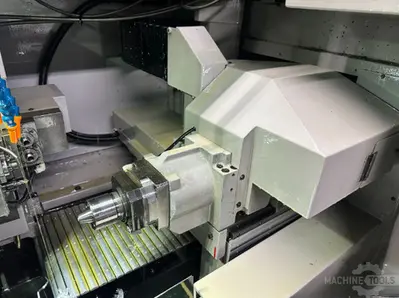

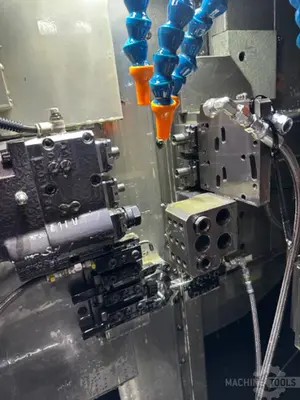

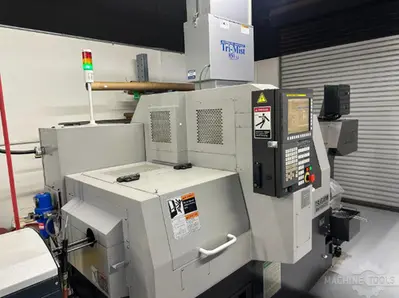

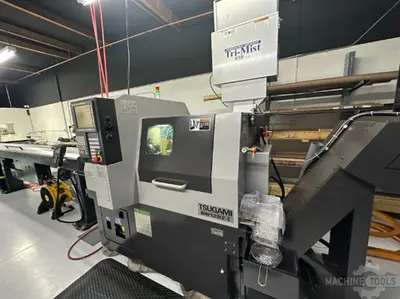

0.4724” X 6.69” CNC Swiss Lathe with Fanuc 31-iB control, LNS GT 112-E Magazine Bar Feed, LNS Chip Conveyor, Tri-Mist Mist Collector 850 G2 Mist Collector, MP Systems V2 Swiss High Pressure Coolant System, Fire Suppression, Parts Catcher & Conveyor and Chucker KitGENERAL SPECIFICATIONS Capacity: 0.4724” Spindle Hole Diameter: 0.6299”Power: 3 HPSpindle Speed: 12,000 RPM# of Axis: 9Main Spindle Indexing: Full CSub - Spindle Indexing: Full CBarstock Chucking Diameter: 0.12” - 0.47”
Machining LengthStationary Guide Bushing: 1.77”Carrier Rotary Guide Bushing: 3.15”Direct Drive Rotary Guide Bushing: 6.69”Guide Bushing Less: 1.77”Main Spindle Drilling Diameter: 1.77”Main Spindle Tapping Diameter: M6Main Spindle Through ID: 0.63”Back Spindle Chucking Diameter: 0.47”Back Spindle Tapping Diameter: M8Cross Drilling Diameter: 6mmBack Tapping Diameter: M5Main Spindle Speed: 12,000 RPMBack Spindle Speed: 12,000 RPMRotary Guide Bushing SpeedCarrier Rotary Guide Bushing: 8,000 RPMDirect Drive Guide Bushing: 12,000 RPMCross Tool Spindle Speed: 8,000 RPMTool Size: .5” X .5” X 3.35” Rapid Traverse RatesZ1, Z2, X2: 1259 IPMY1, Y3: 944 IPMY2: 590 IPMX1, X3, Z3: 472 IPMMain Spindle Motor: 2.9 HPBack Spindle Motor: 2.9 HPAxis Motors: 0.6 HPCross Drill, Tool Spindle: 1.34 HPBack Tool Speed: 1.34 HPMachine Dimensions: 79” X 59” X 69”Machine Weight: 6,400 LbsINCLUDES: Fanuc 31-iB control, LNS GT 112-E Magazine Bar Feed, LNS Chip Conveyor, Tri-Mist Mist Collector 850 G2 Mist Collector, MP Systems V2 Swiss High Pressure Coolant System, Fire Suppression, Parts Catcher & Conveyor and Chucker Kit
