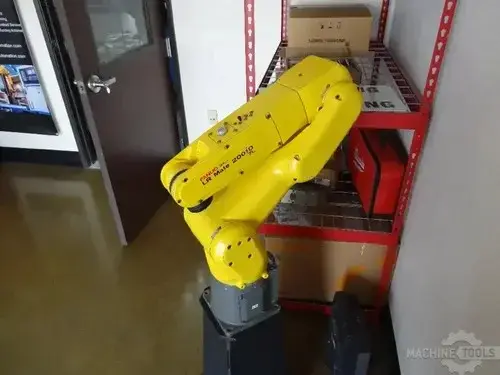

USED 2015 FANUC LR MATE 200ID/7L

6-Axis Articulated Industrial Robot

Request a Quote
Add to Cart
Payload: 7 Kg
Reach: 911mm (Long Arm)
Repeatability: +/-0.01mm
Robot Weight: 27 Kg
Mounting (Floor/Upside-Down/Angle): J1: 340° @460d°, J2: 380° @550°, J3: 250° @545°, J4: 250° @545°, J5: 430° @410°, J6: 720° @1000°
Wrist Moment: 16.6 N.m
Wrist Inertia: 0.47 kg.m2
Control: R-30iB / R-30iB Mate
Software: Fanuc Roboguide
Applications: Machine Tending / Pick & Place / Assembly / Material Handling
Note: (2) Machines Available, Price Per Machine
