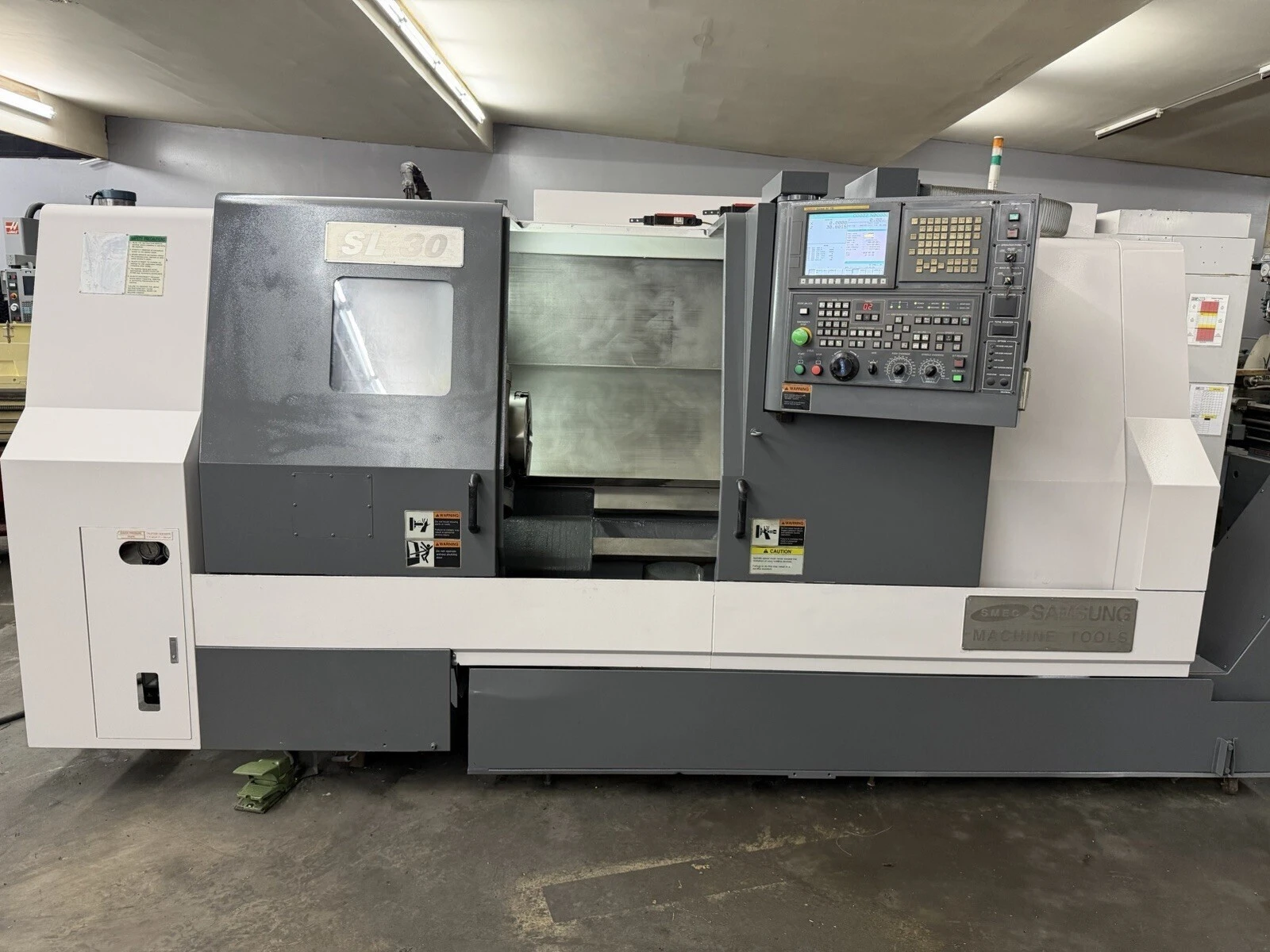

CNC Lathe, used condition, features Fanuc OiTD control, 12" chuck, 3.5" bar capacity, 2,500 RPM spindle speed, and 30 HP motor. Equipped with a programmable tailstock, chip conveyor, and tool presetter.
| Swing | 25.6" | 650.24 mm |
| Machining Length | 41.3" | 1,049 mm |
| # Axis | 2 | 2 |
| Chuck Size | 12" | 304.8 mm |
| Bar Capacity | 3.5" | 88.9 mm |
| Power | 30 hp | 22.4 kW |
| Max RPM | 2,500 RPM | 2,500 RPM |
| Turning Dia | 15.8" | 401.32 mm |
| Tailstock | 'Yes' | 'Yes' |
| Control | CNC (Fanuc) | CNC (Fanuc) |
Chuck Size: 12″
Bar Capacity: 3.5″
X-Axis Travel: 9.06″
Z-Axis Travel: 43.30″
Rapid Traverse (X/Z): 709 ipm / 945 ipm
Max Turning Diameter: 15.75″
Swing Over Bed: 25.59″
Swing Over Cross Slide: 18.90″
Maximum Turning Length: 41.34″
Spindle Speed: 2,500 RPM
Spindle Motor: 30 HP / 25 HP (cont./peak)
Spindle Nose: A2-8
Spindle Bore: 4.13″
Draw Tube ID: 3.58″
Guideways: Box way
Bed Type: 45° slant bed
Tool Stations: 12 (OD & ID capable)
Fanuc OiTD Control
Programmable Tailstock
Chip conveyor
Tool Presetter
