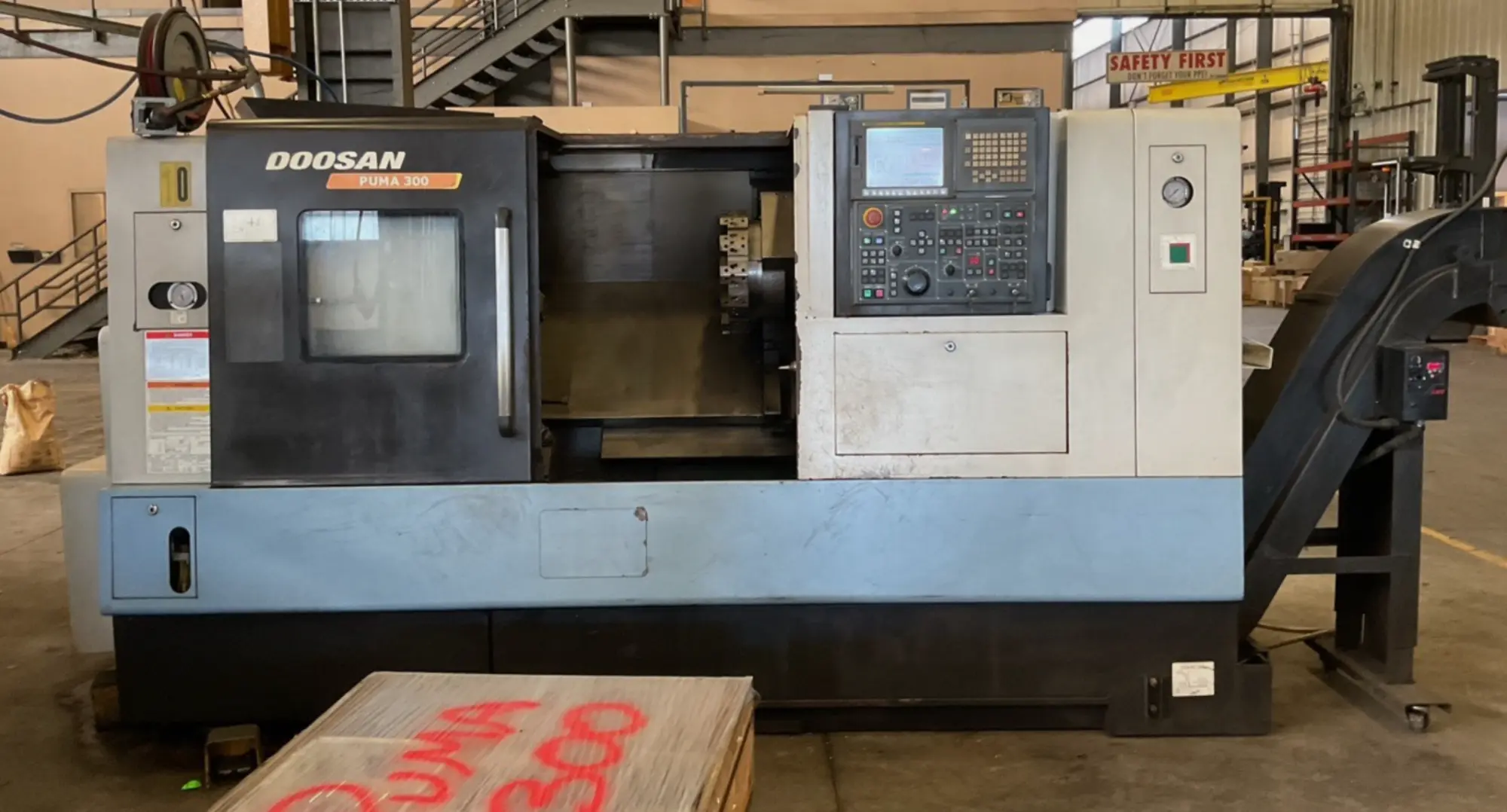

CNC Lathe in used condition. Max turning: 15.7" dia, 24.8" length. Features Fanuc control, tool presetter, programmable tailstock, 12-station turret, and chip conveyor. Approx weight: 12800 lbs.
| Swing | 22" | 558.8 mm |
| Machining Length | 25" | 635 mm |
| # Axis | 2 | 2 |
| Chuck Size | 12" | 304.8 mm |
| Bar Capacity | 4.05" | 102.87 mm |
| Power | 35 W | 0 hp |
| Max RPM | 2,800 RPM | 2,800 RPM |
| Turning Dia | 15.7" | 398.78 mm |
| Control | CNC (Fanuc) | CNC (Fanuc) |
| Dimensions | 148″ x 87″ x 90″ High | 148″ x 87″ x 90″ High |
| Weight | 12800 lbs | 12800 lbs |
Max Turning Diameter: 15.7″
Max Turning Length: 24.8″
Max Bar Capacity: 4.05″
Swing Over Bed: 22.4″
Swing Over Carriage: 17.7″
Distance Between Centers: 32.0”
X Axis Travel: 11.1″
Z Axis Travel: 26.8″
Rapid Traverse X Axis: 787 IPM
Rapid Traverse Z Axis: 945 IPM
Spindle Nose: A2-15
Spindle Bore: 4.5″
Spindle Speed: 15 – 2800 RPM
Spindle Motor: 35 hp
Turret Capacity: 12 Stations
Turret Index Time: 0.15 Second
Tool Size: 2.4″
Tailstock Taper: MT-4
Tailstock Body Travel: 20.5″
Tailstock Quill Dia.: 3.7″
Tailstock Quill Travel: 3.7″
Approx Dimensions: 148″ x 87″ x 90″ High
Approx Weight: 12800 lbs
Fanuc CNC Control
15″ Kitagawa B-15
4.5″ Bore A2-11 Spindle
Tool Presetter
Programmable Hydraulic Tailstock
PCMCIA Card Interface
12 Station Automatic Turret
Foot Switch
Oil Skimmer
Coolant System with pump
LNS Turbo Chip Conveyor
