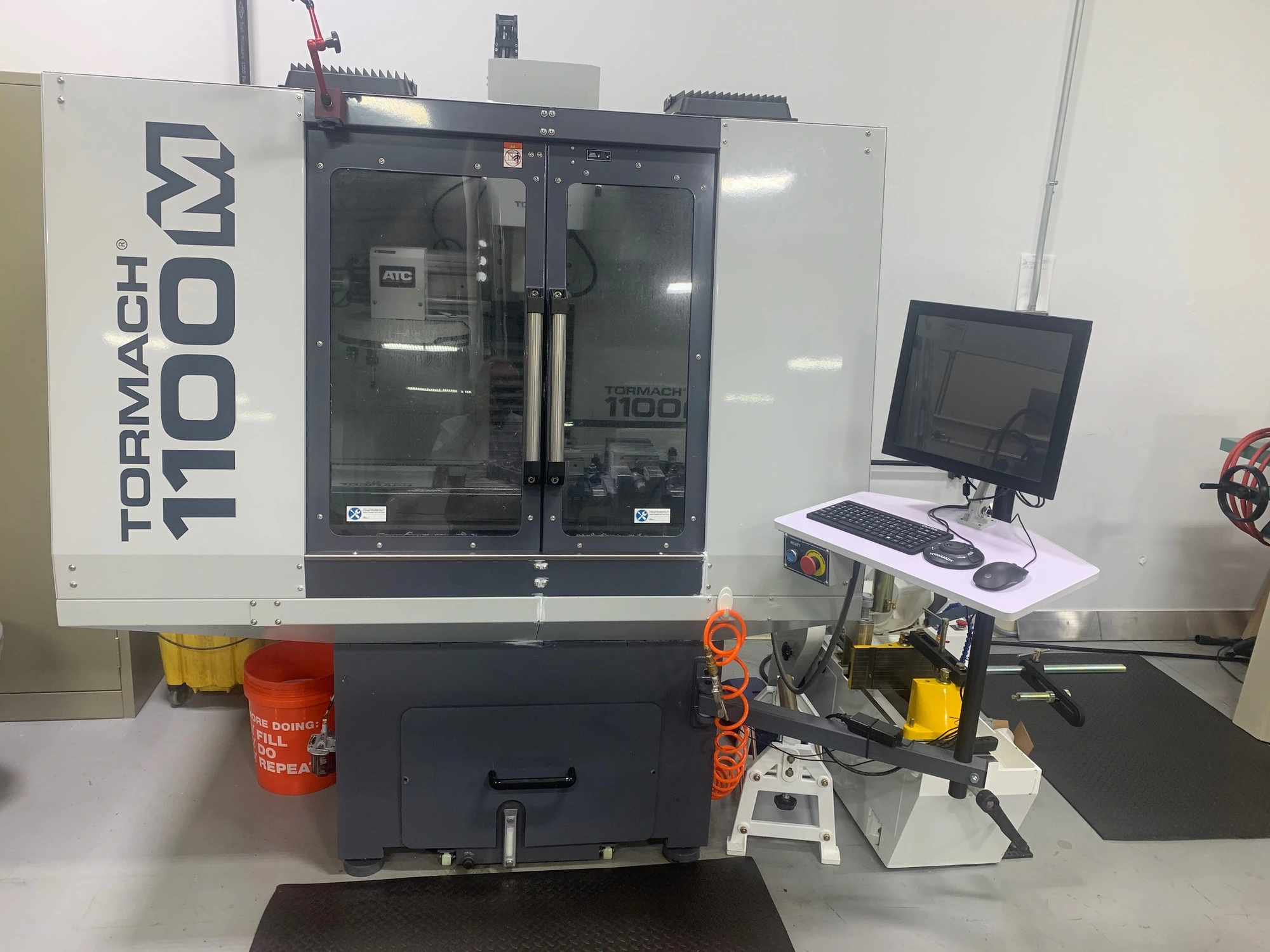

USED 2019 TORMACH 1100M

This machine is in very good condition because it has hardly been used. It has the standard accessories included.

Travels
X-Axis: 18 in.(457 mm)
Y-Axis: 11 in. (279 mm)
Z-Axis: 16.25 in. (412 mm)

Spindle
Spindle Power: 2 hp (1.5 kW)
Maximum Speed: 7500 RPM
Transmission: Poly-V belt
Spindle Taper: R8
Tapping: Tension/Compression, Auto-Reversing, Thread Mill

Maximum Feed Rate
X- and Y-Axis: 110 IPM (2.79 m/min)
Z-Axis: 90 IPM (2.29 m/min)

Machine Dimentions
Table Size: 34 in. × 9-1/2 in. (863.60 mm x 241.30 mm)
Table Slots: 5/8 in.– Three slots (15.875 mm)
Spindle Nose to Table Max Clearance: 18 in. (457 mm)
Spindle Centerline to Machine Column: 11 in. (279.40 mm)
Typical System Footprint: 69 in. × 56.5 in. (1753 mm x 1435 mm)
Overall System Height: 96 in. (2438 mm)
Typical System Weight: 1600 lb (726 kg)
Maximum Weight on Table: 500 lbs (227 kg)
