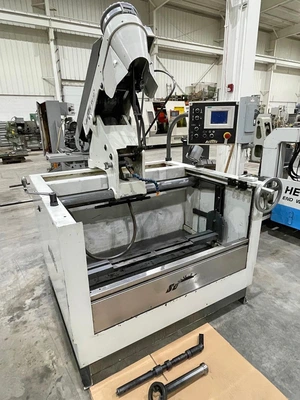

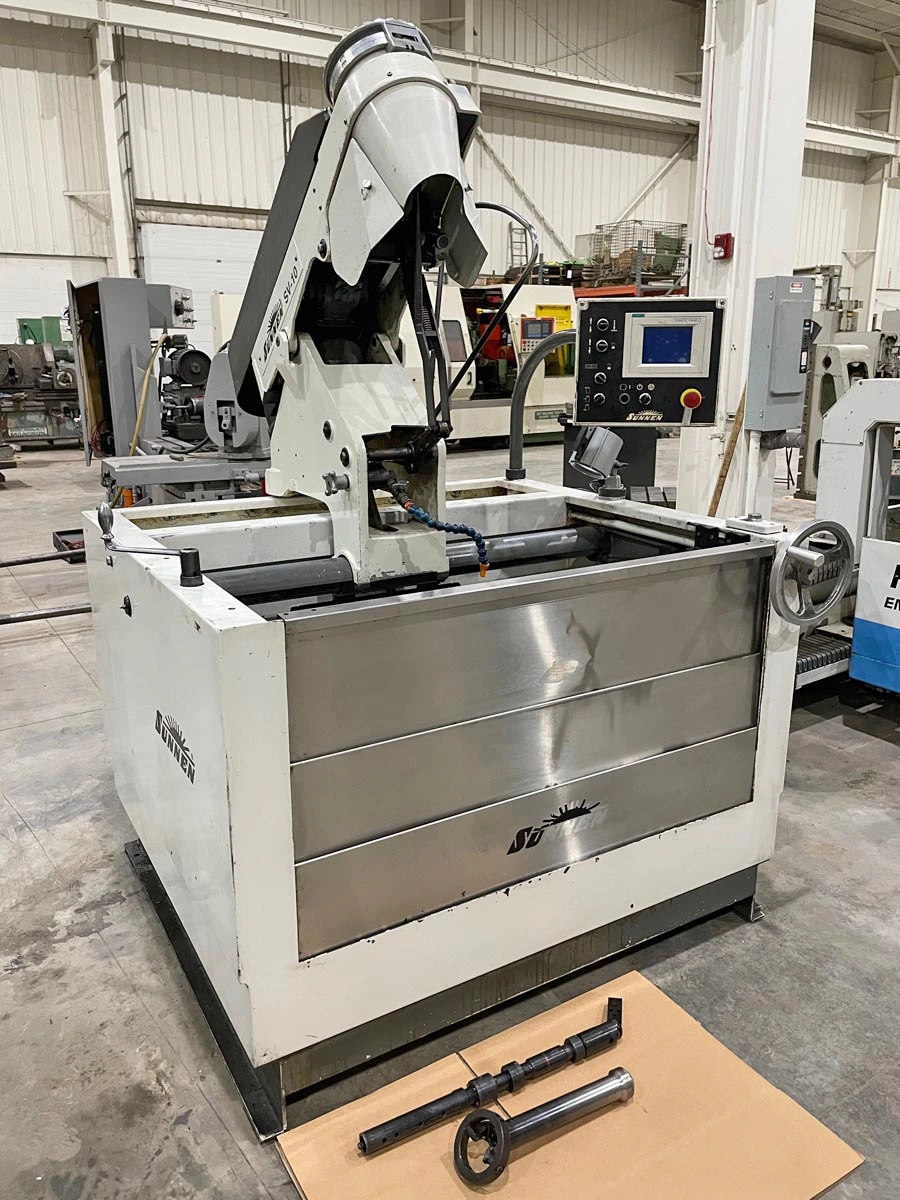

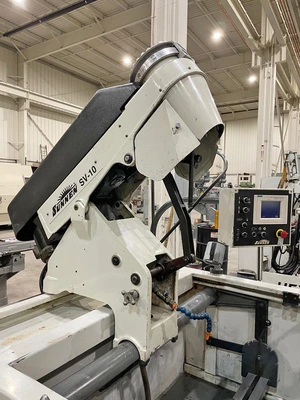

Sunnen SV-10-D “Cylinder King” Vertical Hone

Stock number: ET-5697
(1) used Sunnen SV-10-D “Cylinder King” Vertical Hone
Serial Number: 4E1-1101 New: 2006
CATALOG SPECIFICATIONS:
Sunnen Cylinder Hone Length Range:
Standard …………11″ Max
w/Special Tooling ………18″ Max
Bore Diameter Range from 3/4″ to 8″
Workpiece Capacities:
Weight (including fixture)…………1,496 # Max
Max Size…………46″L x 22″W x 26.5″H
Spindle:
Speed – Variable from 90 to 350 RPM
Motor…………3 HP
Stroker:
Speed – Variable from 40 to 80 SPM
Length…………Up To 9″
Head Travel (manual) …………35″
Honing Fluid/Filter System
Capacity…………55 Gals.
Weight…………1,900 #
Dimensions – Approximate…………90″ Wide x 73″ Deep x 87″ High
EQUIPPED WITH:

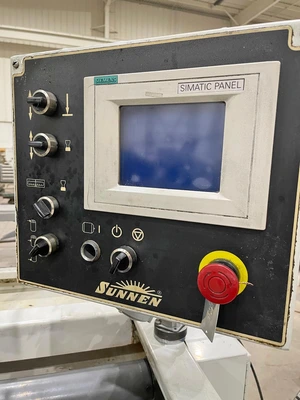

Siemens Simatic TOUCH PLC Control
Full bore profile display
Programmable auto dwell
Built in calculator for crosshatch, stroke, and spindle speed Multi-position rollover fixture Mechanical power stroking Stroke adjustment and positioning Built in coolant filtration system
Settling tank
(2) Filter cartridges
Operator’s light
Assorted manuals
Location: Wixom, MI
