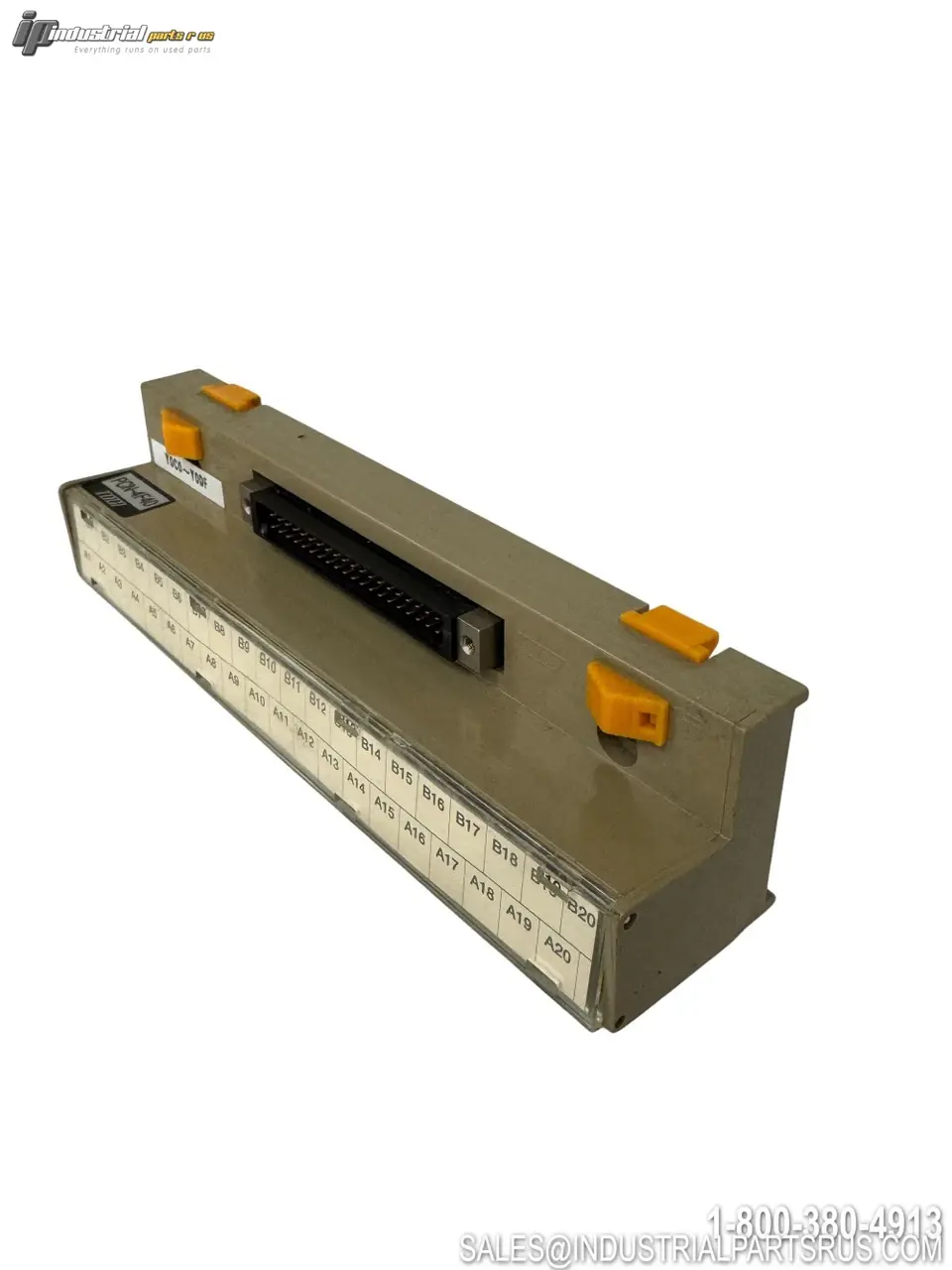

The Togi PCN-4F40 is a 40-pole interface terminal block designed to connect between PLCs and field devices. It features a screw terminal connection system with FCN connector compatibility and supports both DIN rail and direct mounting configurations.
Specification
Value
Brand
Togi
Model/Part Number
PCN-4F40
Product Type
Interface Terminal Block
Series
PCN
Number of Poles
40
Connection Type
Screw Terminal (Sems Screw)
Connector Type
FCN
Pitch
7.62mm
Rated Voltage
125V
Rated Current
1A
Operating Temperature
-10°C to +50°C
Cable Size
1.25mm
Mounting Type
DIN Rail/Direct Mounting
Terminal Method
Embedded Screw (Y Terminal)
Material
PPO
Width
40mm
We warranty all items for 30 days from date of purchase.
| Weight | 1.00 LBS | 1.00 LBS |
SKU: AI1306
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: Togi
Part Number: PCN-4F40
Shelf: E-8 Tub 5
Model: PCN-4F40
MPN: PCN-4F40
Type: Interface Terminal Block
