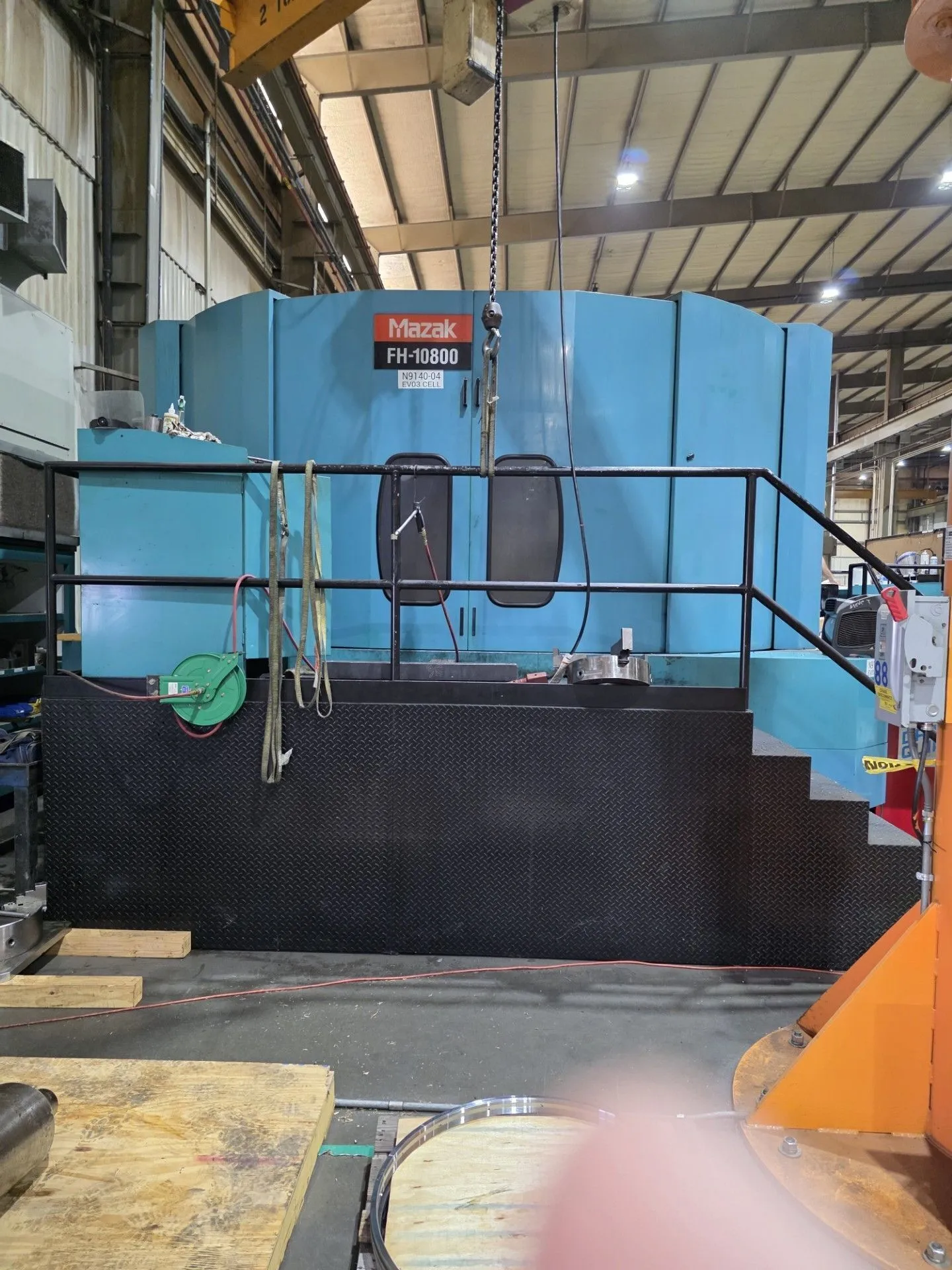

2009 Mazak FH-10800 Horizontal Machining Center With Mazatrol PC-Fusion-CNC 640M
| X | 66.9" | 1,699.3 mm |
| Y | 55.1" | 1,399.5 mm |
| Z | 55.1" | 1,399.5 mm |
| Power | 50 hp | 37.3 kW |
| RPM | 7,000 RPM | 7,000 RPM |
| # ATC | 120 | 120 |
| Taper | CAT 50 | CAT 50 |
| Pallet-W | 39.3" | 998.22 mm |
| Pallet-L | 39.3" | 998.22 mm |
| # Axis | 4 | 4 |
Model..........................................FH 10800 Horizontal Machining Center
Year...........................................2009
Control........................................Mazatrol PC-Fusion-CNC 640M
Pallet Size....................................39.4" x 39.4"
X-Axis.........................................66.93"
Y-Axis.........................................55.12"
Z-Axis.........................................55.12"
Top of Pallet..................................3.94"Min/59.06"Max
Pallet Center..................................7.87"Min/62.99"Max
Tool Capacity..................................40
Table Index....................................NC Rotary 360,000 pos
Spindle Nose...................................CAT#50
Spindle Horsepower 30 Min/Cont.................50/40 HP
Spindle Torque.................................867.6ft/lbs. (Hi-Torque Package)
Spindle RPM....................................7,000
Number of Ranges...............................2 Range
Machine Weight.................................66,138 lbs.
Windows 2000 Operating System
Performance CNC
Inch/Metric Conversion
213PSI Thru Spindle Coolant w/Hi-Pressure prep 1000psi
Prep for MMS-B OMP60
Hinge type Chip Conveyor for Steel
Hi-Torque Spindle 7000rpm
NC Rotary Table 360,000 Position
2 Pallets
