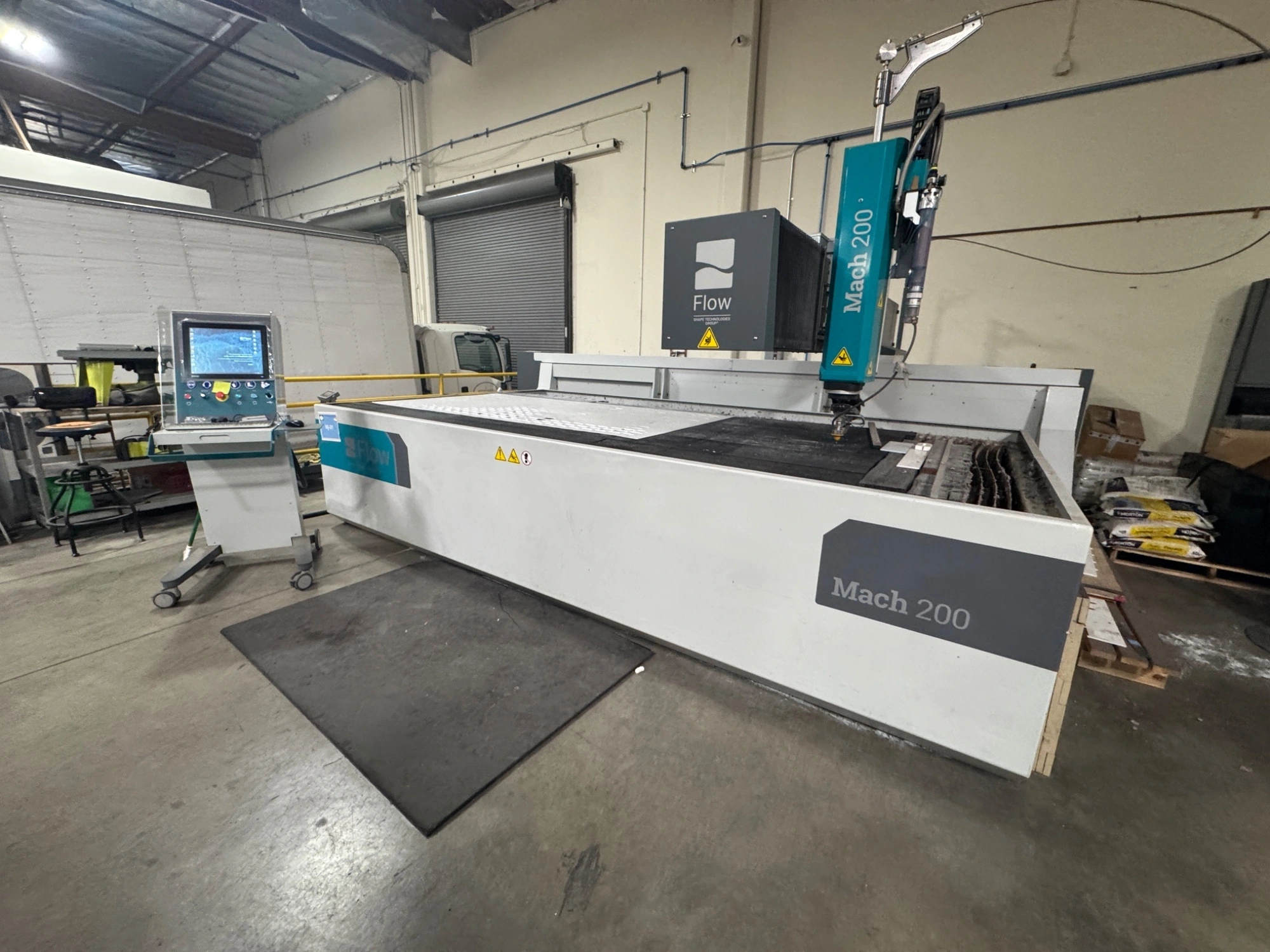

USED 2021 FLOW MACH 200 4020-X5
Overview
Description
2021 FLOW Mach 200 4020 Pivot CNC Water Jet Cutting System available, featuring a powerful 60,000 PSI pump, 5-axis articulating head, and large 6' x 13.1' table. Only 1,732 hours. Ideal for precision cutting tasks with high accuracy and reliability.
Specifications
| Pump Output | 60,000 PSI | 4,136.8 bar |
|---|---|---|
| X Axis | 156" | 3,962.4 mm |
| Y Axis | 72" | 1,828.8 mm |
| Z Axis | 8" | 203.2 mm |
| Table Size-W | 6' | 1,828.8 mm |
| Table Size-L | 13.1' | 3,992.9 mm |
| Power | 30 hp | 22.4 kW |
2021 FLOW Mach 200 4020 Pivot CNC Water Jet Cutting System #8186
Machine Specifications:
Table size: 1828.8 mm x 3962.4 mm (72 in. x 156 in.)
Pump operating pressure: 60,000 psi
Z-axis travel: 203 mm (8 in.)
Catcher tank load rating
Mild steel: 1465 kg/m² (300 lb/ft²)
Stainless steel: 977 kg/m² (200 lb/ft²)
Acceleration: 0.05 G
Contouring speed maximum: 7620 mm/min (300 in./min)
Rapid traverse maximum: 10,160 mm/min (400 in./min)
Ballbar circularity: ± 0.09525 mm (0.00375 in.)
Linear straightness accuracy: ± 0.0991 mm (0.0039 in.)
Repeatability: ± 0.051 mm (0.002 in.)
Operating parameters
Mixing tube for Standard Waterjet: 4 in. length
Mixing tube for Pivot+ Waterjet: 3 in. length
Standoff: 2.54 mm (0.10 in.)
Pivot+ Waterjet: 60° tilt maximum
Electrical
Power supply: 3-phase
Voltage/frequency: 480 VAC/60 Hz
Main circuit breaker size: 20 amp
Equipped With:
1,732 Hours on Meter
5-Axis Flow Articulating Head
60,000 psi Pump
FLow Paser CF900 Garnet Hopper
