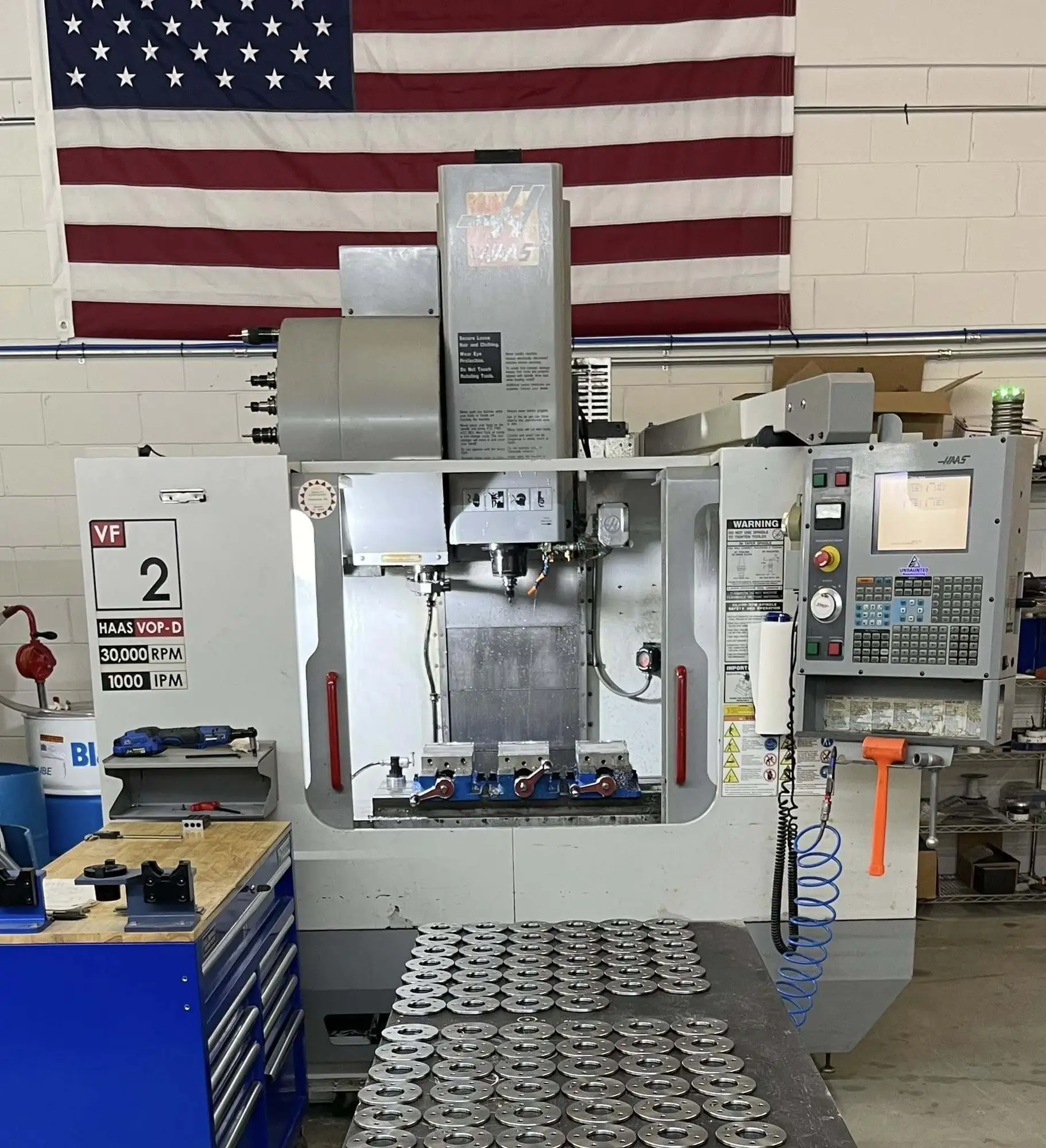

Usedl Machining Center, features a 30" X, 16" Y, 20" Z travel. Powered by 20 hp, achieving up to 30,000 RPM. Equipped with 24 ATC, BT-30 Taper, and 36" x 14" table. Includes spindle chiller, chip auger, and 4th-axis wiring.
| X | 30" | 762 mm |
| Y | 16" | 406.4 mm |
| Z | 20" | 508 mm |
| Power | 20 hp | 14.9 kW |
| RPM | 30,000 RPM | 30,000 RPM |
| # ATC | 24 | 24 |
| Taper | BT-30 | BT-30 |
| Table-W | 14" | 355.6 mm |
| Table-L | 36" | 914.4 mm |
| # Axis | 3 | 3 |
| Control | CNC (HAAS) | CNC (HAAS) |
| Dimensions | 88″ x 100″ x 106" | 88″ x 100″ x 106" |
| Weight | 8000 lbs | 8000 lbs |
Maximum Tool Diameter (full): 3.5″
Maximum Tool Weight: 12 lbs
Table Size: 36″ x 14″
Max Weight on Table: 3000 lbs
Wired for 4th axis
Wired for spindle probe
Spindle Chiller
Chip Auger
25 BT30 tool holders
