| Tonnage | 66 T | 59.874 t |
| Angle (L1) | 4" | 101.6 mm |
| Angle (L2) | 4" | 101.6 mm |
| Angle (T) | 0.3125" | 7.9375 mm |
| Power | 7.5 hp | 7.5 hp |
| Throat | 7.875" | 200.02 mm |
| Stroke | 1.5" | 38.1 mm |
| Dimensions | 47 x 30 x 64 | 47 x 30 x 64 |
| Weight | 3596 lbs | 3596 lbs |

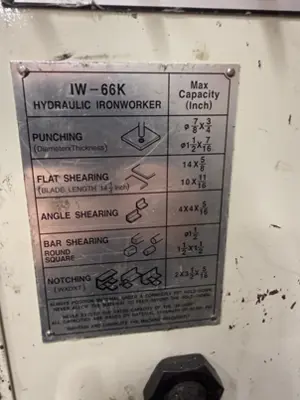

Specifications (subject to buyer verification):
Punching:
Punching Pressure 66 Ton
Punch Capacity 7/8″
(diameter x thickness) 1-1/2″ x 7/16″
Throat Depth S: 7-7/8″
Maximum Stroke Length 1-1/2″
Cycles/Min. (15 mm stroke) 34
Working Height Up to Die 41-1/4″
Punching Pressure 66 Ton
Punch Capacity 7/8″
(diameter x thickness) 1-1/2″ x 7/16″
Maximum Stroke Length 1-1/2″
Cycles/Min. (15 mm stroke) 34
Working Height Up to Die 41-1/4″
Flat Shearing:
Flat Bar Shearing 14″ x 5/8″
(width x thickness) 10″ x 11/16″
Blade Length 14-1/4″
Working Height 31-3/4″
Flat Bar Shearing 14″ x 5/8″
(width x thickness) 10″ x 11/16″
Blade Length 14-1/4″
Working Height 31-3/4″
Angle Shearing:
At 90 Shearing 4″ x 4″ x 5/16″
Working Height 42″
Bar Shearing:
Round Bar Shearing 1-1/2″
Square Bar Shear 1-1/2″ X 1-1/2″
Working Height 41-1/4″
At 90 Shearing 4″ x 4″ x 5/16″
Working Height 42″
Bar Shearing:
Round Bar Shearing 1-1/2″
Square Bar Shear 1-1/2″ X 1-1/2″
Working Height 41-1/4″
Notching:
Rectangular Notcher (W x D x T) 2′” x 3-1/2″ x 5/16″
Working Height 41-1/4″
Rectangular Notcher (W x D x T) 2′” x 3-1/2″ x 5/16″
Working Height 41-1/4″
Other:
Electric Power (HP) 7.5 HP, 208 Volt, 3 Ph
Net Weight (approx.) 3,596 lbs
Machine Dimensions 47″ x 30″ x 64″- (L x W x H) (approx.)
