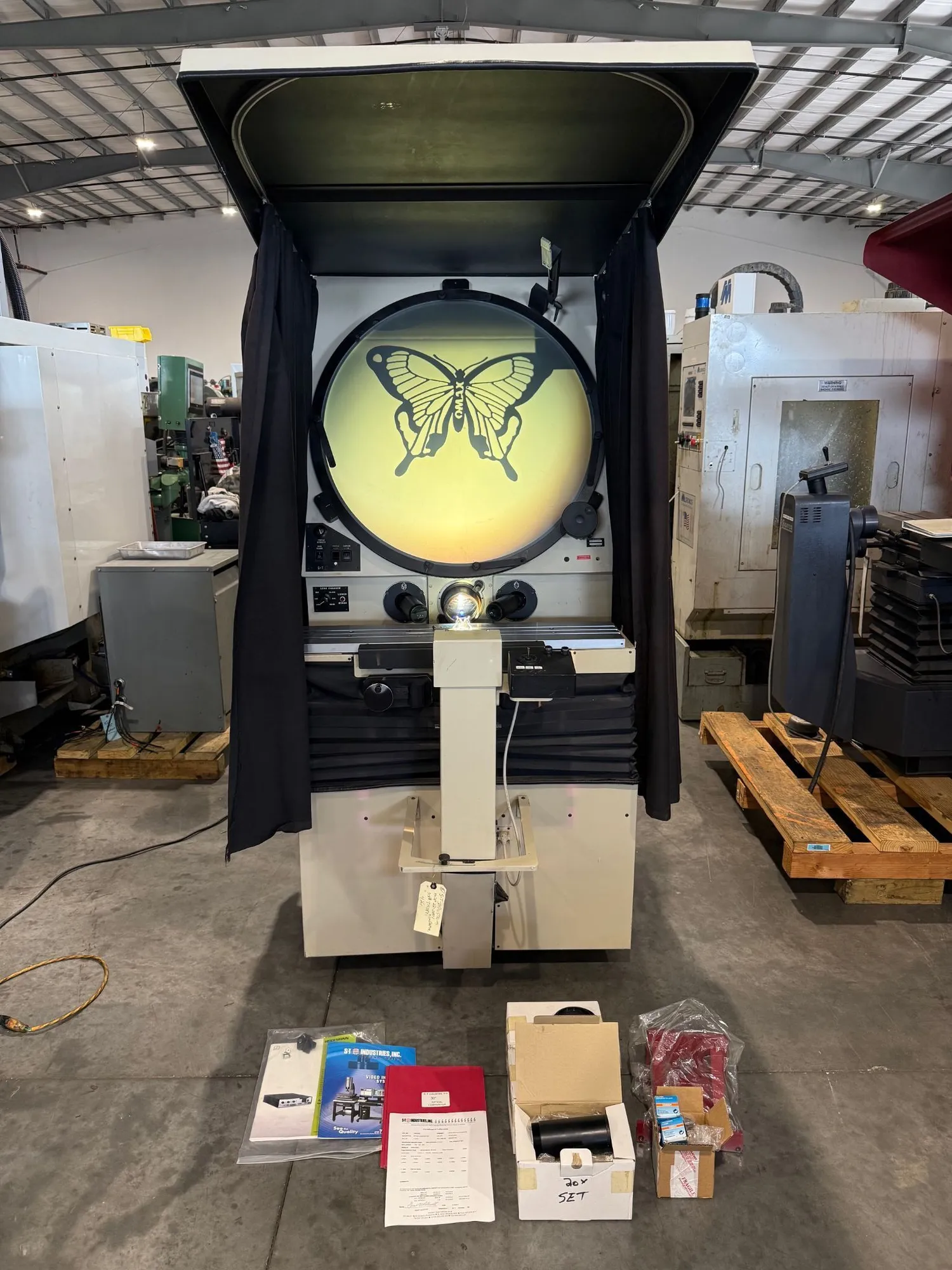

30” S-T Industries 22-2801 Optical Comparator 2014’ #8254
| Dimensions | 75” x 96” x 80” H | 75” x 96” x 80” H |
| Weight | 18500 Lbs. | 18500 Lbs. |
30” S-T Industries 22-2801 Optical Comparator 2014’ #8254
Reference # 8254
Model # 22-2801-2300
Serial # T140801
Year of manufacture- 2014’
Screen size- 30”
Work table- 8” x 35”
Table load capacity - 500 Lbs.
X axis- 12”
Y axis- 9”
Focus- 3”
Digital protractor- .01°
Magnification lenses- 10X,20X,50X
Edge detection Protractor
Curtains
Manual
Freight bracket
Machine is wired for 110 volt / single phase
Machine dimensions- 75” x 96” x 80” H
Machine weight- 1,800 Lbs.
