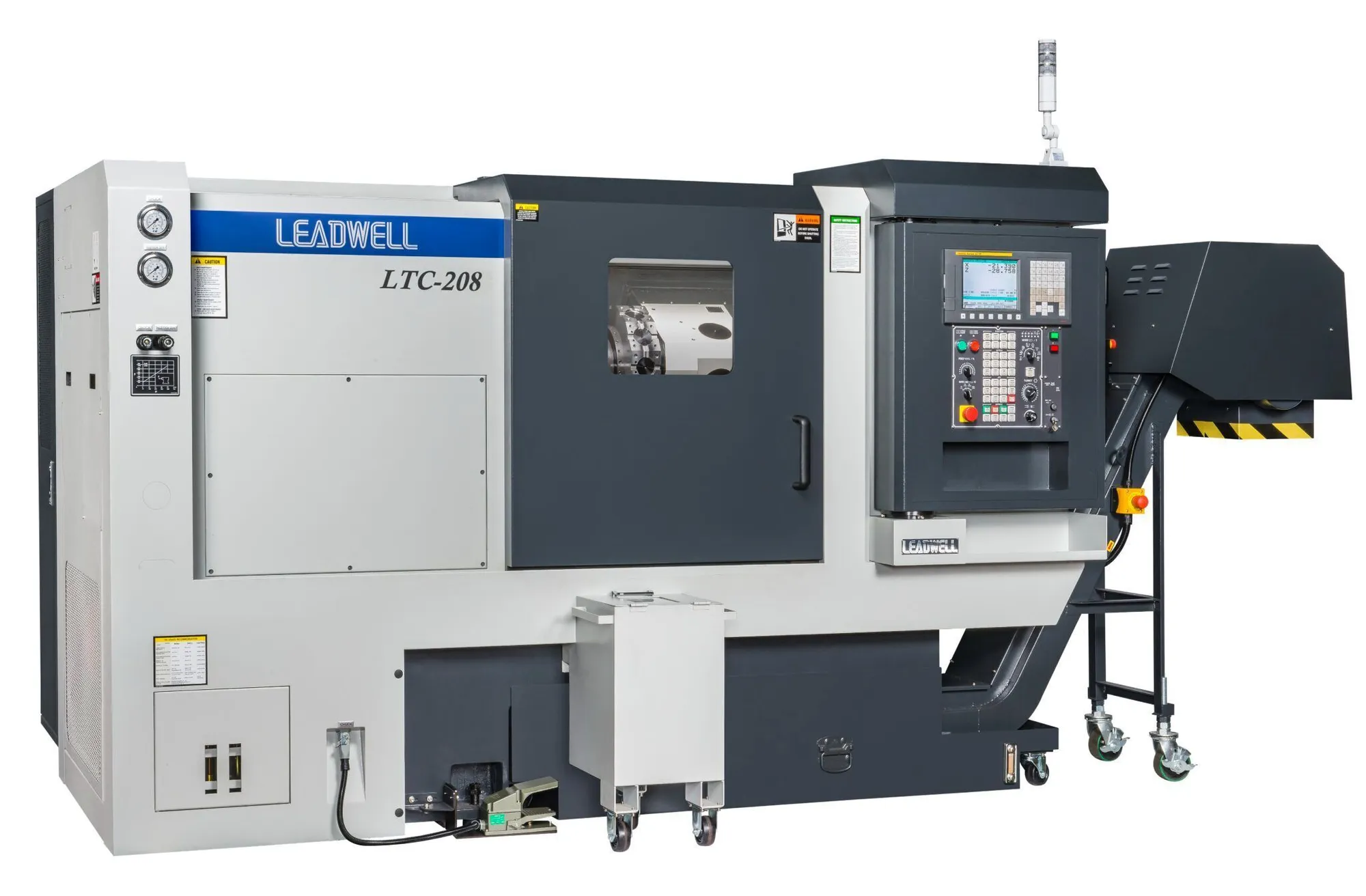

8" Chuck ~ 2.5" Bar Cap. ~ 19.7" Swing ~ 12 Station Turret ~ 20 Hp. Spindle Motor *, 20Hp. Fanuc B22i A/C Spindle Motor*, 8" 3-jaw Power Chuck with 2.5" Bar Capacity, 4,500 RPM Spindle, Highly Rigid 30 deg. Slant Bed Construction - Box Ways, 12 Tool Station Bi-directional Servo Driven Turret, Manual Tailstock with Programmable Quill, Parts Catcher with Bucket, Chip Conveyor and Bucket, Tool Setter,Bar Feed Preparation, Flood Coolant Unit, Heat Exchanger, (3) set of Soft Jaws & (1) set of Hard Jaws, Standard Tooling Package
| Swing | 19.6" | 497.84 mm |
| Machining Length | 20" | 508 mm |
| # Axis | 2 | 2 |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 2.5" | 63.5 mm |
| Power | 25 hp | 18.6 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Turning Dia | 15.75" | 400.05 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC | CNC |
| Dimensions | 133 x 71 x 65 in | 133 x 71 x 65 in |
| Weight | 7,700 lbs | 7,700 lbs |
