Flagler 22 Ga. Portable Pittsburgh

Ideal for small to medium sized sheet metal contractors or jobsite manufacturing.

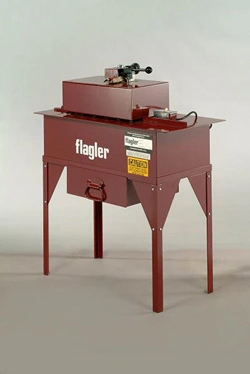

Shown with optional

Flanging Attachment and Floor Stand
Product description
Specifications:
Capacity: 22 gauge and lighter.
Depth of Pocket: 5/16″. Uses approximately 1″ of material.
Extended Shafts: For 1 set of Aux. Tooling.
Speed: Approximately 17 feet per minute.
Motor: 1/2 HP 115/1/60/1800 RPM .
Drive: Vee Belt.
Base: Arc Welded Steel.
Dimensions: 34″ long, 16″ wide, 14″ high
Shipping Weight: Approximately 200 pounds.

Auxiliary Tooling Available
3/8” Double Seam Rolls
1 1/8” Drive Cleat Rolls
3/8” Right Angle Flange
1/4” x 180 Degree Closed Hem Rolls (26 Ga.): Auxiliary Tooling Available
3/8” Double Seam Rolls
1 1/8” Drive Cleat Rolls
3/8” Right Angle Flange
1/4” x 180 Degree Closed Hem Rolls (26 Ga.)
