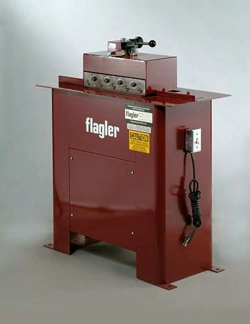

Flagler 20 Ga. Standard Pittsburgh

Ideal for small to medium sized sheet metal contractors or for fitting departments of large manufactures.

This machine features hardened feed gauges and 3 piece shaft/roll/gear design.
Product description
Specifications:
Capacity: 20 to 26 gauge.
Depth of Pocket: 5/16″. Built in Pittsburgh Lock Rolls. Uses approximately 1″ of material.
Extended Shafts: For 1 set of Aux Tooling.
Speed: Approximately 23 feet per minute.
Motor: 3/4 HP 115/1/60/1800 RPM .
Drive: Vee Belt.
Base: Arc Welded Steel. Heavy top plate.
Dimensions: 36″ long, 16″ 1/2″ wide, 37″ high Feed table height 32 5/8″
Shipping Weight: Approximately 320 pounds.

Auxiliary Tooling Available
3/8” Double Seam Rolls
1 1/8” Drive Cleat Rolls
3/8” Right Angle Flange: Auxiliary Tooling Available
3/8” Double Seam Rolls
1 1/8” Drive Cleat Rolls
3/8” Right Angle Flange
