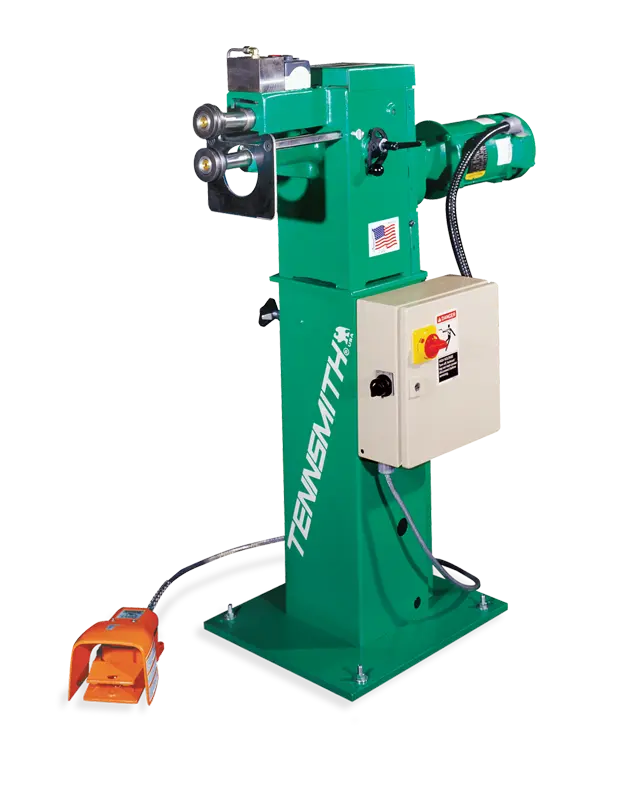

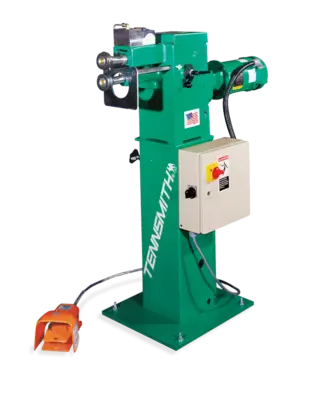

The PR-16 power rotary is a versatile machine capable of forming numerous applications up to 16-gauge mild steel material. Standard features include variable speed control, heavy cast body with steel body stand.
Product description
A 3/4-hp gear motor provides smooth operation. The forming pressure is controlled by a crank on the top of the frame on the standard unit; an optional hydraulic powered forming pressure unit is available. Rolls are ordered separately for this unit.
Crimping, single beading, ogee beading, elbow edging, flattening, wiring, burring and turning rolls are available.
Capacity, Mild Steel: 16 Gauge
1.6 mm
Capacity, Stainless Steel: 20 Gauge
1.0 mm
Throat: 10 in.
254 mm
Distance, Shaft Center to Center: 2-1/2 in.
63.5 mm
Gear Ratio: 3:1
Working Speed Variable: 3 to 45 rpm
Motor: 3/4 hp
Shipping Weight: 350 lbs.
159 kg
