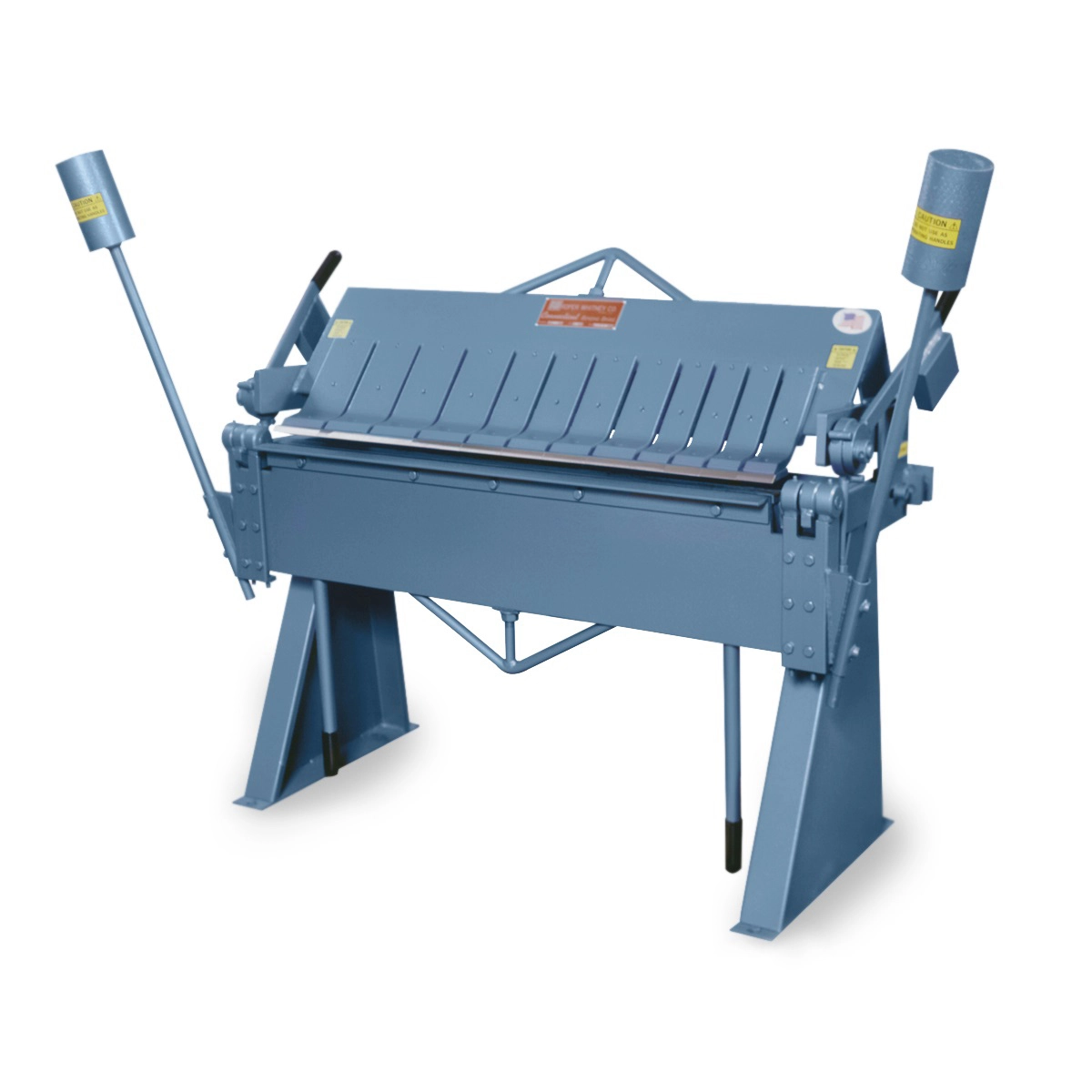

U-616-6 Bending Brake

Connecticut floor mounted manual bending brakes are precision machines designed for accurate bending within rated capacities. Features of the Connecticut box and pan bending brake are a 6-inch depth of box capacity, 6 feet of 16 gauge bending capacity, positive clamping pressure adjustment, apron stop rod for repeat bends, replaceable bushings and hinge pins, long handles for extra leverage, work support angle bar for full capacity 1-inch minimum flange, improved leg design for lighter weight, all steel construction with no castings, heavy tie rods for minimum deflection, removable bending bar and angle, adjustable apron hinges and positive rear material gauge adjustment. Connecticut Series box and pan brakes are an economically-priced solution for your bending needs and will provide years of trouble-free service.
Product description

1800 lbs: 1800 lbs
91 × 54 × 35 in: 91 × 54 × 35 in
72 in/ 1830 mm: 72 in/ 1830 mm
16 ga/ 1.60 mm: 16 ga/ 1.60 mm
1/4 in/ 6.35 mm: 1/4 in/ 6.35 mm
24 ga/ 0.61 mm: 24 ga/ 0.61 mm
1/4 in/ 6.35 mm: 1/4 in/ 6.35 mm
1 5/8 in/ 41 mm: 1 5/8 in/ 41 mm
3, 4 and 5 in/ 76, 101 and 127 mm: 3, 4 and 5 in/ 76, 101 and 127 mm
6 in/ 152 mm: 6 in/ 152 mm
1 1/8 in/ 28.5 mm: 1 1/8 in/ 28.5 mm
