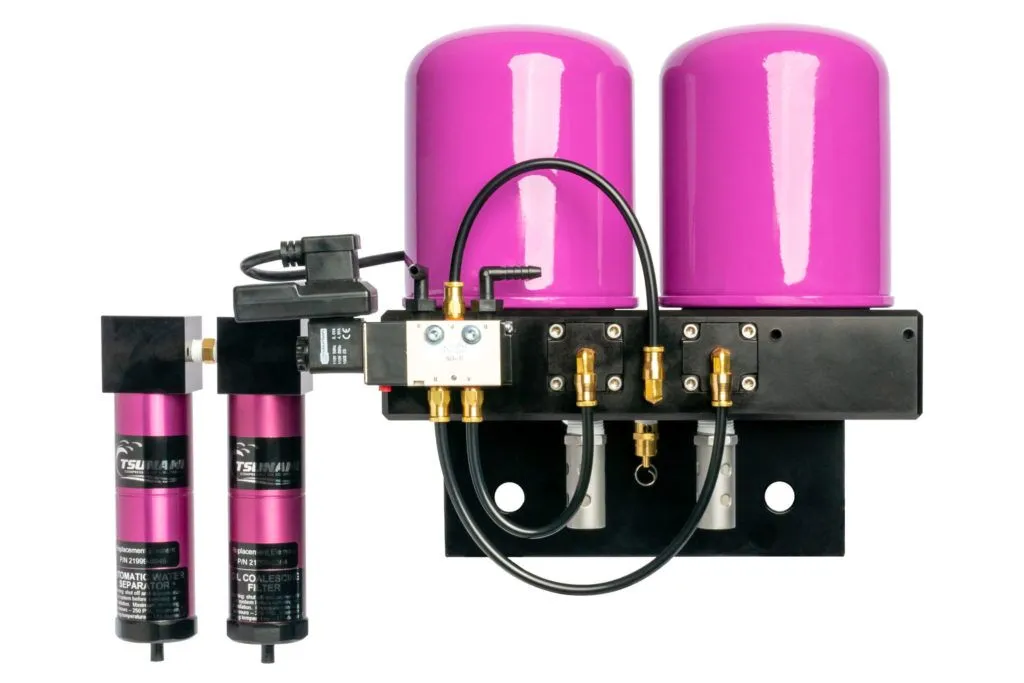

Tsunami Pure 5 Series 5-HP 1/2″ Regenerative Air Dryer (17 CFM)

Whether supplying air to your entire facility or isolating a specific tool or application, Ultra Series regenerative drying systems provide world class Tsunami clean air technology at an affordable price. Complete with pre-filters, programmable logic controller (PLC), and automatic drains.
Product description
Air filtration single most effective step that you can take to improve cut quality, extend consumable life and protect your plasma cutter.
Tsunami 17 CFM Regenerative Dryer System
Delivers very dry, clean air down to -80°F dew point
Pre-filtration to assure removal of water, oil and particulates before entering the dryer
Compact, Expandable Design
Comes complete with pre-filter, auto drains & mount bracket
Installs in minutes between receiver tank and piping
Great for mobile operations; auto paint, powder coating, etc.
Stage 1: Water Separator
Water and particulates are removed down to 10 micron
Stage 2: Oil Coalescing Filter
Oil aerosols are filtered down to .001 ppm and particulates are trapped down to .01 micron
Lowest operating cost & maintenance of any dryer
1/4″ Inlet & 1/2″ Outlet NPT Connectors
Max inlet pressure is 175 PSI; Min 80 PSI
Requires connection to 120-volt outlet
Handles up to 150°F inlet air temperature
Float Drain
Automatically discharges drainage
Float type drain valve drastically reduces maintenance
