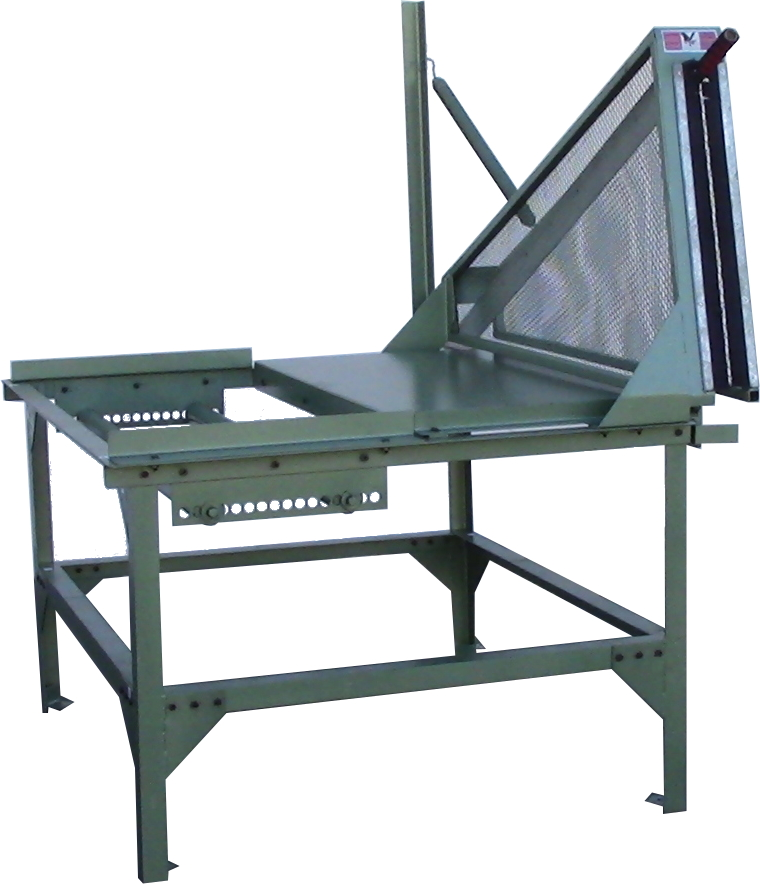

This combination payoff cradle and hand shear cuts light gauge sheet metal, paper and thin plastic.
Scissor type with a hardened blade.
Easily cuts:
Stainless steel
Galvanized steel
Aluminum
PVC
ASJ
Kraft paper
And other jacketing materials
Stainless steel
Galvanized steel
Aluminum
PVC
ASJ
Kraft paper
And other jacketing materials
Cuts galvanized or stainless jacketing up to 26-gauge, aluminum up to 22-gauge.
Bearing mounted roller cradle supports bulk rolls of material up to 400lbs.
No material mandrel required.
Point of operation safety guard.
SeeTK Jacketing Shear Manual.
Product description
Specifications:
Weight: 650 lbs
Dimensions: 55 x 74 x 70 in
Capacity: 26-gauge galvanized/stainless steel & 22-gauge aluminum
Maximum Sheet Width: 48″
Table top height or working surface height: 34″
