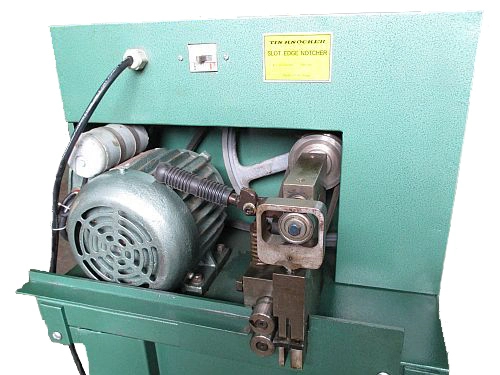

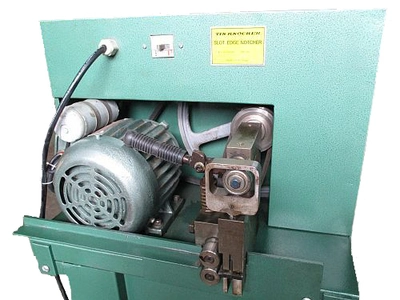

The TK Edge Notcher can now be ordered with either: Slot Notch or “V” Notch! Includes both sets of tooling 1 machine to 2 notches.
See TK Edge Notcher Manual.
Product description
Machine Specifications:
Motor – 1/3 HP, 110v, Single Phase, 60Hz AC
Capacity – 20 Gauge Mild Steel
Speed – Variable Minimum 18 FPM
Overall Dimensions – 21″ Long, 16 1/2″ High, 13″ Deep
Approx. Shipping Weight – 290 Lbs.
Specifications V Notch:
Depth of notch range: 0 to 3/4″
V is at 15 degrees
Spacing – 3/4″ to 1 7/16″
Specifications Slot Notch:
Depth of Notch – 0 to 3/4″
Width of Notch – 3/16″
Spacing – 3/4″ to 1 7/16″
