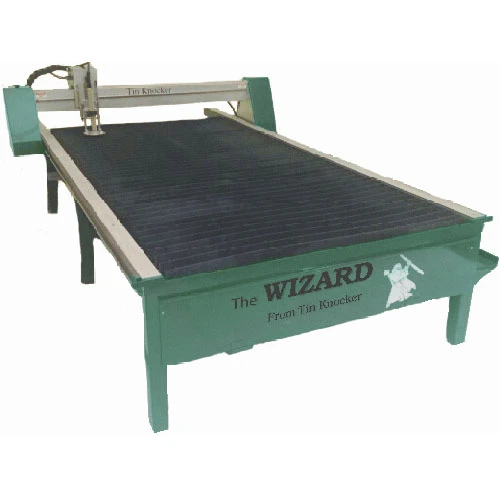

The Wizard plasma cutting system was developed specifically for the HVAC contractor/fabricator. It is designed to do all that a user could want and meet the user’s budget. Nothing has been sacrificed except cost to our customer. YOU WILL NOT FIND GREATER VALUE IN A NEW PLASMA MACHINE! Available from your local distributor.
CUTTING TABLE FEATURES
Heavy duty 5’x10′, all welded steel construction capable of a 2000 lb load (full sheet of 1″plate)
2 1/2″ x 60″, 16 ga. slats for economical replacement
Efficient down draft exhaust design, activated & deactivated automatically as cutting starts & stops
Hinged clean out doors at both ends makes cleanout easy. Slat removal not necessary.
X axis has dual drive motors and simple maintenance free roller guides for smooth travel.
Y axis has low maintenance V Groove Wheels and Rails
Homing feature that automatically squares the gantry
Direct drive, high torque motors to eliminate position error
Solid 4″x 6″ thick wall tube gantry
Aluminum gantry construction means less moving weight, great acceleration and enhanced repeatability
Gantry drive with 3/4″ wide rust and grease free, industry proven open gear belt drive used on robotic applications
Drive system delivers position repeatability of approx. +/- .0005in
Cutting speed 300ipm, rapid speed 600ipm
Gantry has been tested to speeds of 1000 IPM
Precision Drop Head Control
Magnetic break away torch protection
The Wizard plasma cutting system was developed specifically for the small to medium size HVAC contractor. The Wizard is a full featured machine with all the capabilities of the more expensive plasma cutting systems, but is affordably priced.

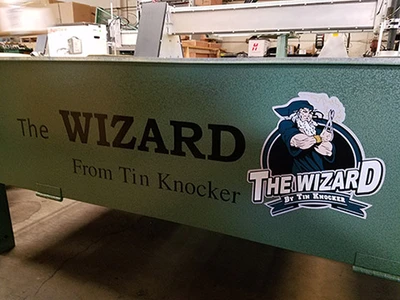

The TK Wizard Plasma Table: Proudly Built in the USA, with domestic and foreign components.
Product description
Machine is equipped with an controlled by a standard laptop, replaceable locally. CNC control software is simple and intuitive. Even if you are new to CNC plasma cutting, you will be up to the task in no time.
Windows tm operating system
SHOP DATA SOFTWARE: Quickduct CAM Master
Full HVAC fitting library and 3-D viewing of parts
Automatic nesting of parts minimizes scrap and maximizes efficiency
Estimating and costing functions
Cut list
Over 60 common geometric shapes
Label printing and MORE
Very user friendly. If you know HVAC sheet metal, this software will “talk to you”
Truly the most advanced and complete software package offered in the industry
Remote training done on your Plasma Table, in your shop!
Free telephone and internet support for 1 year to the original buyer. Our technicians can log directly on to your machine for real time support while you are learning or experiencing an issue, so you can get back to work quickly.
HYPERTHEM POWERMAX 45XP or VICTOR Thermal Dynamic 40A power supply (both rated 1/4″ with piercing)
Large power supply available (up to 1″ rated)
Limited one year, parts & labor on table. On other components, manufacturer warranty applies.
