Available in S&D Notch, TDC Notch or TDF Notch

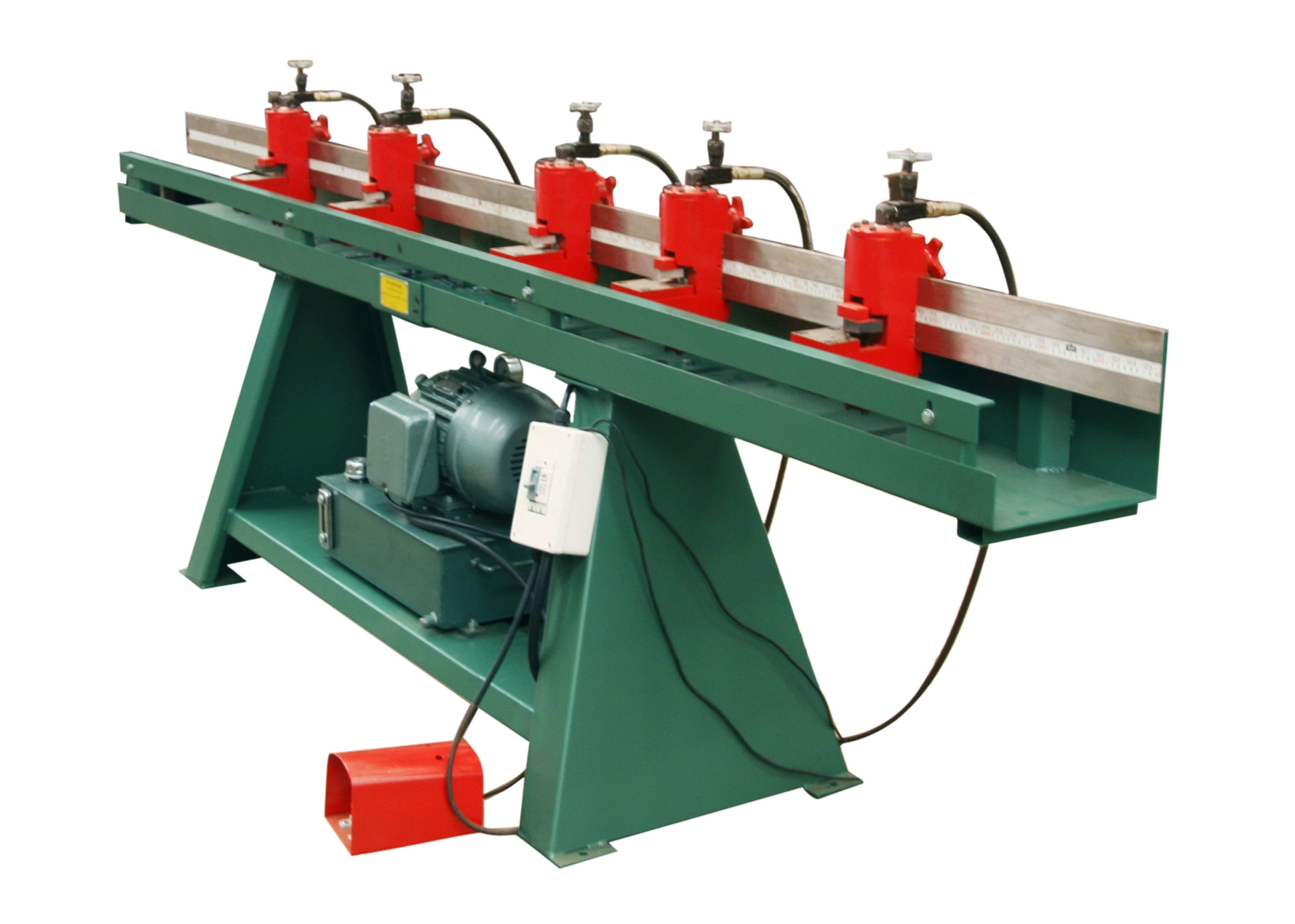

QuickNotch, Hydraulic Duct Notcher.
Notches up to 6 times faster than hand notching. This 5 headed gang notcher is a fast and easy way to notch sheet metal ducting, in preparation to receive bar, S Cleats and Drive Cleats…or other drive connections. A real money maker in that it is fast, accurate and durable.
QuickNotch allows you to gang-notch sheet metal hydraulically up to 600% faster than by hand, without layout or scribing. It’s the perfect tool for preparing bar, slip or “s” and other drive connections.
See TK 1016 Duct Notcher Manual.
Product description
Specifications:
Weight: 880 lbs
Dimensions: 79 x 36 x 36 in
Capacity: 16 – 28 gauge mild steel
No. Notching Heads: 3 V and 2 corner, for 5 total. V Notch. 1 ½” max
Motor & Electrics: 3 HP Dual Voltage,115- 230/1/60, 1800 RPM
