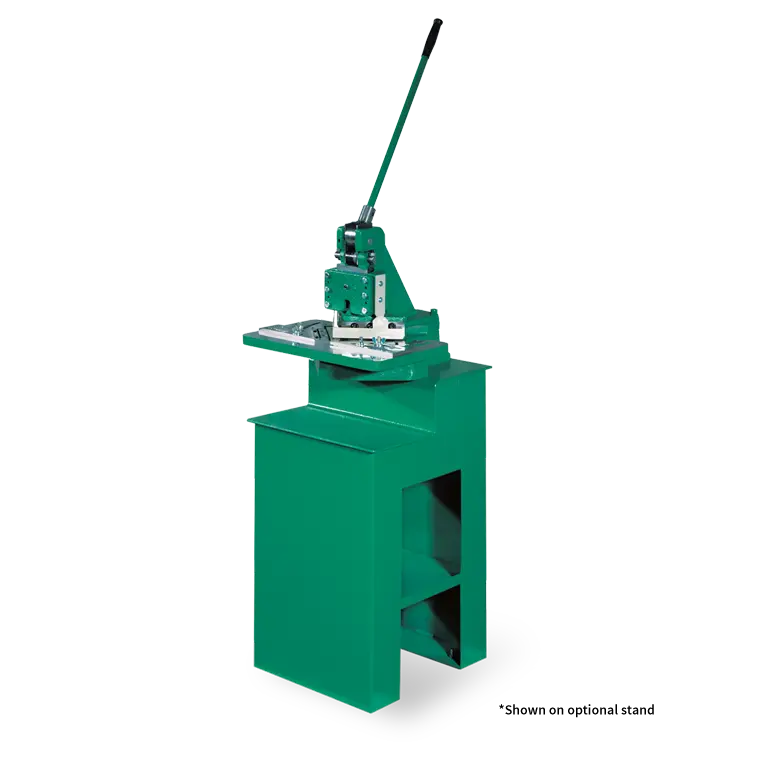

The Tennsmith notcher is a versatile, heavy-duty bench tool for shearing, notching and piercing work.
MODEL: 16-18
Product description
The heavy cast iron construction allows the notcher to be used to side shear six inches of material to its rated capacity; and the throat behind the upper ram is beveled on one side to permit long strips of material to pass without restriction.
Notches of more than 90 degrees can be accomplished in two operations. The upper blades can be reversed for a “nose to heel” cutting action; and the ram stroke can be controlled by means of two set screws to permit limited throat piercing and knockout operations.
Available Options
Tab Blades
Heavy-Duty Fabricated Stand*
Maximum Notching Capacity, Mild Steel: 16 Gauge
1.6 mm
Maximum Capacity Piercing, Mild Steel: 18 Gauge
1.25 mm
Notch: 6 x 6 in. x 90 degrees
152 x 152 mm x 90 degrees
Dimensions, Handles Removed (L x W x H): 19 x 18 x 15 in.
238 x 257 x 381 mm
Shipping Weight: 170 lbs.
77 kg
