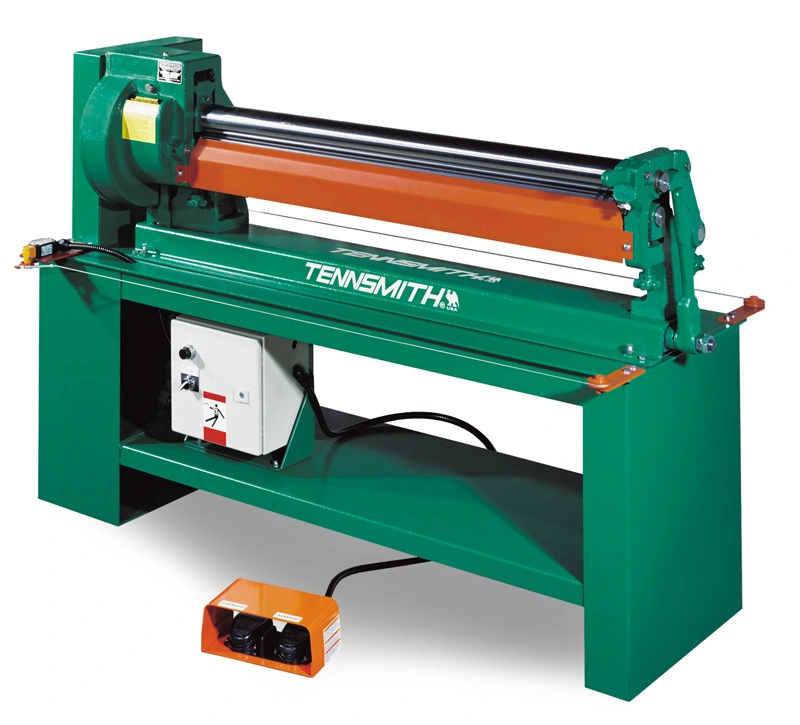

Tennsmith Slip Rolls

Tennsmith’s slip rolls combine precision-turned, ground and polished high carbon steel rolls with heavy-duty, cast iron end frames and a welded steel base to make an accurate and durable forming tool.
Product description

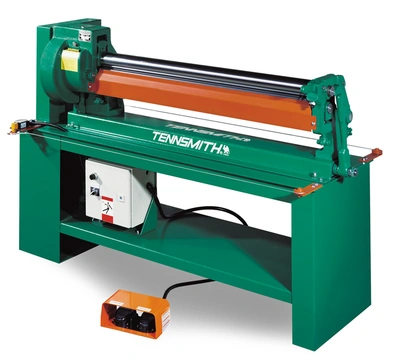

TENNSMITH’s SR48P powered slip roll combines all of the features of our SR48 initial pinch roll with the productive advantage of electric-powered drive for production forming of curved parts and tubes made of 16-gauge and lighter sheet metal.
Drive power for the SR48P is supplied by a heavy-duty, industrial quality gear reduction motor and roller chain directly to the gear train. The roll drive is controlled by a toggle action, shrouded foot pedal for instant forward and reverse action. The drive motor is equipped with an electromagnetic brake to prevent roll creep and over-forming.
Electrical and operator safety features include a full-length, front and back wire cable safety mechanism which instantly stops the rolls when tripped; two magnetic motor starters; fully enclosed electrical box with pilot light; insulated reinforced conduit for all wiring; and fully enclosed drive train. The rolls and gears are mounted in hardened bronze bushings for long life and precision operation.

Capacity, Mild Steel: 16 Gauge
1.6 mm
Maximum Forming Length: 49 in.
1244 mm
Diameter of Rolls: 3 in.
76 mm
Minimum Forming Radius: 1-1/2 in.
.38 mm
Wire Grooves: 3/8, 1/2, 5/8 in.
9.5, 12.7, 15.8 mm
Gearing Ratio: 4:01
Roll Speed: 22 rpm/17.28 sfpm
Motor – 230/640v, 3-phase, 60Hx: 3/4 hp
Dimensions, L x W x H: 77 x 29 x 50 in.
1956 x 737 x 1270 mm
Shipping Weight: 1100 lbs.
500 kg
