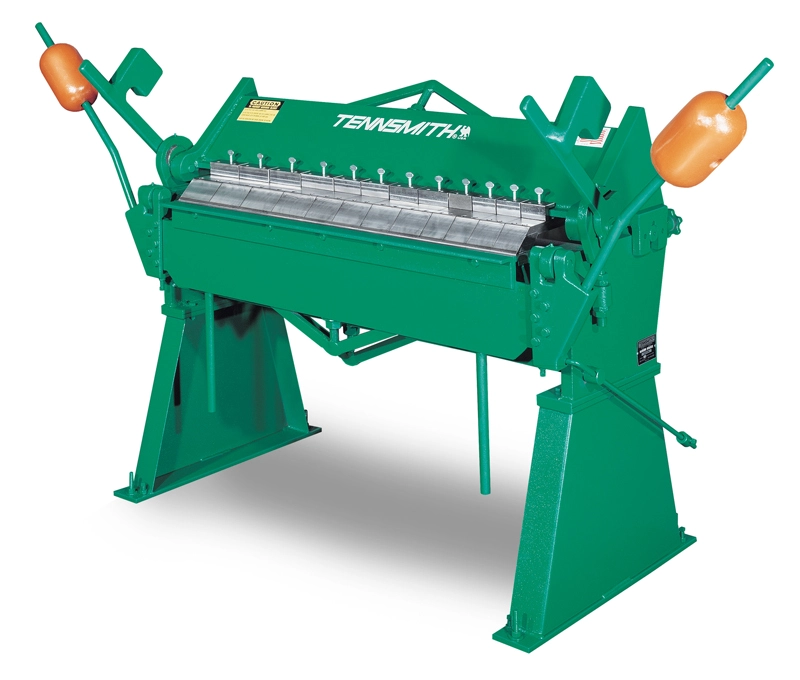

Tennsmith F6 Series

Tennsmith’s F6 Series box and pan brakes were designed to provide heavy-duty forming capability, along with the flexibility of removable 6-inch box depth fingers.
Product description
Tennsmith’s F6 Series box and pan brakes were designed to provide heavy-duty forming capability, along with the flexibility of removable 6-inch box depth fingers.
Ample clamping and easy-to-use nose bar adjustments allow for a quick-setting bend radius. Welded steel plate construction and heavy truss rods and braces provide strength and rigidity.
Leveling screws and lock nuts on the pedestals
Jack screws and tensioner bolts on the apron
Truss rods on the apron, base and upper beam
Fully adjustable counter balances to facilitate the bending process
Removable apron angle and insert permit 1/4-inch reverse bends in lighter material

Capacity, Mild Steel: 14 Gauge
2.0 mm
Capacity, Stainless Steel: 18 Gauge
1.25 mm
Bending Length: 120 in.
3048 mm
Maximum Lift Of Beam: 2-1/4 in.
57.0 mm
Front To Rear Beam Adjustment: 1/2 in.
12.7 mm
Maximum Depth Of Box: 6 in.
152.4 mm
Minimum Reverse Bend: 1/4 in.
6 mm
Minimum Flange In Capacity Material: 1 in.
25 mm
Finger Widths: 3, 4, 5 in.
76.3, 101.6, 127 mm
Dimensions, counterweights in place (L x W x H): 161 x 53 x 60 in.
4090 x 1347 x 1524 mm
Shipping Weight: 3675 lbs.
1670 kg
