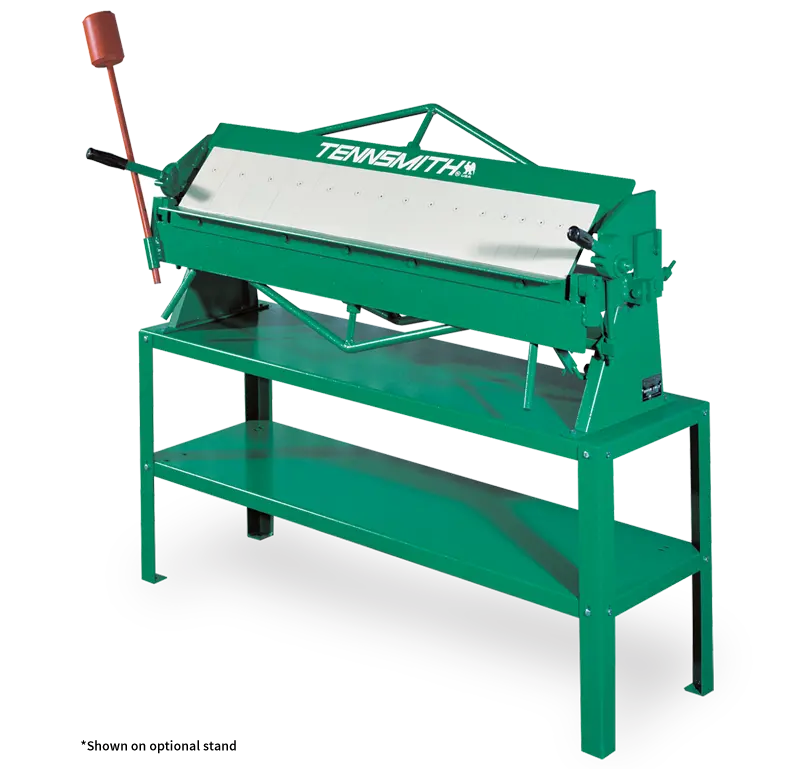

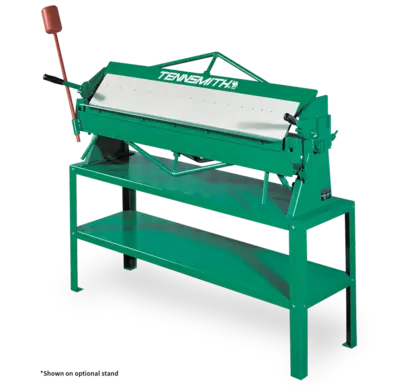

Tennsmith’s bench-mounted hand brakes are rugged, dependable USA-made tools that won’t break your budget.
Product description
TENNSMITH’s bench-mounted hand brakes provide an economical means of performing a wide range of sheet metal bending and forming operations. These brakes are of all-steel welded construction, readily adjustable and utilize bronze bearings at pivot points.
Capacity, Mild Steel: 22 Gauge
0.75 mm
Bending Length: 48-1/4 in.
1225 mm
Maximum Depth Of Box: –
Maximum Lift Of Beam: 7/8 in.
22.2 mm
Front To Rear Beam Adjustment: 1/4 in.
6 mm
Minimum Reverse Bend: 5/16 in.
7.9 mm
Minimum Flange In Capacity Material: 3/8 in.
9.5 mm
Finger Widths: –
Shipping Weight: 220 lbs.
100 kg
