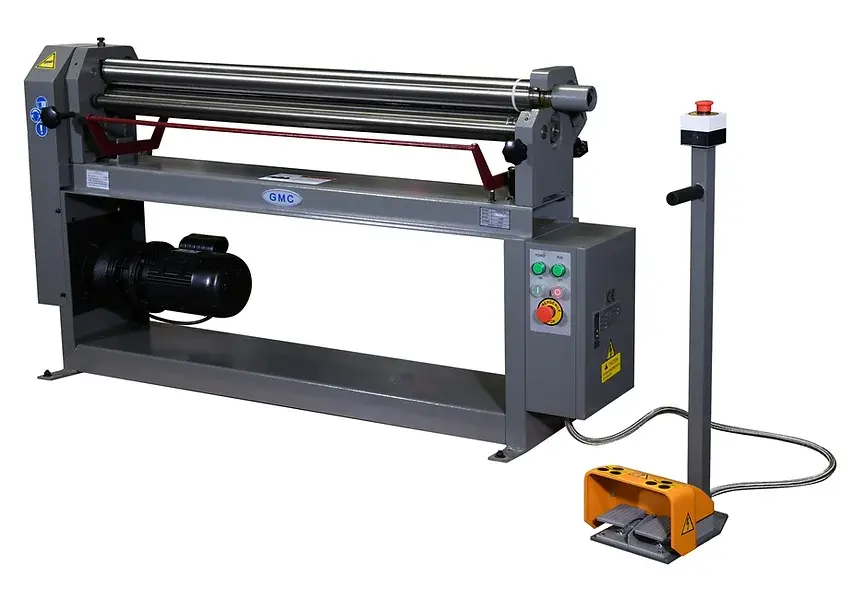

This machine has a 1 HP, rated at 220V or 440V, Three Phase. Min. roll bending dia.capacity 3.5″
Standard Included Equipment
Electrical cabinet
Removable safety foot pedal
Product description
Rolling capacity:
Mild steel
Stainless steel
Min. thickness capacity: 50″x16Ga.
50″x22Ga.
50″x26Ga.
Rolls size, length x dia
Min. roll bending dia.
capacity: 50”x 3”
3 1/2″
Rolls speed: 201” / min.
Rolls opening: ¼”
(3) grooves sizes: 5/16”, 3/8” , ½”
Main motor: 1 HP, 220V/440V, 3PH
Net weight: 828 LBS
Machine dimensions,
LxWxH: 68x28x47”
