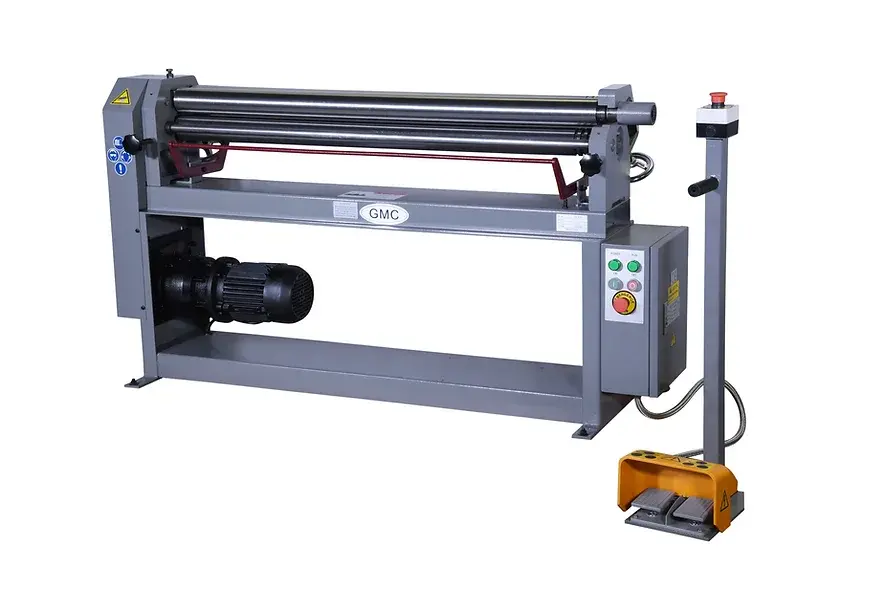

This machine has a 1.5 HP Motor, rated at 220V, Three Phase. Min. roll bending dia.capacity 3.5″
Standard Included Equipment
Electrical cabinet
Removable safety foot pedal
Product description
Rolling capacity:
Mild steel
Stainless steel
Min. thickness capacity: 50″x14Ga.
50″x18Ga.
50″x26Ga.
Rolls size, length x dia
Min. roll bending dia.
capacity: 50”x 3”
3 1/2″
Rolls speed: 201” / min.
Rolls opening: ¼”
(3) grooves sizes: 5/16”, 3/8” , ½”
Main motor: 1.5 HP, 220V, 3ph
Net weight: 928 LBS
Machine dimensions,
LxWxH: 68x29x48”
