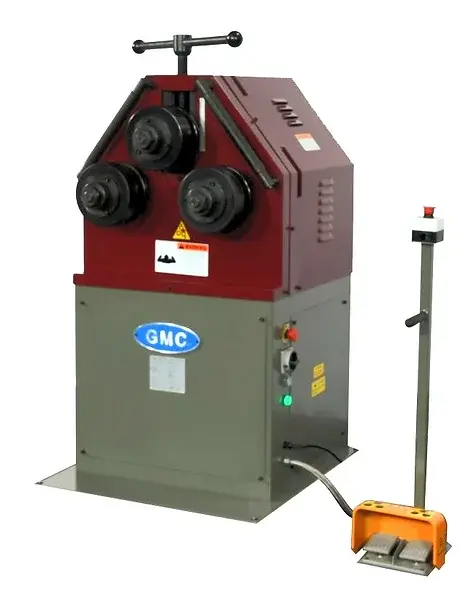

This machine has a 3 HP Motor, rated at 220V, three phase. Gear driven manual positioning. 2” Dia. of roller shaft, 7-1/2” roller Dia.
Product description
Specifications: Specifications
Model: PRB-55H-1PH
Roll Adjustment: Hydraulic Driven
Dia. of roller: 7-1/2”
Dia. of roller shaft: 2”
Roller speed: 16 RPM
Main Motor: 4 HP Single Phase
Prewired: 220VAC | 15A
Dimensions: 40in x 35in x 65in
Weight: 1,120 LBS
Oil Tank Capacity
(only fill up 90%): 7 Gal.
Recommended Hydraulic Oil: Texaco-Rando HD-68 Hydraulic Oil
Shell AW-68 Hydraulic Oil
34T-PRB55: ROLL SET FOR 3/4 INCH TUBING FOR GMC PRB-55 OR 55H
1T-PRB55: ROLL SET FOR 1 INCH TUBING FOR GMC PRB-55 OR 55H
114T-PRB55: ROLL SET FOR 1-1/4 INCH TUBING FOR GMC PRB-55 OR 55H
112T-PRB55: ROLL SET FOR 1-1/2 INCH TUBING FOR GMC PRB-55 OR 55H
2T-PRB55: ROLL SET FOR 2 INCH TUBING FOR GMC PRB-55 OR 55H
212T-PRB55: ROLL SET FOR 2-1/2 INCH TUBING FOR GMC PRB-55 OR 55H
34P-PRB55: ROLL SET FOR 3/4 INCH PIPE FOR GMC PRB-55 OR 55H
1P-PRB55: ROLL SET FOR 1 INCH PIPE FOR GMC PRB-55 OR 55H
114P-PRB55: ROLL SET FOR 1-1/4 INCH PIPE FOR GMC PRB-55 OR 55H
112P-PRB55: ROLL SET FOR 1-1/2 INCH PIPE FOR GMC PRB-55 OR 55H
2P-PRB55: ROLL SET FOR 2 INCH PIPE FOR GMC PRB-55 OR 55H
212P-PRB55: ROLL SET FOR 2-1/2 INCH PIPE FOR GMC PRB-55 OR 55H
