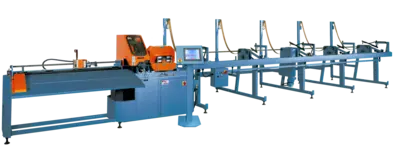

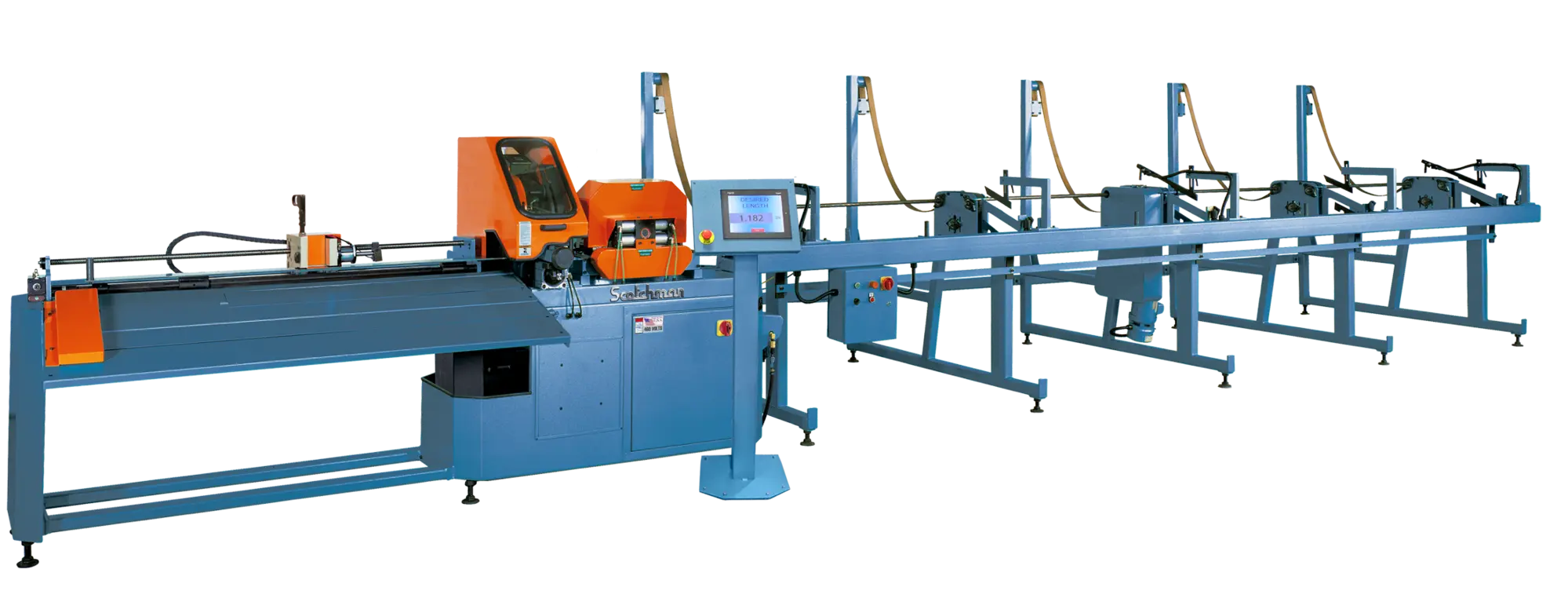

ROLLER FEED AUTOMATIC SAW
Fast & precise production saw ideal for high volume & long length applications that require clean accurate cuts. This fully automatic saw has touch screen controls, stores profile settings, and is designed to your specifications.
The CPO 315 RFA (Roll Feed Automatic) cold saw provides uninterrupted cutting on tubes, solids, and extrusions while supplying precise high quality cuts. This machine’s touch screen controls and newly added features decrease cycle times and make this saw faster & easier to operate than ever before! The RFA now has the ability to store profile settings such as speeds & feeds, which make changing material sizes even faster. This machine is ideal for high volume and long length applications that require clean accurate cuts.
The RFA saw comes equipped with either a supply table or a full bundle loading attachment. Both systems allow the saw to automatically load, trim, cut, and sort part lengths up to 120″ and hold ±0.006″ tolerance in length of tubing up to 3″ in diameter while continually providing a squareness tolerance of ±0.002″/diameter inch.
With optional equipment you can feed directly into a deburring machine or acquire form jaws that can handle thin wall applications without distortion. The American made Scotchman CPO 315 RFA Saw is available in ferrous and nonferrous models, designed to your specifications, and comes with a 2-year warranty.
Product description
Fully automatic cycle (available In ferrous or non-ferrous)
Touch screen controls actuate the complete cycle
Interlocking safety hood
Emergency stop button
Automatic loading and trim cut of each new bar
Automatic tube ejection
Trim and remnant gate
Clamping both sides of blade – highest quality, burr-free cuts
Blade guides for accurate tolerances (ferrous model)
Adjustable stroke control on the saw head
Adjustable down feed control on the saw head for feed rate
Length scale in both inches and metric
Digital read-out for quick and easy fine adjustment of length setting
Piece counter
Mist coolant lubrication system
Infeed table type: Bundle Loader or Supply Track
One saw blade
One gallon coolant
Complies with ANSI B11.10 safety standards
Infeed table type: Bundle Loader or Supply Track
Warranty: Two years on parts
Made in USA
Cutting Speeds
(must specify when ordering): Motor Rate:
5 hp
CPO 315 RFA NF (non-ferrous): Motor Rate:
5 hp
Must Specify Infeed Table Type ↓: Must Specify Infeed Table Type ↓
